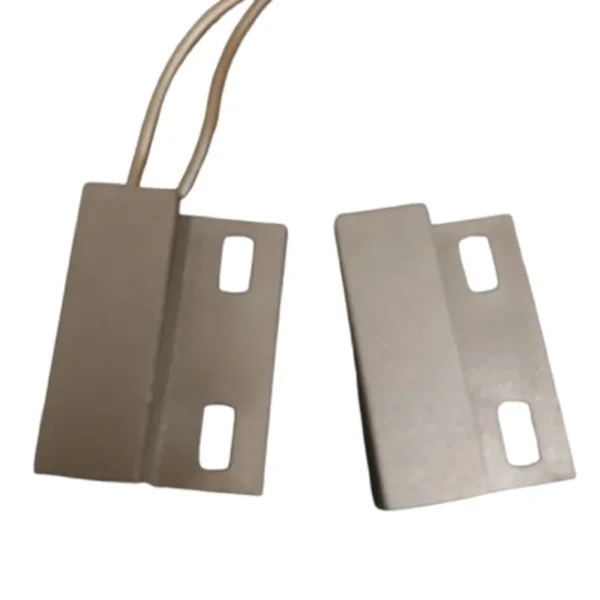

Big Flange Mount Contact Magnetic Reed Switches NO BR

Big Flange Mount Contact Magnetic Reed Switches NO BR

Name: Magnetic Reed Switches
Brand: 1 LEAP Technologies
Price: 120 INR
Availability: InStock

130.0 INR/Piece

Get a Price/Quote

Product Details:

Mechanical Life Over 10 million cycles Seconds
Temperature Range -40 C to +85 C Celsius (oC)
Number of Module 1
Max. Current 0.5 A Ampere (amp)
Protection Level IP60
Product Type Magnetic Reed Switches
Contact Resistance 0.1 Ohm (Ω)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Big Flange Mount Contact Magnetic Reed Switches NO BR Price And Quantity

Price 130.0 INR/Piece
Minimum Order Quantity 5 Unit

Operate Distance 15 mm
Model Name/Number 1 LEAP
Switch Configuration SPST
Switch Type NO
Contact Form NO
Usage/Application Industrial

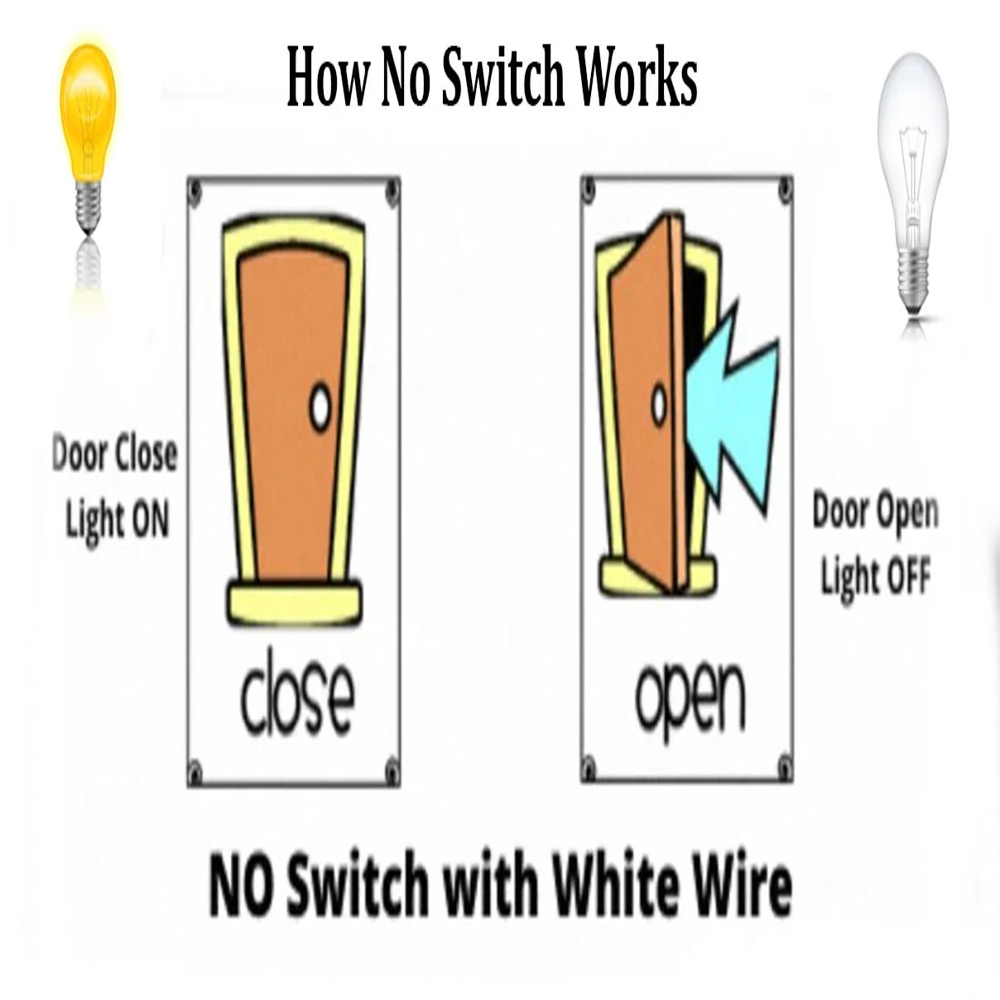

Use Case Door sensor

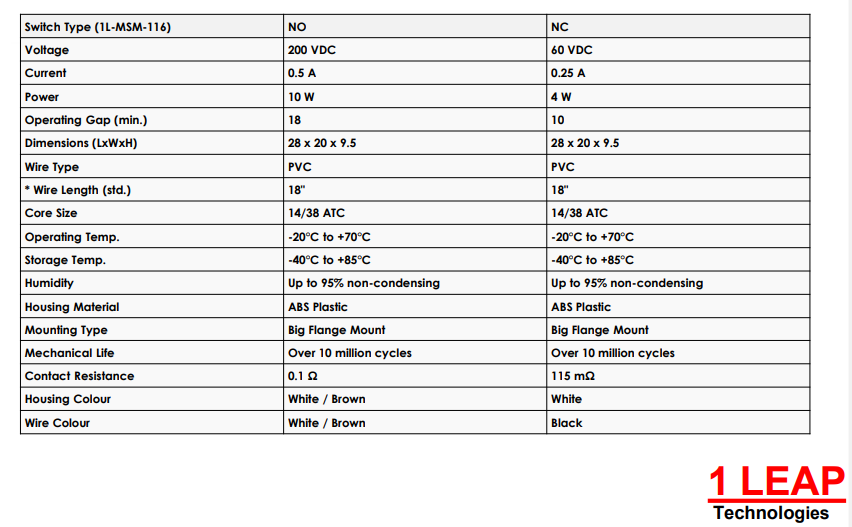

Big Flange Mount Contact Magnetic Reed Switches NO BR Product Specifications

Weight 100 Grams (g)
Contact Resistance 0.1 Ohm (Ω)
Cable Type Wired
Max. Current 0.5 A Ampere (amp)
Protection Level IP60
Max. Voltage 200 VDC Volt (V)
No Of Poles Single Pole
Warranty 1 Year
Color White
Material ABS Plastic
Number of Module 1
Product Type Magnetic Reed Switches
Mechanical Life Over 10 million cycles Seconds
Frequency 50 Hertz (HZ)
Temperature Range -40 C to +85 C Celsius (oC)
Mounting Type Surface Mount, Recessed Mount
Size Medium
Operating Temperature -20 C to +70 C Celsius (oC)

Operate Distance 15 mm
Model Name/Number 1 LEAP
Switch Configuration SPST
Switch Type NO
Contact Form NO
Usage/Application Industrial
Use Case Door sensor

Big Flange Mount Contact Magnetic Reed Switches NO BR Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

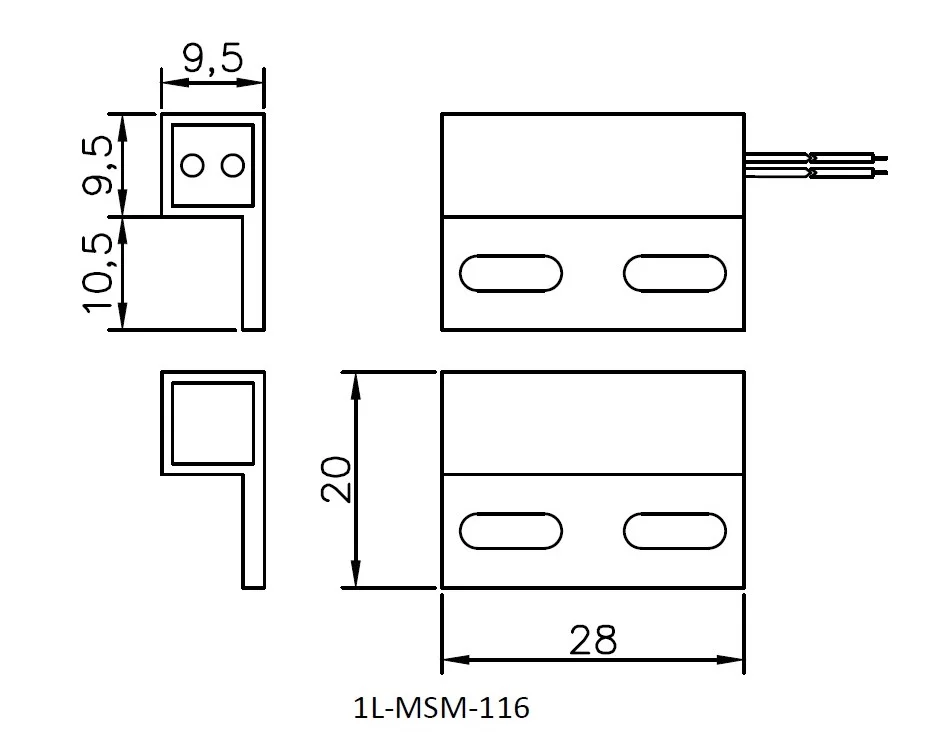

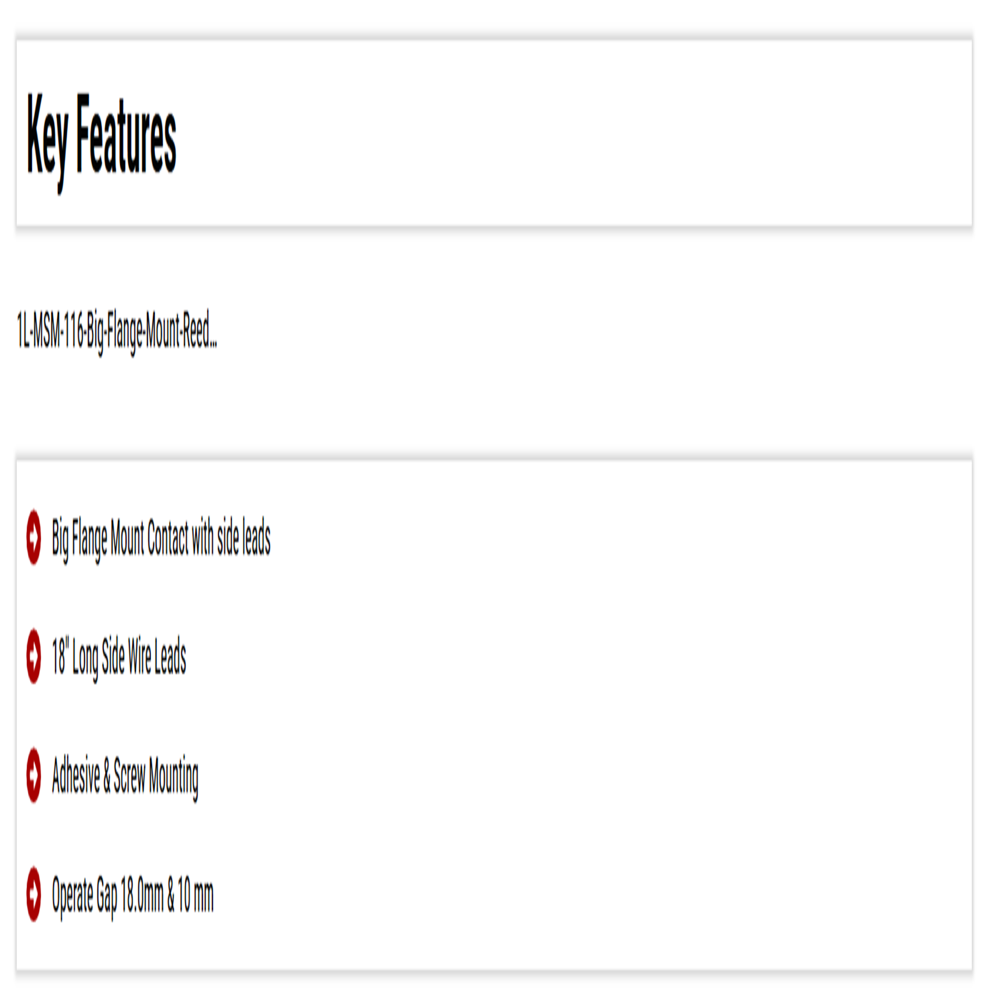

1L- MSM-116 Big Flange Surface Mount Magnetic Switch is produced for the design in magnetic sensing. The large operational gap (18 mm for NO, 10 mm for NC) provides the freedom of placement without the need for ideal positioning.
