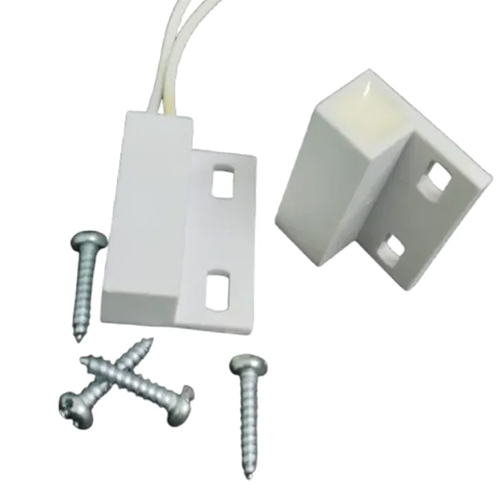

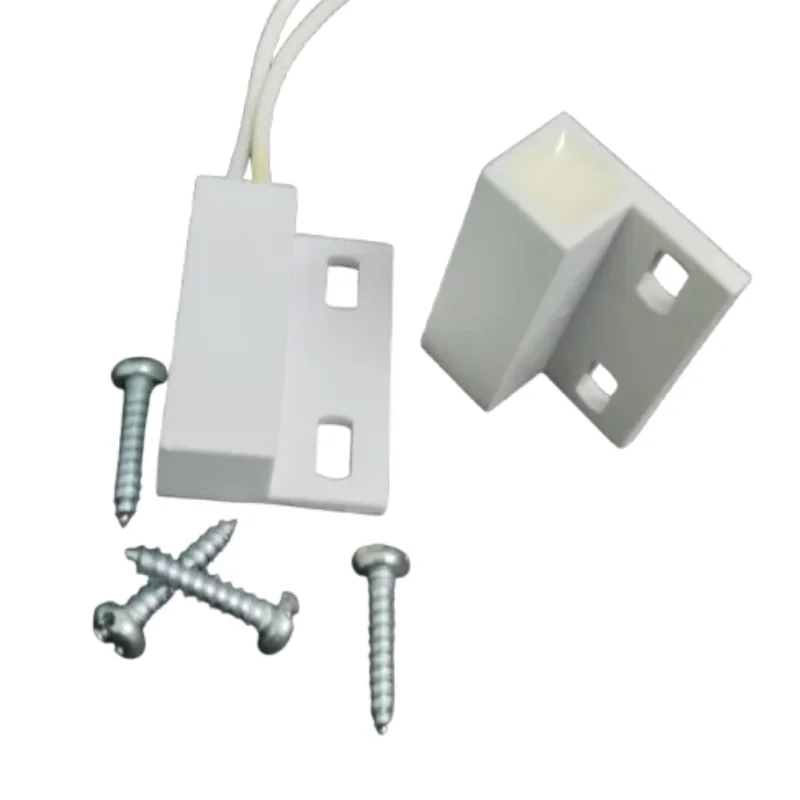

Big Flange Mount Magnetic Reed Switches NO

Big Flange Mount Magnetic Reed Switches NO

130.0 INR/Piece

Get a Price/Quote

Product Details:

Rated Voltage 200 VDC Volt (V)
Automation Grade Automatic
Response Time 1.0 ms Seconds
Finish Type Glossy
Circuit Type Normally Open (NO)
Mechanical Life >1,000,000 operations Years
Protection Level IP65
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Big Flange Mount Magnetic Reed Switches NO Price And Quantity

Price 130.0 INR/Piece
Minimum Order Quantity 6 Piece

Contact Form SPST (Single Pole Single Throw)
Switch Type Reed Magnetic Contact Switch
Contact Power Rating 10W max.
Storage Temperature -25C to +85C
Application Security Alarm, Door/Window Sensors, Industrial Automation
Polarity Non-polarized
Distance (Operating Gap) 15mm
Wire Length 300mm standard (customizable)

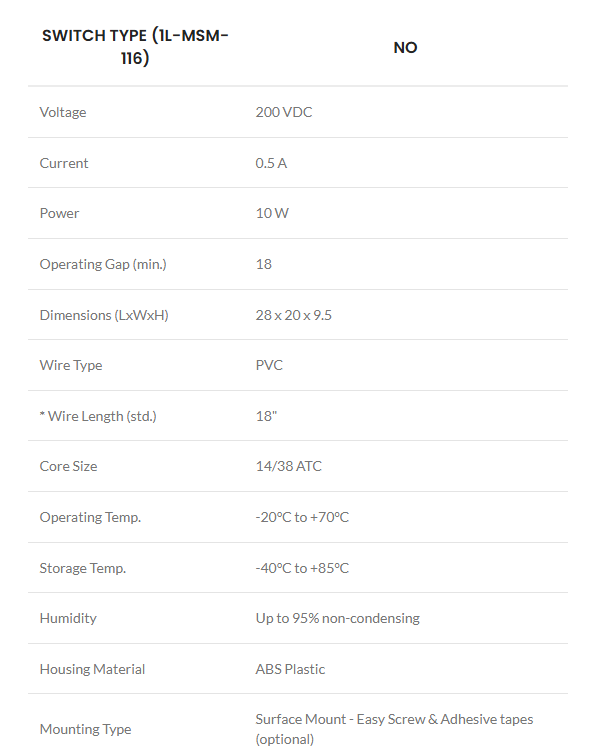

Big Flange Mount Magnetic Reed Switches NO Product Specifications

Rated Voltage 200 VDC Volt (V)
Product Type Magnetic Reed Switch
Insulation Resistance NA

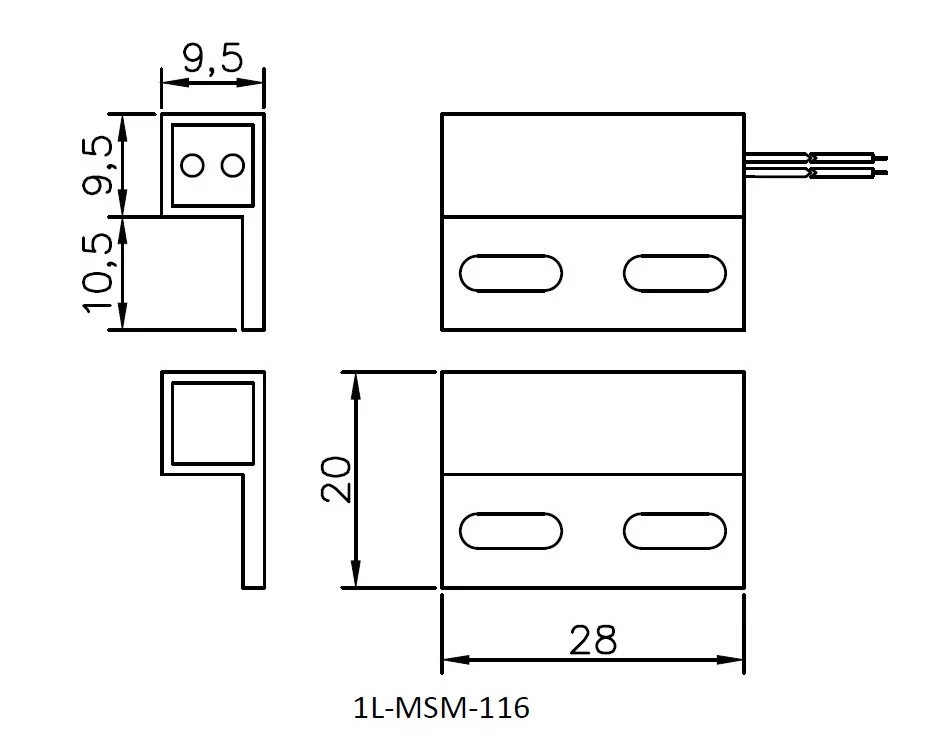

Size 45mm x 13mm x 9mm (approx.)
Automation Grade Automatic
Stoke 10mm (typical)
Warranty 1 Year
Weight 100 Grams (g)
Current Rating 0.5A
Circuit Type Normally Open (NO)
Contact Resistance 0.1 Ohm ()
Finish Type Glossy
Cable Type Wire
Mechanical Life >1,000,000 operations Years
Protection Level IP65
Response Time 1.0 ms Seconds
Material ABS Plastic
Temperature Range -40 C to +85 C Celsius (oC)
Max. Voltage 200 VDC Volt (V)
No Of Poles Single Pole
Mounting Type Screw Mount
Operating Temperature -20 C to +70 C Celsius (oC)
Number of Module 1
Color White
Max. Current 0.5 A Ampere (amp)

Contact Form SPST (Single Pole Single Throw)
Switch Type Reed Magnetic Contact Switch
Contact Power Rating 10W max.
Storage Temperature -25C to +85C
Application Security Alarm, Door/Window Sensors, Industrial Automation
Polarity Non-polarized
Distance (Operating Gap) 15mm
Wire Length 300mm standard (customizable)

Big Flange Mount Magnetic Reed Switches NO Trade Information

Supply Ability 100 Piece Per Month
Delivery Time 4 Days

Product Description

The 1L-MSM-116 Surface Mount Magnetic Switch is a high-quality, industrial-grade sensing element designed for applications that demand accurate magnetic detection, long service life, and multiple mounting options. With its big flange mount structure, durable PVC wiring, and strong ABS housing, this switch is an ideal for security systems, industrial automation, door/window monitoring, and custom magnetic sensing solutions.

High Performance in Harsh Environments

Engineered with ABS plastic housing, silver alloy contacts, and an IP65 protection rating, these magnetic reed switches withstand challenging environments, offering reliable performance in both indoor and outdoor installations.

Flexible Installation and Customization

Each switch comes with a standard 300mm wire length, which can be customized according to your specific requirement. Screw-mount design ensures stable and secure installation, while the compact size fits diverse applications.

FAQ's of Big Flange Mount Magnetic Reed Switches NO:

Q: How do I install the Big Flange Mount Magnetic Reed Switch NO?

A: The switch features a screw-mount design for easy and secure installation. It should be aligned with the magnet at a distance of up to 15mm (operating gap) on doors, windows, or machinery for optimal detection.

Q: What are the main applications for this reed switch?

A: These switches are commonly used in security alarms, door and window sensors, and industrial automation systems to detect the opening or closing of a point of entry or the presence of a magnetic field.

Q: What is the maximum contact rating and voltage supported?

A: The switch supports a maximum contact power rating of 10W, with a rated voltage of up to 200 VDC and a maximum current of 0.5A, making it suitable for various low-power signaling applications.

Q: Can I customize the wire length for my specific installation needs?

A: Yes, although the standard wire length is 300mm, custom lengths can be manufactured upon request to accommodate different installation requirements.

Q: What is the typical mechanical life of the switch?

A: The mechanical life of this reed switch exceeds 1,000,000 operations, providing long-lasting durability and reliable performance in repetitive-use applications.

Q: Where can these switches be used considering the protection level?

A: With an IP65 protection rating, these switches are suitable for both indoor and outdoor locations, offering resistance to dust and water ingress.

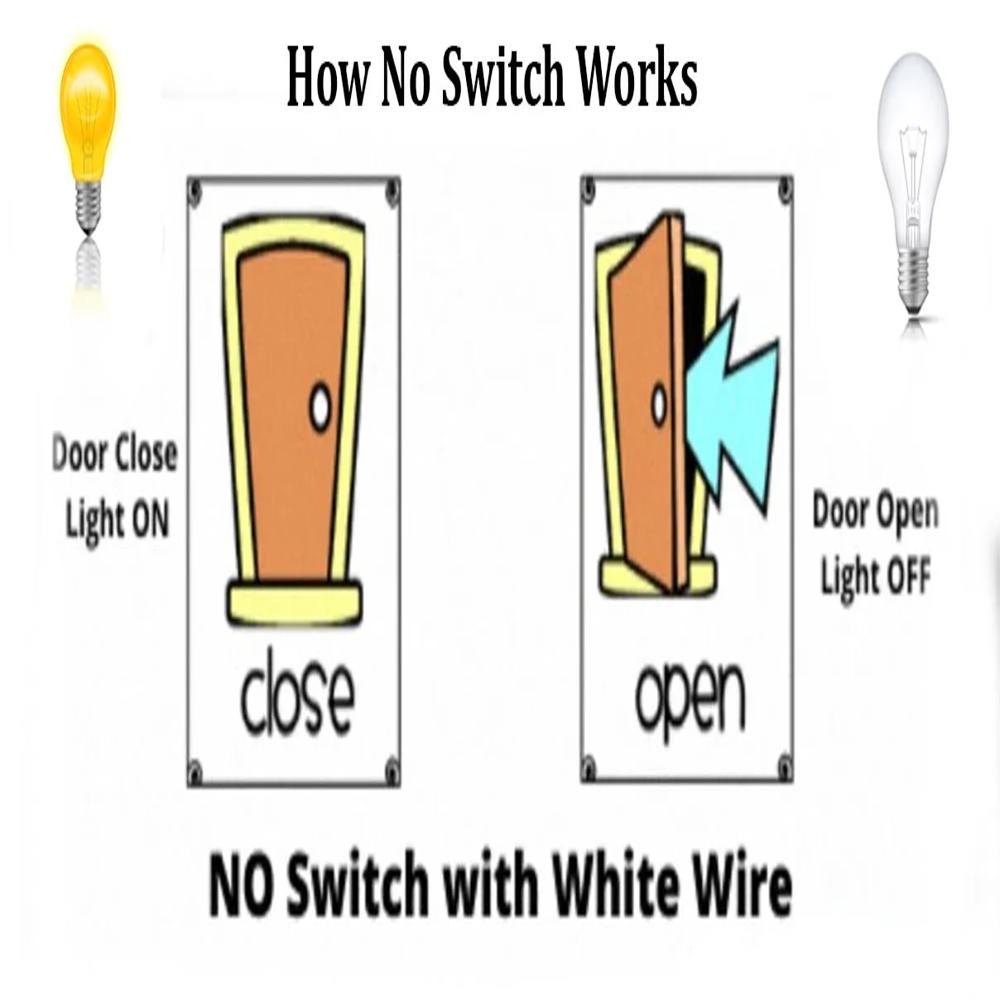

Q: What benefits does the normally open (NO) contact configuration provide?

A: The NO (Normally Open) configuration ensures that the circuit remains open until the magnet is in proximity, making it ideal for security and automation purposes where status monitoring is required.
