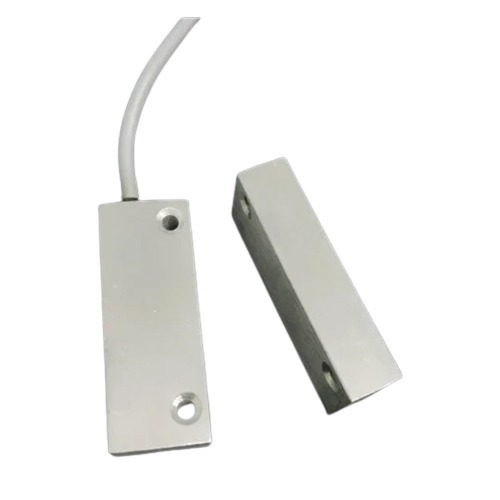

Rugged Aluminium Housing Magnetic Reed Switches
390.0 INR/Piece
Product Details:
- Max. Current 0.5A Ampere (amp)
- Temperature Range 40 C to +85 C Celsius (oC)
- Rated Voltage 200 VDC Volt (V)
- Mechanical Life 1,000,000 operations Years
- Circuit Type Normally Open (NO)
- Protection Level IP67
- Automation Grade Manual / Automatic
- Click to view more
X
Rugged Aluminium Housing Magnetic Reed Switches Price And Quantity
- 2 Piece
- 390.0 INR/Piece
- Yes
- 0.5A (Max.)
- 250V DC (Min.)
- 200Hz (Max.)
- 200V (Max.) DC / AC
- Door, Window, Alarm System, Security Devices
- 10W (Max.)
- SPST (Single Pole Single Throw)
- 300mm (Standard)
- -40C to +80C

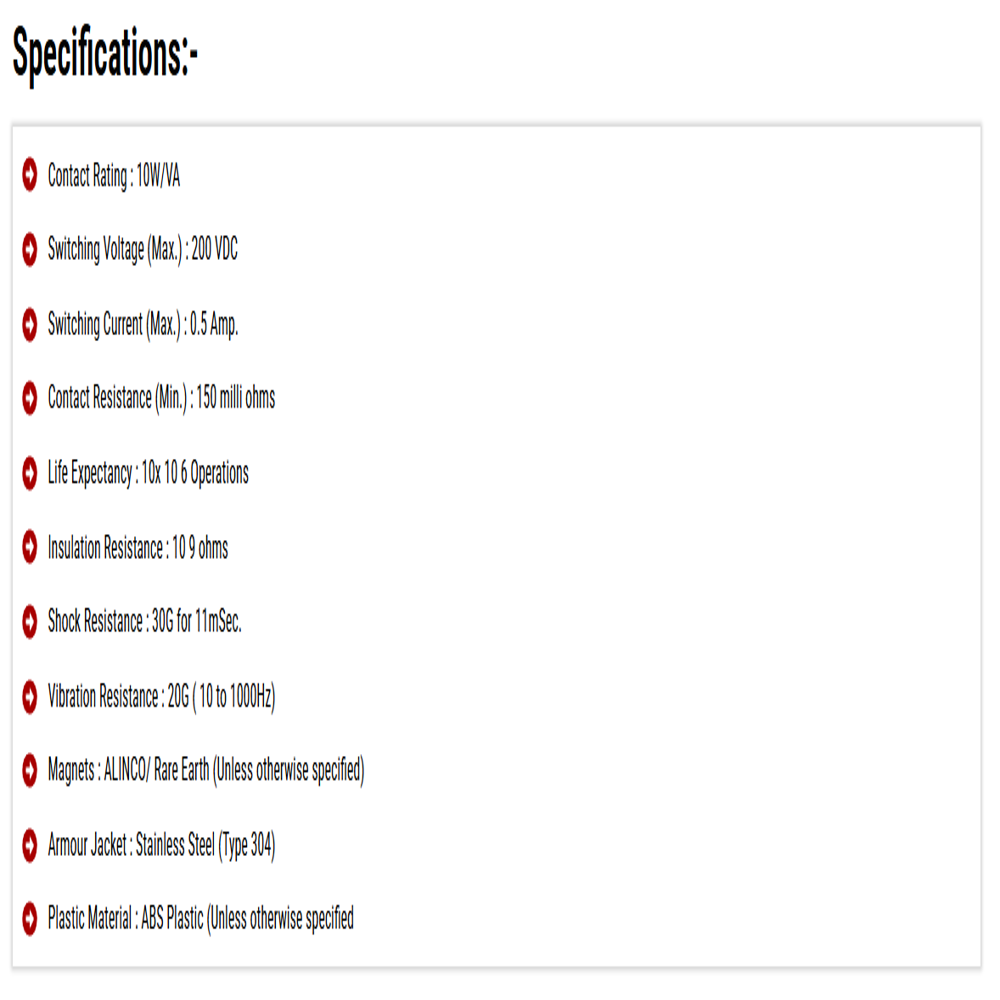

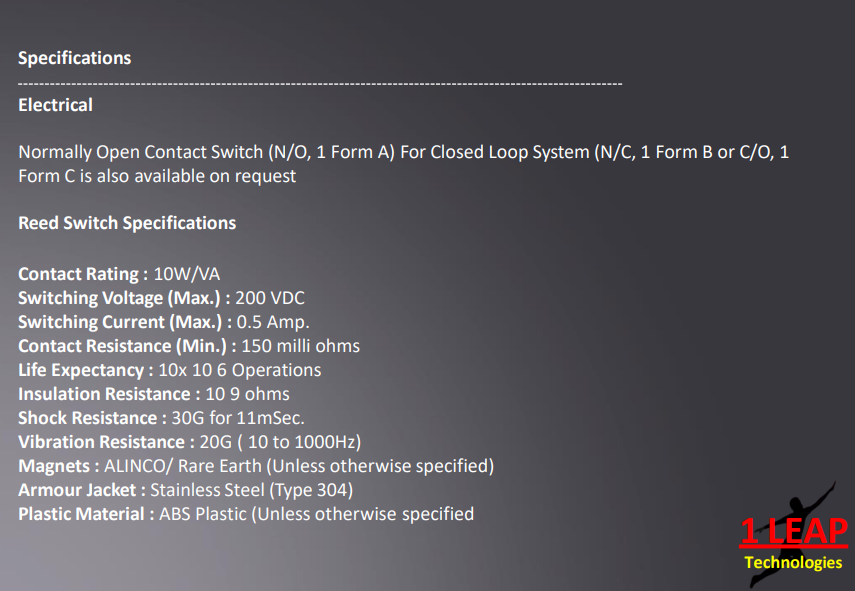

Rugged Aluminium Housing Magnetic Reed Switches Product Specifications
- White
- Moulded
- Single
- 0.2ms (Max.) Seconds
- Surface / Screw Mountable
- ABS Plastic
- 100 Grams (g)
- 1000 M (Min.) at 500V DC
- -20 C to +70 C Celsius (oC)
- Manual / Automatic
- Magnetic Reed Switch
- 0.1 Ohm ()
- <10mm (Actuation Distance)

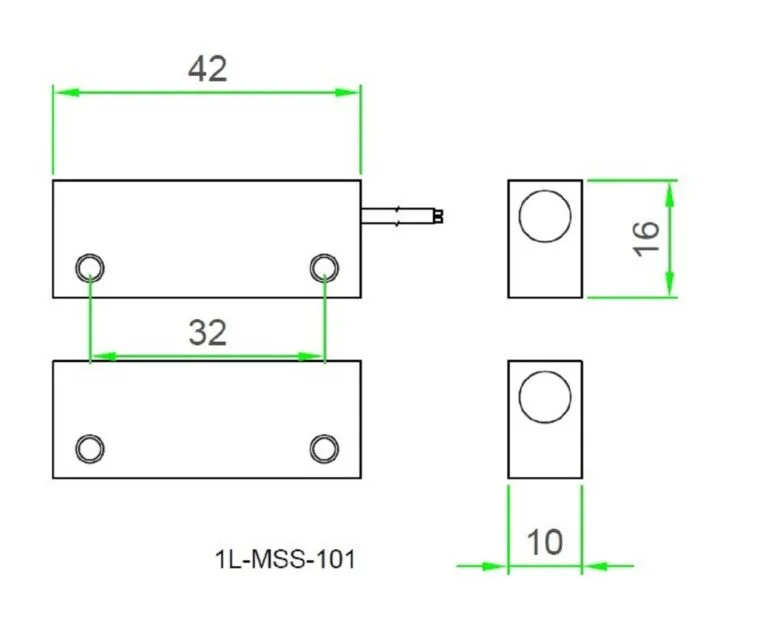

- Approx. 25mm x 6mm
- Single Pole
- 1,000,000 operations Years
- IP67
- Normally Open (NO)
- 40 C to +85 C Celsius (oC)
- 0.5A Ampere (amp)
- 200 VDC Volt (V)
- 200V DC Volt (V)
- Wire
- 0.5A
- 1 YEAR
- Yes
- 0.5A (Max.)
- 250V DC (Min.)
- 200Hz (Max.)
- 200V (Max.) DC / AC
- Door, Window, Alarm System, Security Devices
- 10W (Max.)
- SPST (Single Pole Single Throw)
- 300mm (Standard)
- -40C to +80C
Rugged Aluminium Housing Magnetic Reed Switches Trade Information
- 100 Piece Per Month
- 7 Days
Product Description
The 1L-MSS-101 Magnetic Switch from 1 LEAP Technologies is a superior magnetic sensing solution made for demanding conditions, industrial environments, and high-security applications. Customized with hard construction and accurate reed technology, this model ensures reliability, long service life, and consistent switching performance, even in hard operational settings.
Durable & Versatile Security Solution
Engineered with aluminium housing and ABS plastic, these magnetic reed switches are built to withstand harsh environments. Their IP67 protection guards against dust and water, while the small size (25mm x 6mm) and moulded finish make installation straightforward. Excellent insulation and contact resistance ensure high reliability in alarm systems, access control, and automation.
Reliable Performance in Critical Applications
With a maximum switching voltage of 200V AC/DC and current of 0.5A, this switch delivers dependable performance in residential and commercial security systems. The high mechanical life (over a million operations) and swift response time enhance safety and system responsiveness in door, window, and other intrusion detection installations.
FAQ's of Rugged Aluminium Housing Magnetic Reed Switches:
Q: How do I install the Rugged Aluminium Housing Magnetic Reed Switch?
A: The switch is designed for easy installation using either surface or screw mounting methods. It comes with a standard 300mm wire length for flexible connections. Secure the switch body onto your target surface-such as a door or window frame-ensuring the actuation distance between magnet and switch is less than 10mm for reliable operation.Q: What applications are ideal for this reed switch?

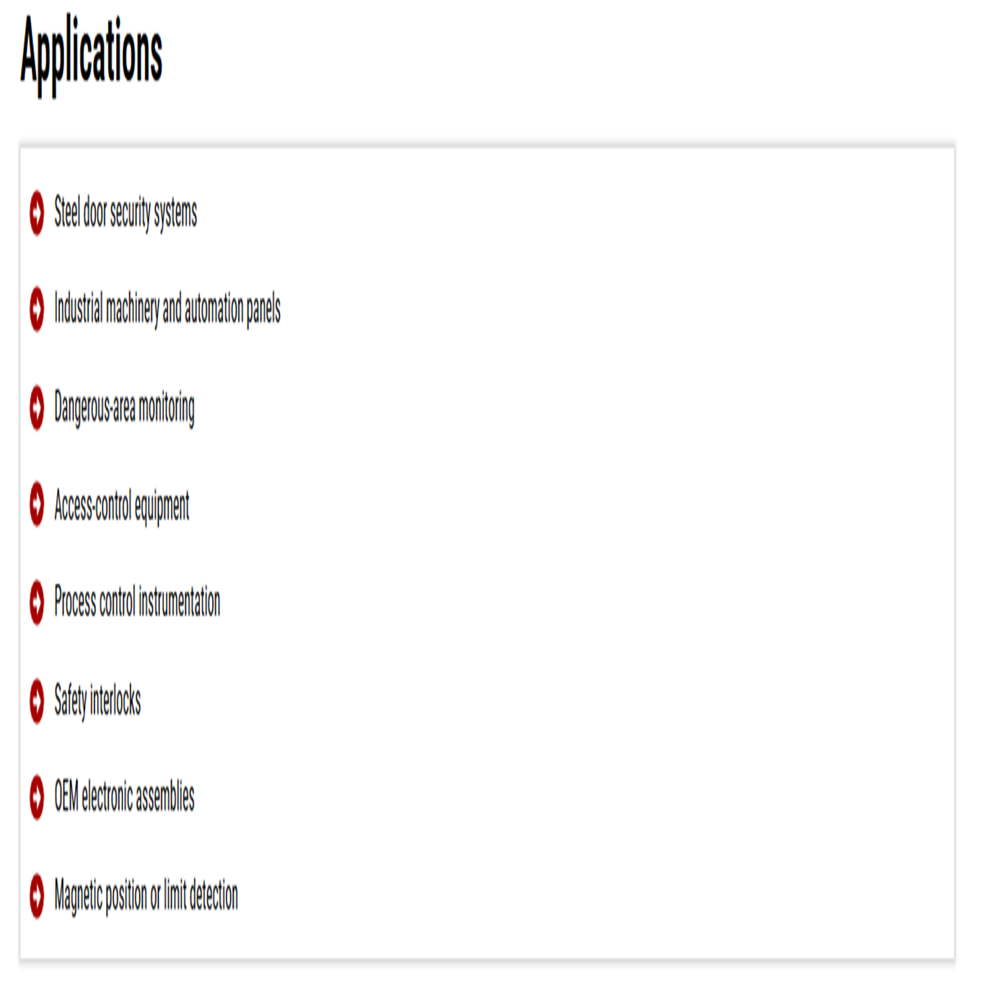

A: This magnetic reed switch is suitable for security applications including doors, windows, alarm systems, as well as broader uses in automation and security devices. Its robust, IP67-rated housing makes it particularly appropriate for locations exposed to dust and moisture.Q: When should I use a Normally Open (NO) reed switch configuration?
A: A Normally Open (NO) contact form is ideal when you want the circuit to remain open (off) until the magnet is brought close to the switch, closing the circuit. This configuration is typically chosen for security alarms or status monitors on doors and windows.Q: Where are these switches typically mounted in security setups?
A: These reed switches are typically mounted on the stationary frame of a door or window, while the magnet is mounted on the moving part. This allows the switch to detect opening and closing motions accurately, triggering alarms or other automated responses.Q: What is the benefit of the switch's IP67 protection rating?
A: The IP67 rating indicates excellent resistance against dust and water ingress, allowing reliable operation even in outdoor or harsh indoor environments. This ensures the switch will maintain function and longevity in a wide range of conditions.Q: How can I ensure the longest lifespan from my reed switch?
A: To maximize the mechanical life (over 1,000,000 operations), operate the switch within its specified electrical and temperature limits-switching voltage up to 200V, maximum current of 0.5A, and within the -20C to +70C range. Proper installation and avoiding physical damage will also contribute to its longevity.Tell us about your requirement
