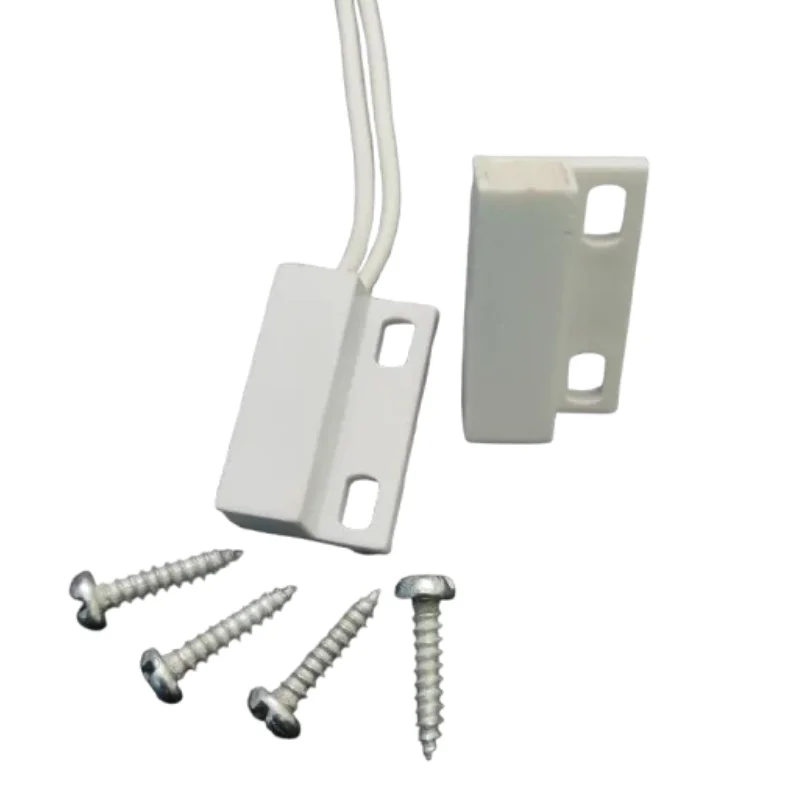

surface mount design with side leads NO Switch

surface mount design with side leads NO Switch

130.0 INR/Piece

Get a Price/Quote

Product Details:

Number of Module 1
Protection Level IP60
Temperature Range -40 C to +85 C Celsius (oC)
Response Time 0.1 Seconds
Max. Current 0.5 A Ampere (amp)
Mechanical Life Over 10 million cycles Years
Product Type NO
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

surface mount design with side leads NO Switch Price And Quantity

Minimum Order Quantity 5 Piece
Price 130.0 INR/Piece

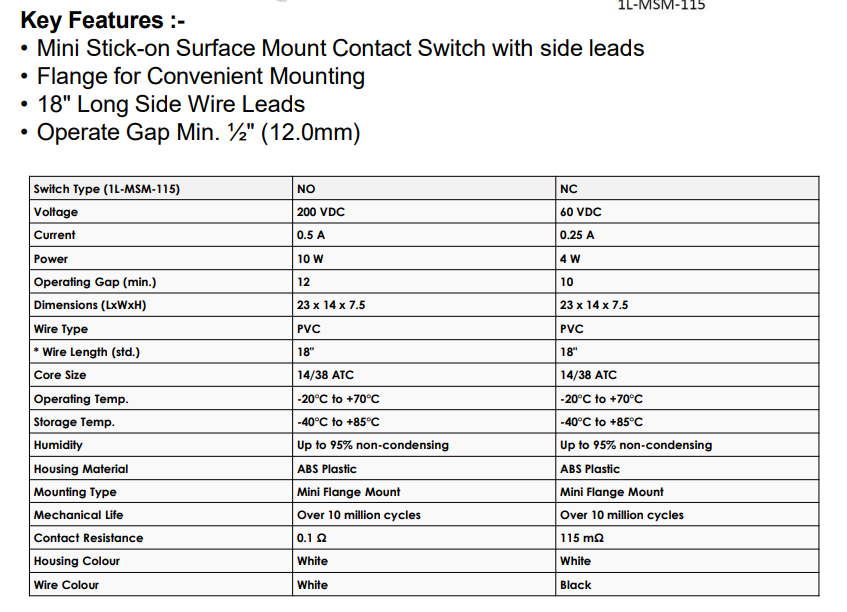

surface mount design with side leads NO Switch Product Specifications

Current Rating 0.5 A
Mechanical Life Over 10 million cycles Years
Cable Type PVC
Operating Temperature -20 C to +70 C Celsius (oC)
Max. Current 0.5 A Ampere (amp)
Max. Voltage 200 VDC Volt (V)
Product Type NO
Warranty 1 Year
Response Time 0.1 Seconds
Size Medium
Contact Resistance 0.1 Ohm ()
Mounting Type Surface
Temperature Range -40 C to +85 C Celsius (oC)
Material ABS Plastic
Protection Level IP60
Number of Module 1
No Of Poles Single Pole
Weight 100 Grams (g)
Color White

surface mount design with side leads NO Switch Trade Information

Delivery Time 3 Days

Product Description

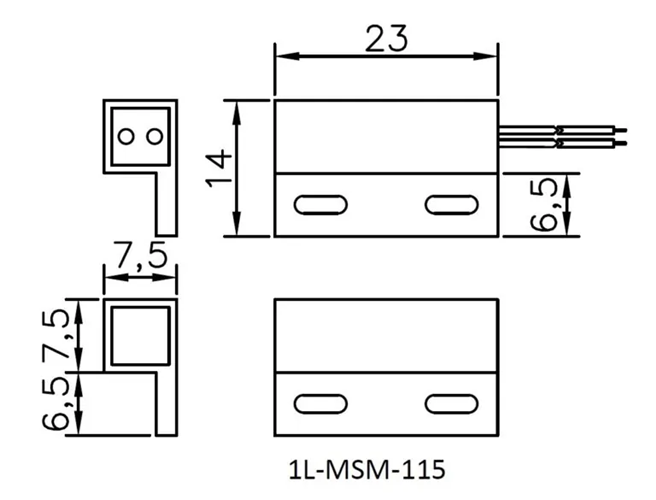

The 1L-MSM-115 Surface Mount Magnetic Reed Switch by 1 LEAP Technologies is a flange-mount magnetic switching device designed specifically for accurate open-close detection and position monitoring in surface-mounted installations. This model is made to provide the stable switching performance, controlled operating gaps, and long-term reliability in applications where accurate magnetic activation is required.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Magnetic Reed Switch' category

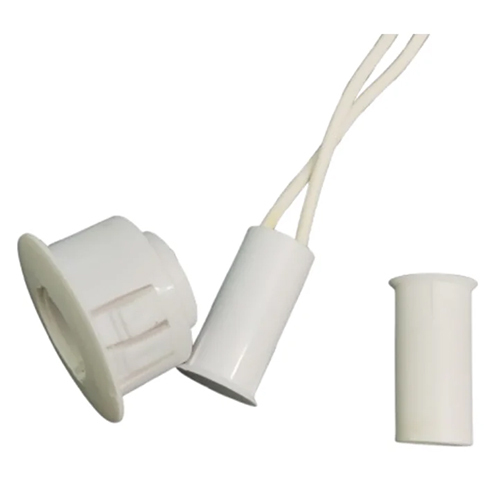

Dia with Adaptor Holder Magnetic Reed Switch Price : 225.0 INR/Piece Minimum Order Quantity : 5 Color : White Material : ABS Plastic Protection Level : IP67 Mounting Type : Panel Mount Contact Resistance : 150 milli ohms Ohm () Size : 44mm x 10mm x 6mm (approx.) Warranty : 1 YEAR Product Type : Magnetic Reed Switch Max. Current : 0.5 Amp. Ampere (amp) Mechanical Life : 1,000,000 operations min. Years Weight : 100 Grams (g) No Of Poles : Single Pole Max. Voltage : 200 VDC Volt (V) Number of Module : 1 Cable Type : Wire Frequency : 20G ( 10 to 1000Hz) Hertz (HZ) Insulation Resistance : 10 9 ohms Response Time : 1 ms Seconds Operating Temperature : 20 C to +70 C Celsius (oC) Temperature Range : 40 C to +85 C Celsius (oC) Circuit Type : Normally Open (NO) Rated Voltage : 200 VDC Volt (V) Current Rating : 0.5A Max

Send Inquiry

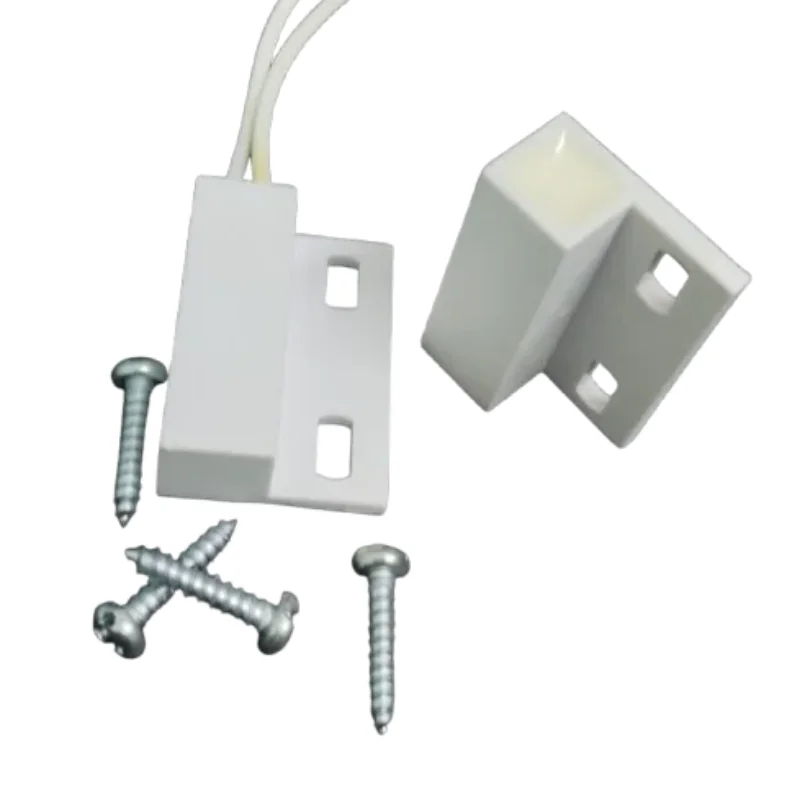

Big Flange Mount Contact Magnetic Reed Switch NO Price : 130.0 INR/Piece Minimum Order Quantity : 1 Color : White Material : ABS Plastic Protection Level : IP60 Mounting Type : Surface Mount Contact Resistance : 0.1 Ohm () Size : Medium Warranty : 1 Year Product Type : Wired Magnetic Switch Door Sensor Max. Current : 0.5 A Ampere (amp) Mechanical Life : Over 10 million cycles Seconds Weight : 100 Grams (g) No Of Poles : Single Pole Max. Voltage : 200 VDC Volt (V) Number of Module : 1 Cable Type : Wired Frequency : 50 Hertz (HZ) Response Time : 0.1 Seconds Operating Temperature : 20 C to +70 C Celsius (oC) Temperature Range : 40 C to +85 C Celsius (oC) Rated Voltage : 200 VDC Volt (V)

Send Inquiry

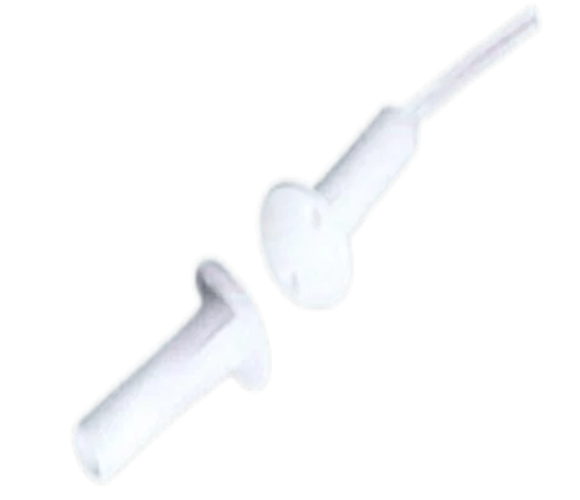

Collar Flange Recessed Mount Magnetic Reed Switch Price : 230.0 INR/Piece Minimum Order Quantity : 5 Color : White Material : ABS Plastic Protection Level : IP60 Mounting Type : Surface Mount Contact Resistance : 150 milli ohms Ohm () Size : Medium Warranty : 1 Year Product Type : Magnetic Reed Switches Max. Current : 0.5 Amp. Ampere (amp) Mechanical Life : Over 10 million cycles Years Weight : 100 Grams (g) No Of Poles : Single Pole Max. Voltage : 200 VDC Volt (V) Number of Module : 1 Cable Type : wired Frequency : 50 Hertz (HZ) Insulation Resistance : 10 9 ohms Response Time : 0.1 Seconds Circuit Type : NO

Send Inquiry

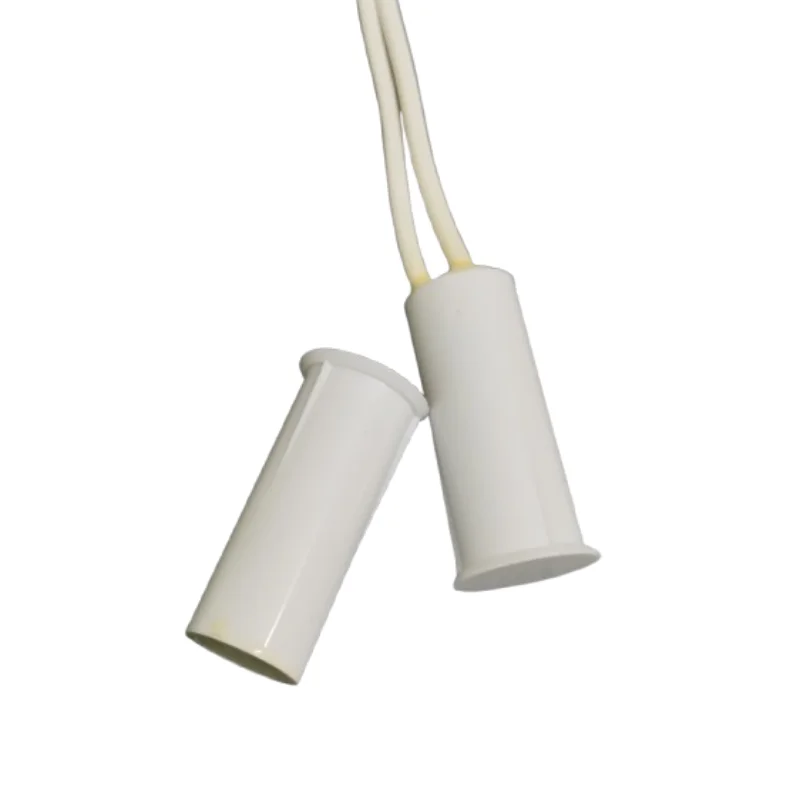

Long Wire Leads Recessed Mount Magnetic Switch Price : 230.0 INR/Piece Minimum Order Quantity : 5 Color : White Material : ABS Plastic Protection Level : IP60 Mounting Type : Surface mount Contact Resistance : 150 milli ohms Ohm () Size : Medium Warranty : 1 Year Product Type : Magnetic Door Contact Switch Max. Current : 0.25 A Ampere (amp) Mechanical Life : Over 10 million cycles Seconds Weight : 100 Grams (g) No Of Poles : Single Pole Max. Voltage : 200 VDC Volt (V) Cable Type : Wired Frequency : 50 Hertz (HZ) Insulation Resistance : 10 9 ohms Circuit Type : NO Current Rating : 0.5 Amp
