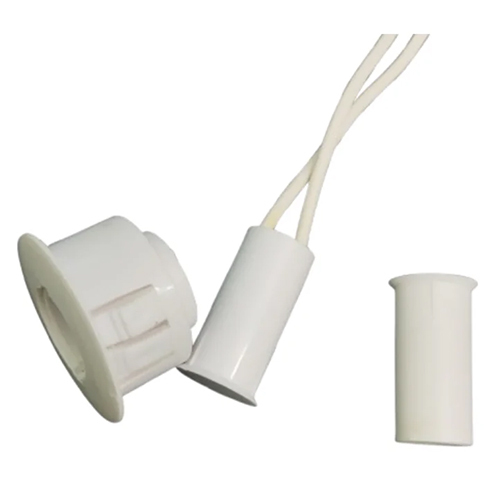

Dia with Adaptor Holder Magnetic Reed Switch
225.0 INR/Piece
Product Details:
- Mechanical Life 1,000,000 operations min. Years
- Temperature Range -40 C to +85 C Celsius (oC)
- Protection Level IP67
- Circuit Type Normally Open (NO)
- Number of Module 1
- Automation Grade Automatic
- Max. Current 0.5 Amp. Ampere (amp)
- Click to view more
X
Dia with Adaptor Holder Magnetic Reed Switch Price And Quantity
- 5 Piece
- 225.0 INR/Piece
- 10W Max
- 10~55Hz, 1.5mm amplitude
- Class A
- 300mm
- 30G min.
- 35%~85% RH
- Thermoplastic ABS
- 100V DC/AC Max
- SPST (Single Pole Single Throw)
- Permanent Magnet (Included)

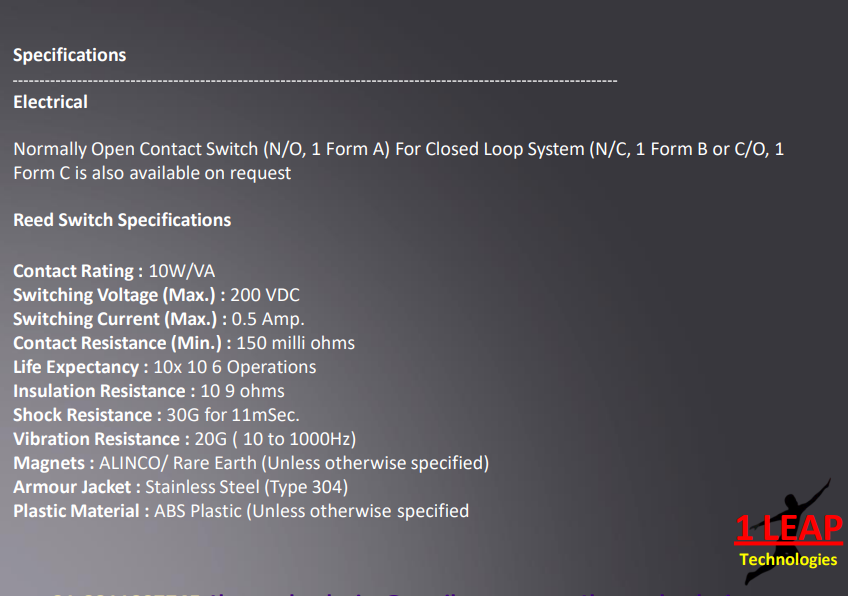

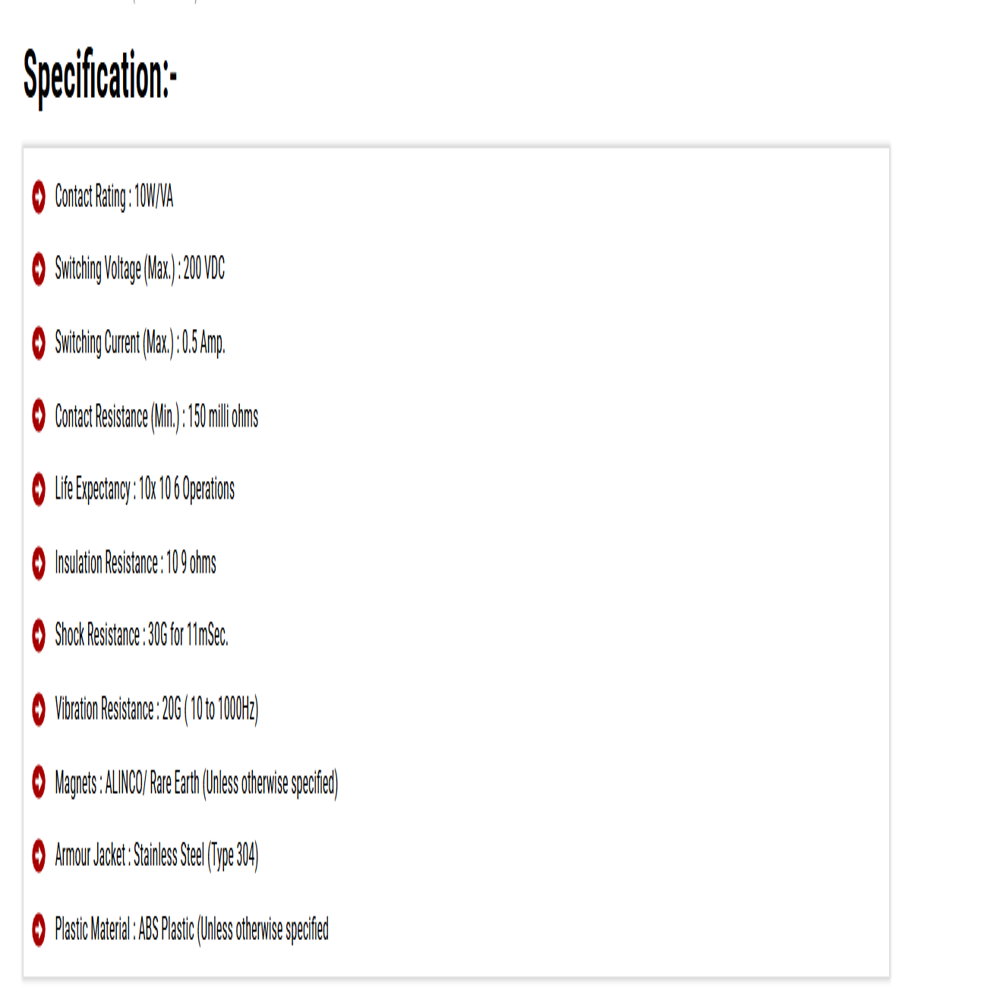

Dia with Adaptor Holder Magnetic Reed Switch Product Specifications
- IP67
- Normally Open (NO)
- 44mm x 10mm x 6mm (approx.)
- 20G ( 10 to 1000Hz) Hertz (HZ)
- -20 C to +70 C Celsius (oC)
- 100 Grams (g)
- 150 milli ohms Ohm ()
- 200 VDC
- 10~20mm
- 1 YEAR
- ABS Plastic
- White
- Panel Mount
- 200 VDC Volt (V)
- -40 C to +85 C Celsius (oC)
- Magnetic Reed Switch
- 1,000,000 operations min. Years
- Exclusive
- 1 ms Seconds
- 200 VDC Volt (V)
- 0.5 Amp. Ampere (amp)
- 200 VDC Volt (v)
- Matte
- 1
- Simple
- Automatic
- Normal
- Industrial Structural Monitoring
- Wire
- Single Pole
- 10 9 ohms
- 0.5A Max
- NA
- 10W Max
- 10~55Hz, 1.5mm amplitude
- Class A
- 300mm
- 30G min.
- 35%~85% RH
- Thermoplastic ABS
- 100V DC/AC Max
- SPST (Single Pole Single Throw)
- Permanent Magnet (Included)
Dia with Adaptor Holder Magnetic Reed Switch Trade Information
- 100 Piece Per Month
- 4 Days
Product Description

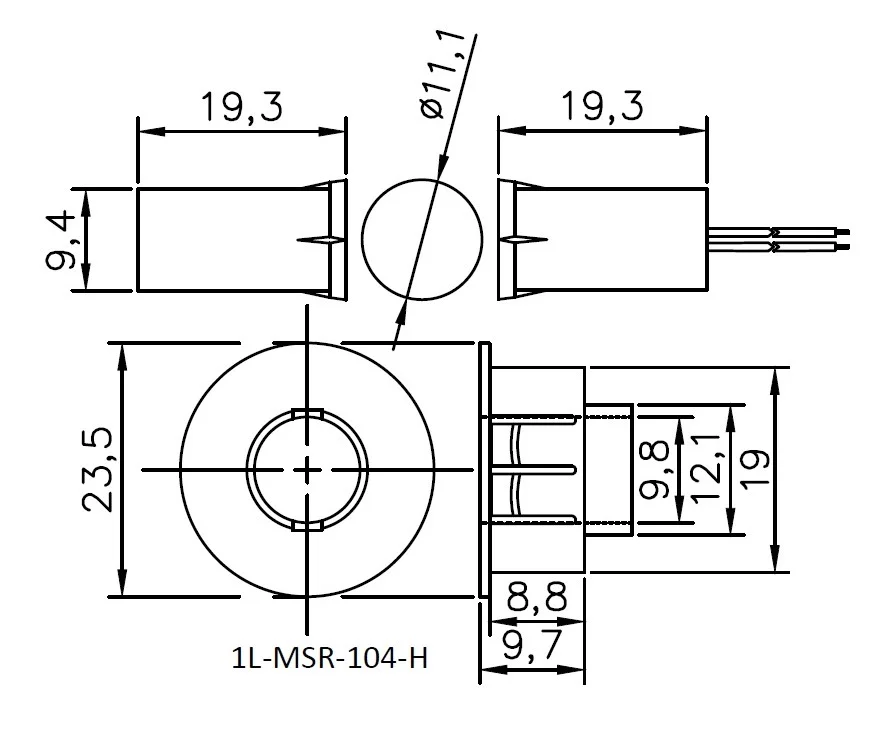

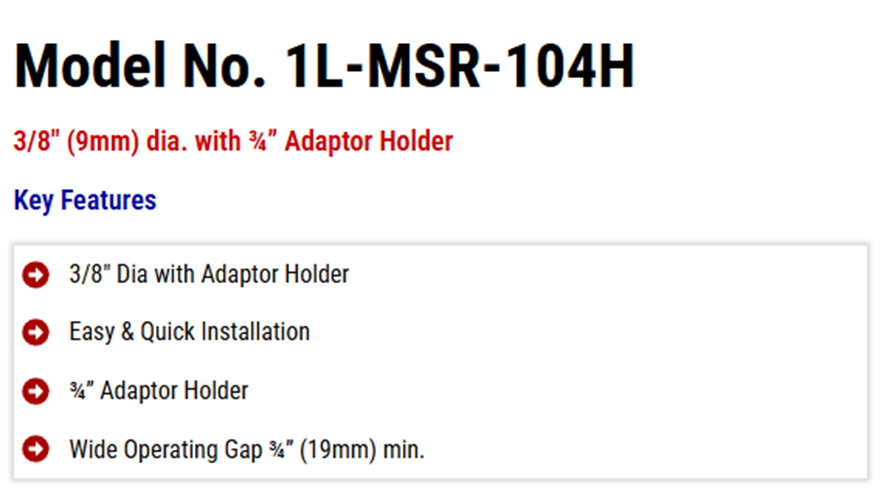

The 1L-MSR-104H Recessed Mount Magnetic Switch is a specially engineered magnetic reed switch sensor manufactured by 1 LEAP Technologies, a recognized sensor and reed manufacturer for industrial, architectural, and marine applications. This model has been developed for installations where surface mounting is not practical, where mechanical protection is essential, and where a wide and forgiving operating gap is required for consistent performance.Durable Design and Superior Performance
Engineered with a thermoplastic ABS housing, this reed switch is crafted for both durability and reliable operation in harsh industrial environments. It features a magnetic actuator, comes with a 300mm lead wire, and can withstand mechanical shocks up to 30G and vibrations from 10 to 55Hz. Its IP67 ingress protection rating ensures it can resist dust and water, making it ideal for outdoor or demanding monitoring setups.
Versatile Applications in Industrial Monitoring
With its precise and fast 1 ms response time, this magnetic reed switch is perfectly suited for industrial structural monitoring. The device's normally open SPST contact form makes it highly adaptable for integration into automated systems. Common uses include safety interlock sensing, position detection, and automation feedback circuits where reliability and longevity are required.
FAQ's of Dia with Adaptor Holder Magnetic Reed Switch :
Q: How does the magnetic reed switch with adaptor holder operate?
A: This switch uses a permanent magnet and a reed element to detect changes in position or proximity. When the magnet approaches the reed, the contacts close, creating an electrical connection. It operates as a single pole single throw (SPST), normally open circuit, closing the circuit when activated.Q: What are the recommended usage environments for this reed switch?
A: The switch supports operation in ambient humidity between 35% and 85% RH and within a temperature range of -40C to +85C. Its IP67 protection rating allows for use in outdoor, industrial, and moist or dusty settings without performance degradation.Q: Where can this reed switch be mounted, and what is its primary application?
A: It is designed for panel mounting, making it suitable for control cabinets, machinery housings, and other industrial monitoring setups. Its primary applications are in industrial structural monitoring, safety interlocks, and position sensing.Q: What benefits does this reed switch offer over conventional switches?
A: This device provides rapid response (1 ms), high reliability (over 1,000,000 operations), and robust resistance to vibration and shocks (up to 30G). The IP67 rating offers exceptional environmental protection, and the included permanent magnet simplifies installation.Q: How does the switch ensure electrical safety and reliability?
A: The switch features Class A insulation, an insulation resistance of 109 ohms, and a contact resistance of only 150 milli-ohms, which collectively help to prevent electrical faults and ensure stable, long-term performance in demanding environments.Q: What are the power and current handling capabilities of this reed switch?
A: It is rated for a switching power of up to 10W, with a maximum voltage of 200V DC and maximum current of 0.5A. This makes it suitable for a variety of industrial low-voltage signaling applications.Q: What warranty is included with this product?
A: The magnetic reed switch comes with a 1-year manufacturer's warranty, providing assurance of quality and after-sales support from the supplier in India.Tell us about your requirement
