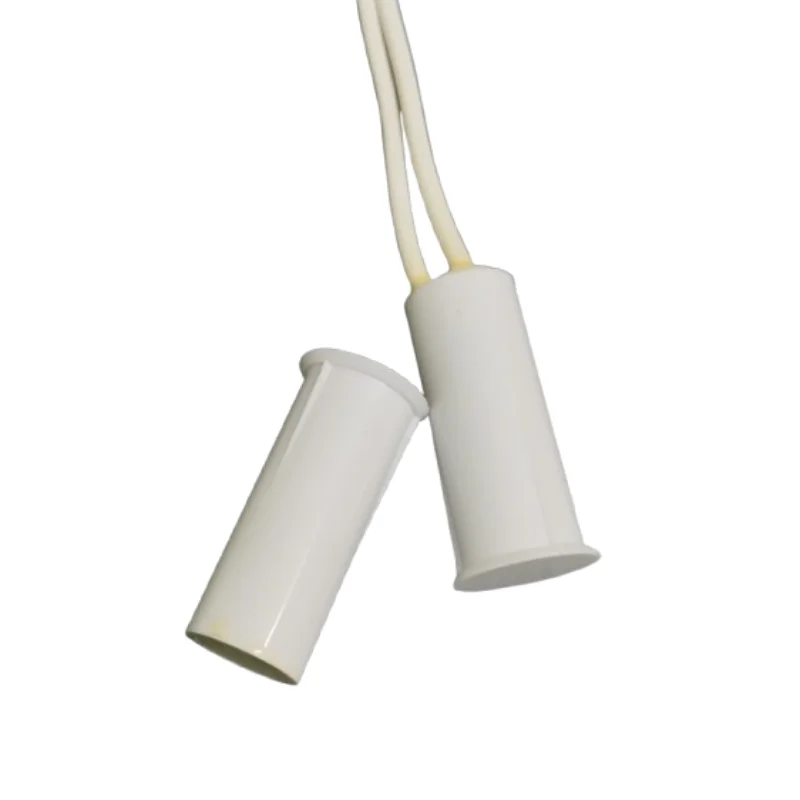

Long Wire Leads Recessed Mount Magnetic Switch

Long Wire Leads Recessed Mount Magnetic Switch

Name: Magnetic Door Contact Switch NC
Brand: 1 LEAP Technologies
Price: 220 INR
Availability: InStock

230.0 INR/Piece

Get a Price/Quote

Product Details:

Max. Current 0.25 A Ampere (amp)
Mechanical Life Over 10 million cycles Seconds
Protection Level IP60
Circuit Type NO
Product Type Magnetic Door Contact Switch
Insulation Resistance 10 9 ohms
Contact Resistance 150 milli ohms Ohm ()
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Long Wire Leads Recessed Mount Magnetic Switch Price And Quantity

Price 230.0 INR/Piece
Minimum Order Quantity 5 Piece

Application area Door security
Shape Rectangular
Response type Contact switch
Polarity Non-polarized
Cable length 0.5 m
Actuation Magnetic
Operate distance 10 mm
Housing Plastic body
Switch form Normally closed
Gate sensor Yes

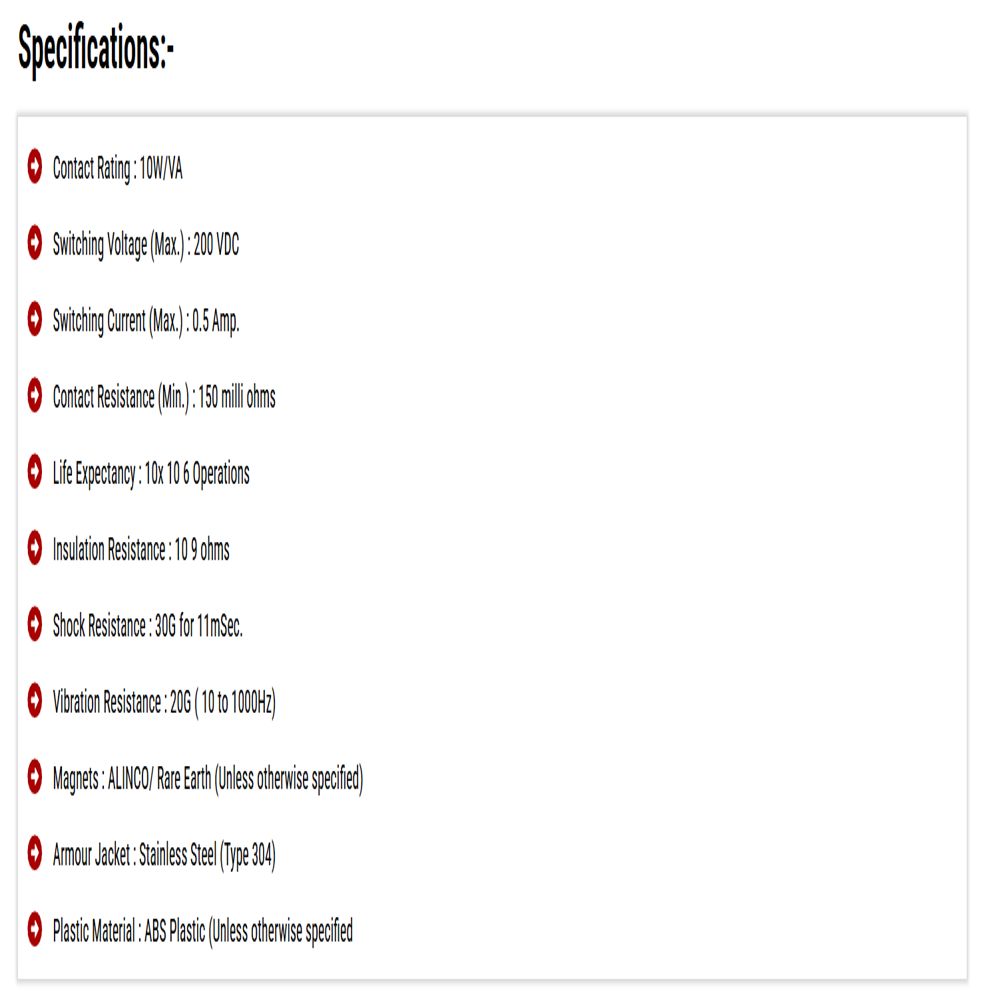

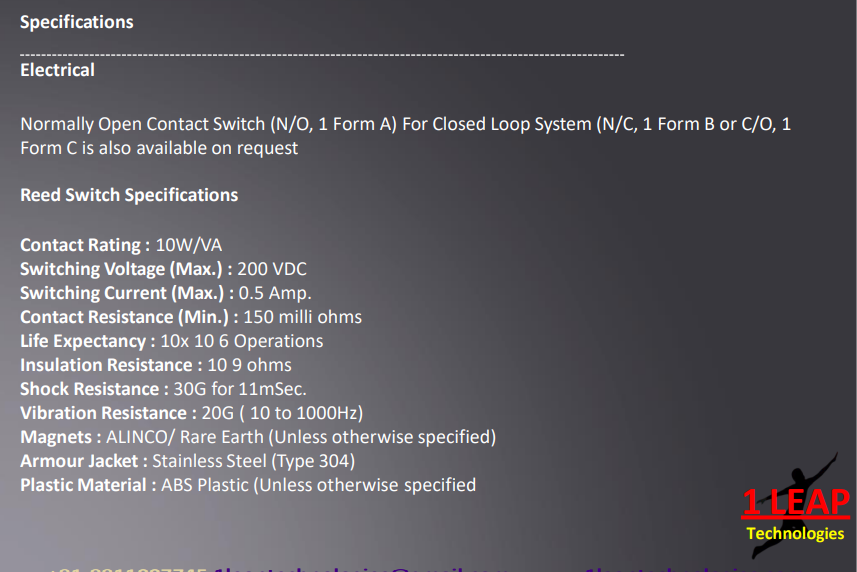

Long Wire Leads Recessed Mount Magnetic Switch Product Specifications

Material ABS Plastic
Frequency 50 Hertz (HZ)
Size Medium
Max. Voltage 200 VDC Volt (V)
No Of Poles Single Pole
Contact Resistance 150 milli ohms Ohm ()
Circuit Type NO
Product Type Magnetic Door Contact Switch
Weight 100 Grams (g)
Insulation Resistance 10 9 ohms
Cable Type Wired
Max. Current 0.25 A Ampere (amp)
Mounting Type Surface mount
Current Rating 0.5 Amp
Warranty 1 Year
Protection Level IP60
Color White
Mechanical Life Over 10 million cycles Seconds

Application area Door security
Shape Rectangular
Response type Contact switch
Polarity Non-polarized
Cable length 0.5 m
Actuation Magnetic
Operate distance 10 mm
Housing Plastic body
Switch form Normally closed
Gate sensor Yes

Long Wire Leads Recessed Mount Magnetic Switch Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

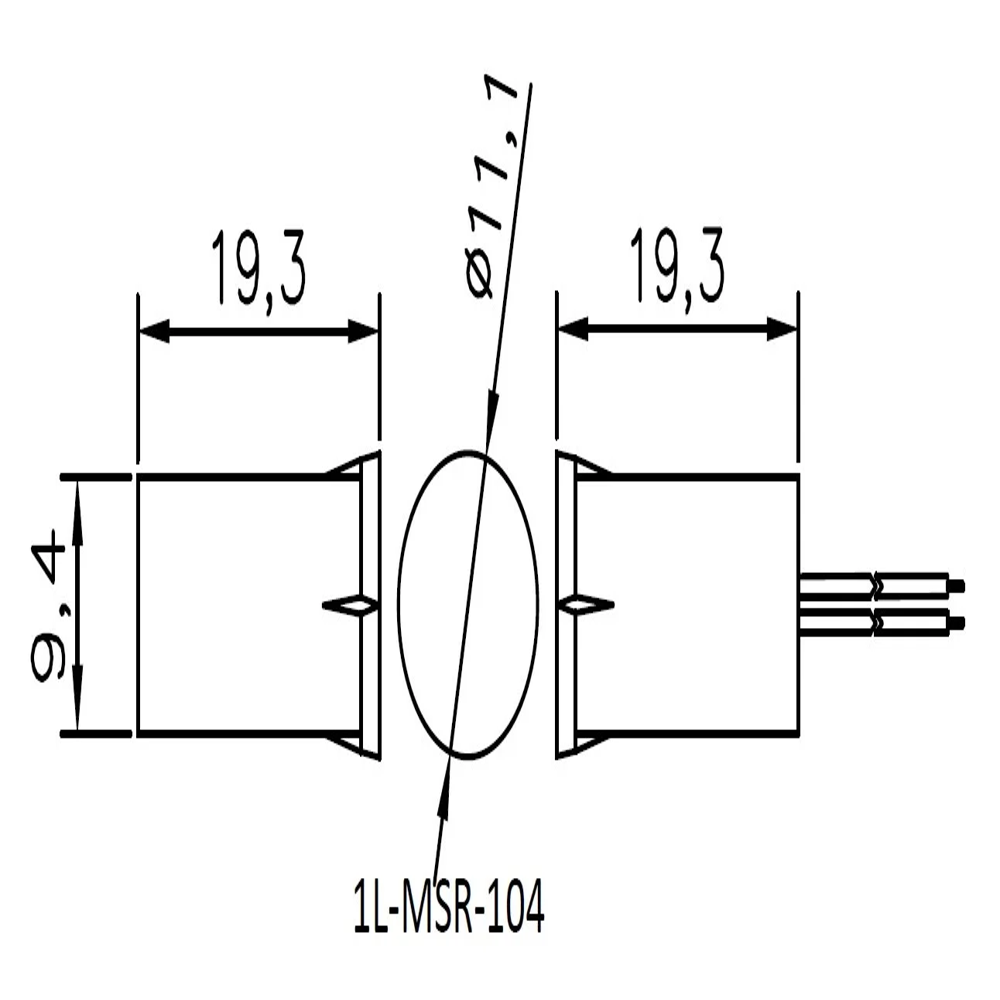

The 1L-MSR-104 Recessed Mount Magnetic Switch is a high-performance magnetic reed sensor specifically designed for applications that require concealed installation, longer sensing distance, and stable electrical performance. Developed and manufactured by 1 LEAP Technologies, this model belongs to the recessed mount magnetic switch category and is engineered for industrial and commercial systems where reliability and installation flexibility are critical.
