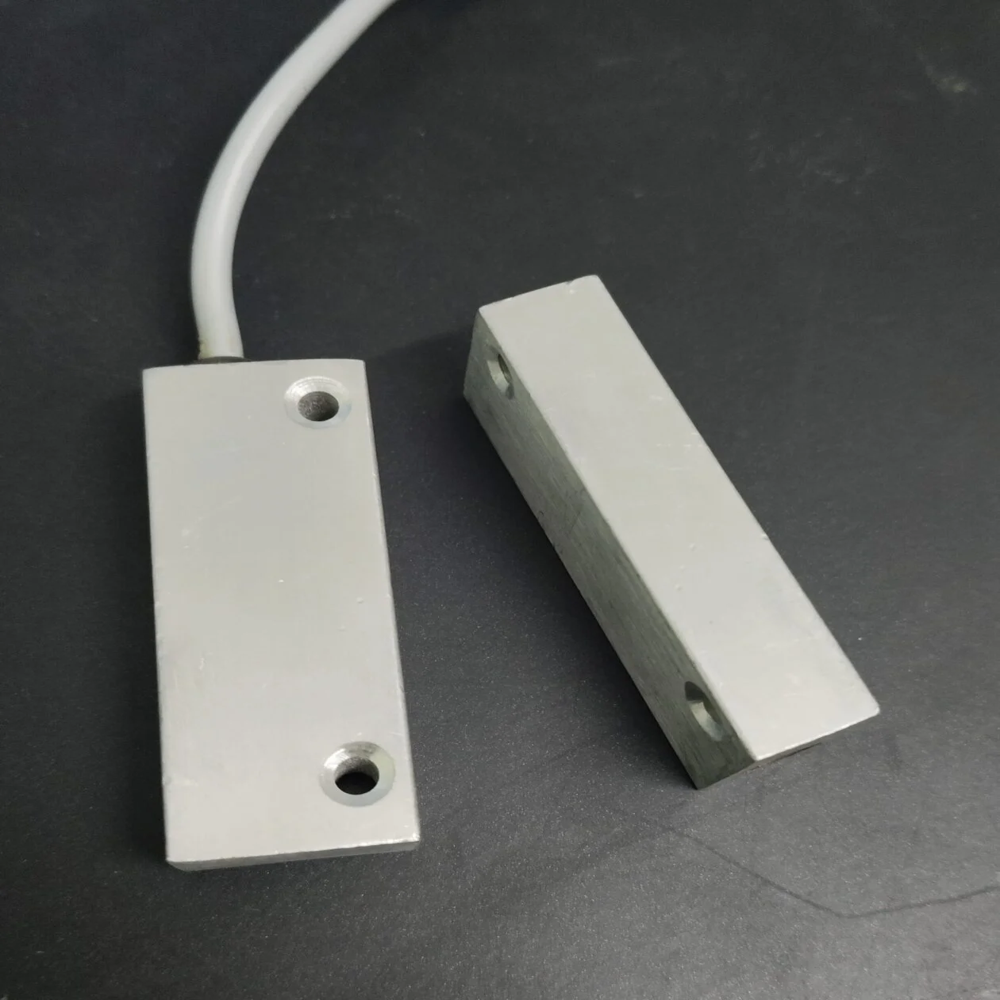

Rugged Aluminium Housing Magnetic Reed Swith

Rugged Aluminium Housing Magnetic Reed Swith

Name: Alumminium Housing Magnetic Switch
Brand: 1 LEAP Technologies
Price: 350 INR
Availability: InStock

390.0 INR/Piece

Get a Price/Quote

Product Details:

Mechanical Life Over 10 million cycles Years
Number of Module 1
Max. Current 0.5 Amp. Ampere (amp)
Response Time 0.1 Seconds
Circuit Type Nomal
Temperature Range -40 C to +85 C Celsius (oC)
Protection Level IP60
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Rugged Aluminium Housing Magnetic Reed Swith Price And Quantity

Price 390.0 INR/Piece
Minimum Order Quantity 1 Unit

Model Number 1L-MSS-101
Switch Configuration SPST
Power Voltage 200 VDC
Switch Type Contact
Contact Operation NO/NC
Operate Distance 10 mm
Use Case Limit switch
Application Industrial
Contact Form NO

Rugged Aluminium Housing Magnetic Reed Swith Product Specifications

Weight 100 Grams (g)
Temperature Range -40 C to +85 C Celsius (oC)
Warranty 1 Year
Power Rating 200 VDC
Protection Level IP60
Cable Type Wired
Current Rating 10W/VA
Insulation Resistance 10 9 ohms
Response Time 0.1 Seconds
Color White
Product Type Magnetic Switch
Mechanical Life Over 10 million cycles Years
Material Aluminium
Number of Module 1
Max. Current 0.5 Amp. Ampere (amp)
Contact Resistance 150 milli ohms Ohm ()
Circuit Type Nomal

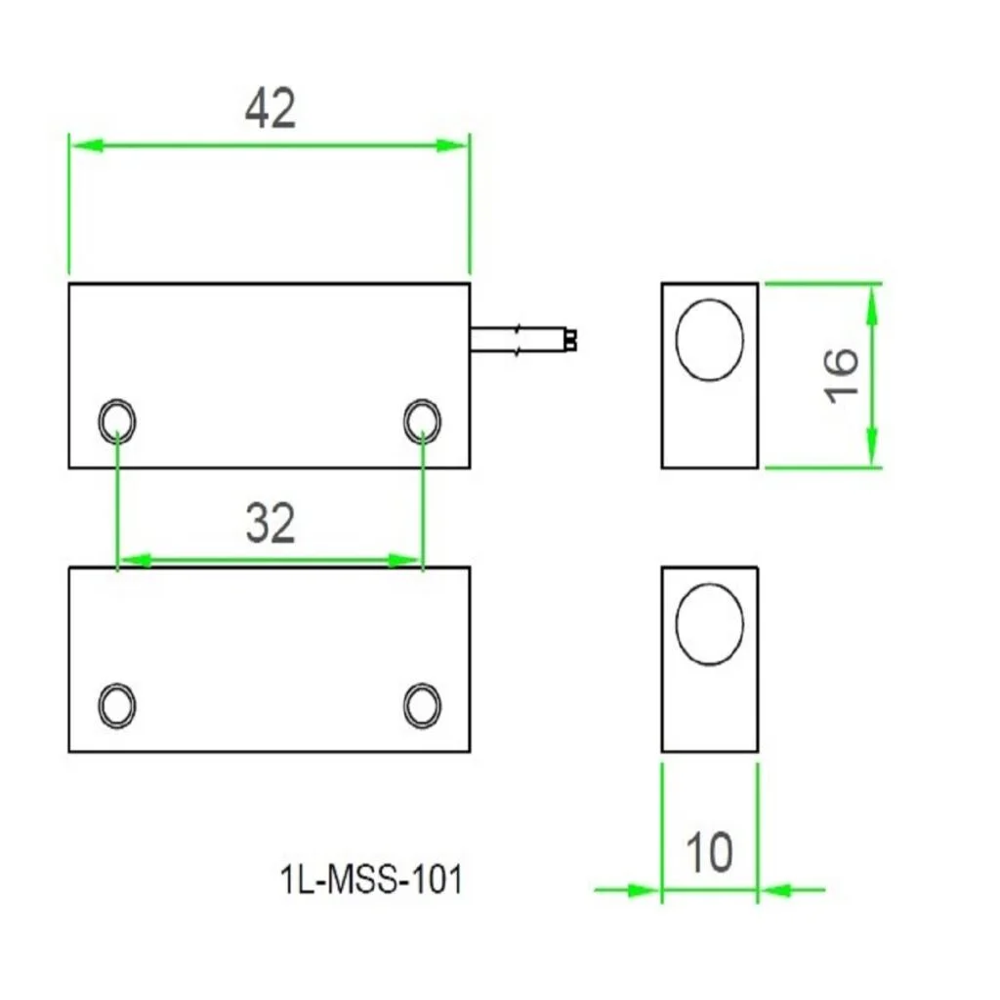

Size 40 x 25 x 10 mm
No Of Poles Single
Max. Voltage 200 VDC Volt (V)
Frequency 50 Hertz (HZ)

Model Number 1L-MSS-101
Switch Configuration SPST
Power Voltage 200 VDC
Switch Type Contact
Contact Operation NO/NC
Operate Distance 10 mm
Use Case Limit switch
Application Industrial
Contact Form NO

Rugged Aluminium Housing Magnetic Reed Swith Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

The 1L-MSS-101 Magnetic Switch from 1 LEAP Technologies is a superior magnetic sensing solution made for demanding conditions, industrial environments, and high-security applications. Customized with hard construction and accurate reed technology, this model ensures reliability, long service life, and consistent switching performance, even in hard operational settings.
