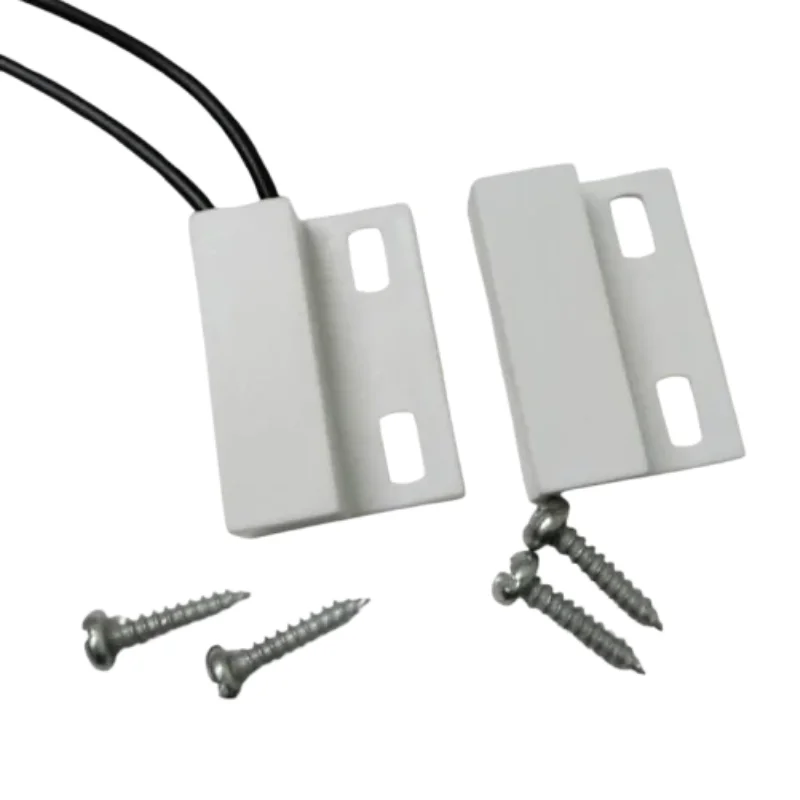

Big Flange Mount Contact Magnetic Reed Switch NC

Big Flange Mount Contact Magnetic Reed Switch NC

Name: Rugged Aluminium Housing Magnetic Reed Switch
Brand: 1 LEAP Technologies
Price: 350 INR
Availability: InStock

235.0 INR/Piece

Get a Price/Quote

Product Details:

Response Time 0.1 Seconds
Protection Level IP54
Temperature Range -40 C to +85 C Celsius (oC)
Max. Current 0.25 A Ampere (amp)
Product Type Magnetic Reed Switch
Contact Resistance 115 m Ohm (Ω)
Max. Voltage 60VDC Volt (V)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Big Flange Mount Contact Magnetic Reed Switch NC Price And Quantity

Price 235.0 INR/Piece
Minimum Order Quantity 5 Unit

Surface Finish Anodized
Operate Distance 20 mm
Model Name/Number 1L-MSS-101
Switch Type NO
Use Case Cold room door
Contact Form NO
Cable Length 0.5 m
Enclosure Type Rugged
Usage/Application Industrial
Response Time <5 ms
Housing Material Aluminium
Security Panel Wired panel
Electrical Connection NO
Wiring Prewired
Poles Single pole

Big Flange Mount Contact Magnetic Reed Switch NC Product Specifications

Size Compact
Warranty 1 Year
Current Rating 10W/VA
Contact Resistance 115 m Ohm (Ω)
Product Type Magnetic Reed Switch
Max. Voltage 60VDC Volt (V)
Max. Current 0.25 A Ampere (amp)
Material ABS Plastic
Frequency 50 Hertz (HZ)
Cable Type Wired
Response Time 0.1 Seconds
Color Silver
Temperature Range -40 C to +85 C Celsius (oC)
Mounting Type Surface mount
Weight 100 Grams (g)
Protection Level IP54
Operating Temperature -20 C to +70 C Celsius (oC)

Surface Finish Anodized
Operate Distance 20 mm
Model Name/Number 1L-MSS-101
Switch Type NO
Use Case Cold room door
Contact Form NO
Cable Length 0.5 m
Enclosure Type Rugged
Usage/Application Industrial
Response Time <5 ms
Housing Material Aluminium
Security Panel Wired panel
Electrical Connection NO
Wiring Prewired
Poles Single pole

Big Flange Mount Contact Magnetic Reed Switch NC Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Unit Per Month
Delivery Time 3 Days
Main Domestic Market All India

Product Description

The ABS is engineered for maximum service life with environmental stress protection, and the PVC-coated wires provide electrical safety in commercial and industrial merger. This is a fully sealed and protected switch providing in excess of 10 million cycles of mechanical life, fully supporting a huge range of applications in high-frequency switching environments, including machine guarding, automated addition, access control, and security systems.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Magnetic Reed Switch' category

Surface Mount Design Magnetic Reed Switches NO Price : 150.0 INR/Piece Minimum Order Quantity : 1 Protection Level : ABS Plastic Warranty : 1 Year Contact Resistance : 0.1 Ohm (Ω) Max. Current : 0.5 A Ampere (amp) Weight : 100 Grams (g) Material : ABS Plastic Response Time : 1 Seconds Cable Type : Wire Mechanical Life : Over 10 million cycles Years Color : White Product Type : Magnetic Switch Max. Voltage : 200 VDC Volt (V) Size : Medium Mounting Type : Surface Mount Insulation Resistance : 10 9 ohms Temperature Range : 40 C to +85 C Celsius (oC) Circuit Type : Normal Rated Voltage : 200VDC Volt (V) Current Rating : 0.5 A Operating Temperature : 20 C to +70 C Celsius (oC) Finish Type : Complete Rated Current : 0.5 A Ampere (amp) Power Rating : 0.5 A Automation Grade : A

Send Inquiry

Big Flange Mount Magnetic Reed Switches NO Price : 130.0 INR/Piece Minimum Order Quantity : 6 Protection Level : IP65 Warranty : 1 Year Contact Resistance : 0.1 Ohm (Ω) Max. Current : 0.5 A Ampere (amp) Weight : 100 Grams (g) Material : ABS Plastic Response Time : 1.0 ms Seconds Cable Type : Wire Mechanical Life : 1,000,000 operations Years No Of Poles : Single Pole Color : White Product Type : Magnetic Reed Switch Max. Voltage : 200 VDC Volt (V) Size : 45mm x 13mm x 9mm (approx.) Mounting Type : Screw Mount Number of Module : 1 Insulation Resistance : NA Temperature Range : 40 C to +85 C Celsius (oC) Circuit Type : Normally Open (NO) Rated Voltage : 200 VDC Volt (V) Current Rating : 0.5A Operating Temperature : 20 C to +70 C Celsius (oC) Finish Type : Glossy Automation Grade : Automatic

Send Inquiry

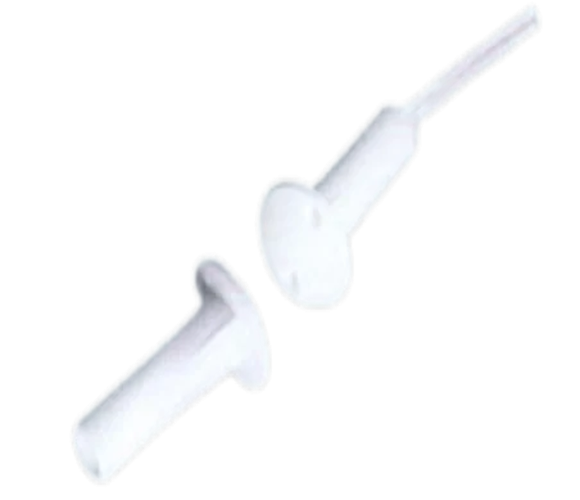

Recessed Mount Magnetic Contact Price : 230.0 INR/Piece Minimum Order Quantity : 1 Protection Level : IP60 Warranty : 1 Year Contact Resistance : 150 milli ohms Ohm (Ω) Max. Current : 0.5 Amp. Ampere (amp) Weight : 100 Grams (g) Material : ABS Plastic Response Time : 0.1 Seconds Cable Type : wired Mechanical Life : Over 10 million cycles Years No Of Poles : Single Pole Color : White Product Type : Magnetic Reed Switch Max. Voltage : 200 VDC Volt (V) Size : Medium Mounting Type : Suface Mount Insulation Resistance : 10 9 ohms Temperature Range : 40 C to +85 C Celsius (oC) Circuit Type : Normal Rated Voltage : 10W/VA Volt (V) Frequency : 50 Hertz (HZ) Operating Temperature : 20 C to +70 C Celsius (oC) Rated Current : 0.5 Amp. Ampere (amp)
