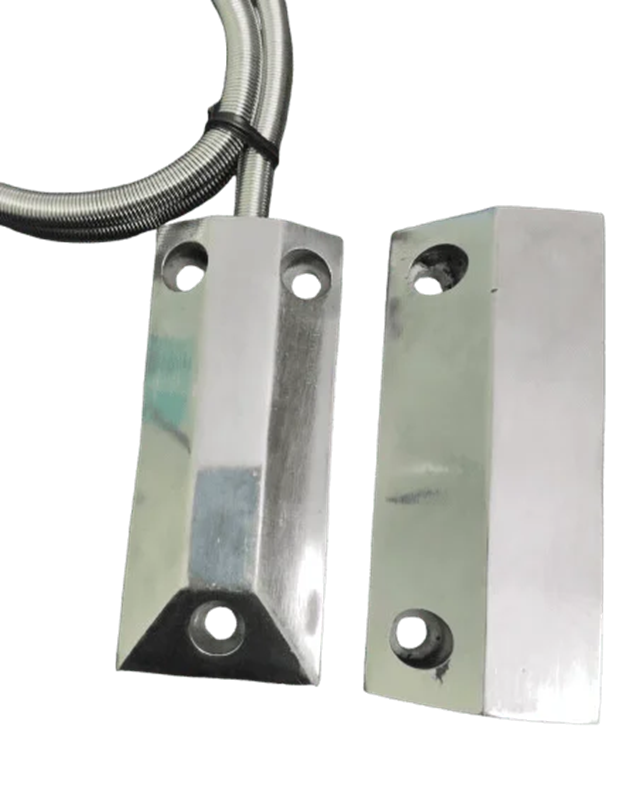

Roller Shutter Stainless Steel Armoured Cable Reed Switch

Roller Shutter Stainless Steel Armoured Cable Reed Switch

Name: Roller Shutter Magnetic Switch Aluminium Housing
Brand: 1 LEAP Technologies
Price: 460 INR
Availability: InStock

550.0 INR/Piece

Get a Price/Quote

Product Details:

Number of Module 1
Response Time 0.1 Seconds
Mechanical Life 10 x 10 Operations Seconds
Circuit Type Normal
Max. Current 0.5 Amp. Ampere (amp)
Protection Level IP60
Product Type Magnetic Reed Switches
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Roller Shutter Stainless Steel Armoured Cable Reed Switch Price And Quantity

Minimum Order Quantity 5 Unit
Price 550.0 INR/Piece

Mounting Surface mount
Shutter compatibility Roller shutter
Contact form NO
Power source Mains
Wireless type Wired
Use case Industrial gate
Max. Switching Voltage 0.5 Amp
Operate distance 50 mm
Housing type Aluminium housing
Switch Configuration SPST
Model Name/Number 1L-MSO-101
Power/Voltage 200 VDC
Usage/Application Industrial
Shape Rectangular

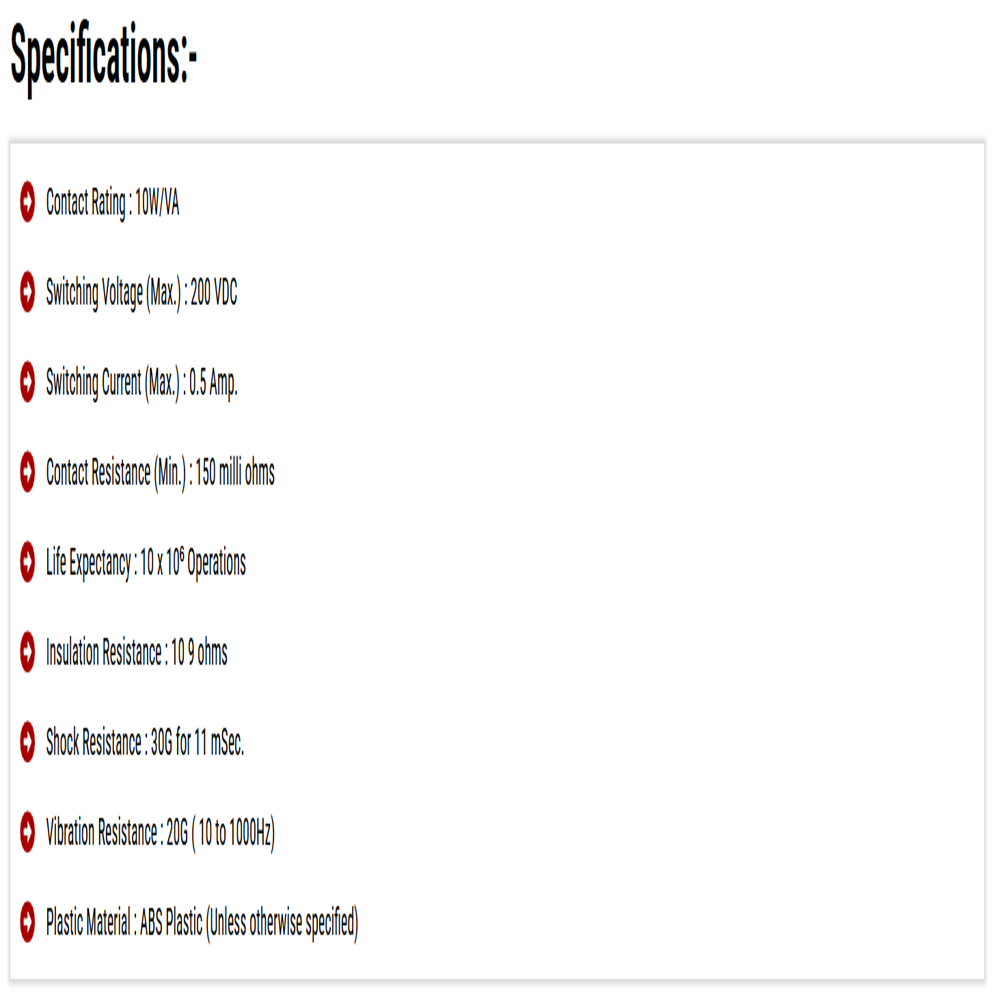

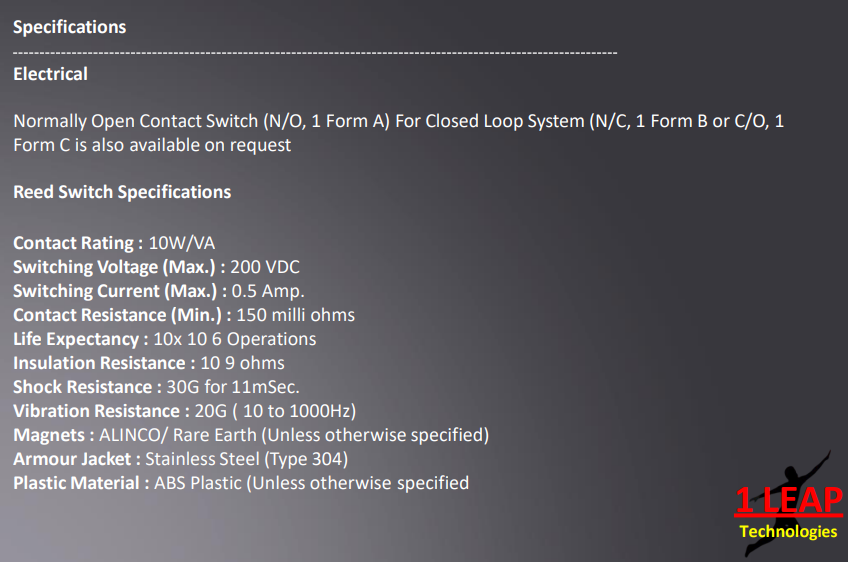

Roller Shutter Stainless Steel Armoured Cable Reed Switch Product Specifications

Frequency 50 Hertz (HZ)
Size Medium
Max. Voltage 200 VDC Volt (V)
Response Time 0.1 Seconds
Material ABS Plastic
Current Rating 10W/VA
Product Type Magnetic Reed Switches
Number of Module 1
No Of Poles Single
Contact Resistance 150 milli ohms Ohm ()
Insulation Resistance 10 9 ohms
Protection Level IP60
Mechanical Life 10 x 10 Operations Seconds
Weight 100 Grams (g)
Cable Type Wired
Circuit Type Normal
Max. Current 0.5 Amp. Ampere (amp)
Warranty 1 Year
Mounting Type Surface Type
Color White

Mounting Surface mount
Shutter compatibility Roller shutter
Contact form NO
Power source Mains
Wireless type Wired
Use case Industrial gate
Max. Switching Voltage 0.5 Amp
Operate distance 50 mm
Housing type Aluminium housing
Switch Configuration SPST
Model Name/Number 1L-MSO-101
Power/Voltage 200 VDC
Usage/Application Industrial
Shape Rectangular

Roller Shutter Stainless Steel Armoured Cable Reed Switch Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

The 1L-MSO-101 Overhead Mount Magnetic Switch is a heavy-duty magnetic switch robust, reliable, and specifically engineered for roller shutters or overhead door applications. This model is designed and manufactured by 1 LEAP Technologies to perform very well under demanding industrial and commercial applications where reliability, mechanical strength, and large sensing gap are required.
