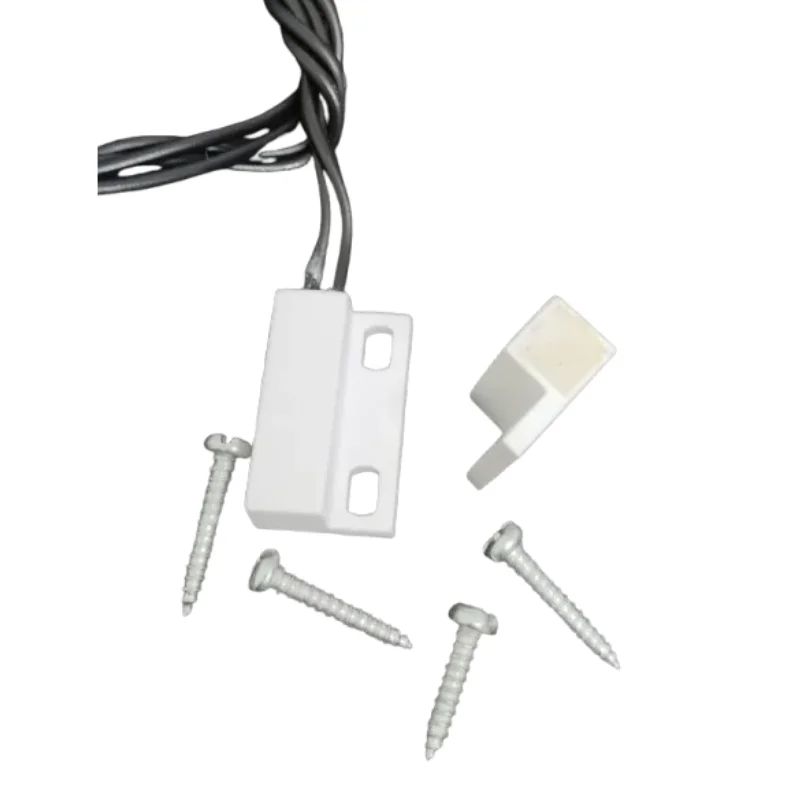

surface mount design with side leads NC Switch

surface mount design with side leads NC Switch

230.0 INR/Piece

Get a Price/Quote

Product Details:

Rated Voltage 4 W Watt (W)
Max. Current 0.25 A Ampere (amp)
Protection Level IP60
Response Time 0.1 Seconds
Temperature Range -40 C to +85 C Celsius (oC)
Circuit Type NC
Mechanical Life Over 10 million cycles Seconds
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

surface mount design with side leads NC Switch Price And Quantity

Minimum Order Quantity 5 Piece
Price 230.0 INR/Piece

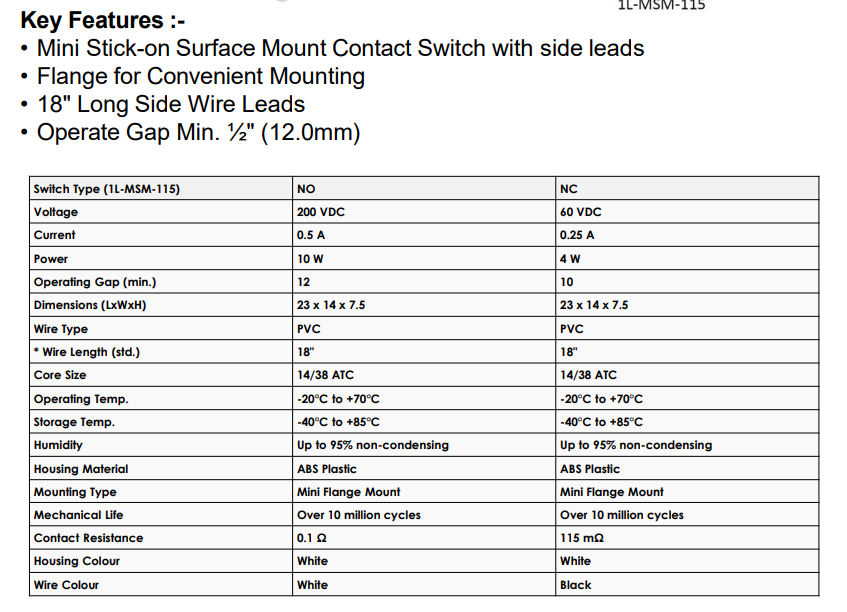

surface mount design with side leads NC Switch Product Specifications

Cable Type PVC
Material ABS Plastic
Circuit Type NC
Response Time 0.1 Seconds
Temperature Range -40 C to +85 C Celsius (oC)
Contact Resistance 115 m Ohm ()
Size Medium
Rated Voltage 4 W Watt (W)
Max. Current 0.25 A Ampere (amp)
No Of Poles Single Pole
Protection Level IP60
Max. Voltage 60 VDC Volt (V)
Warranty 1 Year
Mounting Type Surface
Operating Temperature -20 C to +70 C Celsius (oC)
Product Type NC
Number of Module 1
Mechanical Life Over 10 million cycles Seconds
Color White

surface mount design with side leads NC Switch Trade Information

Delivery Time 3 Days

Product Description

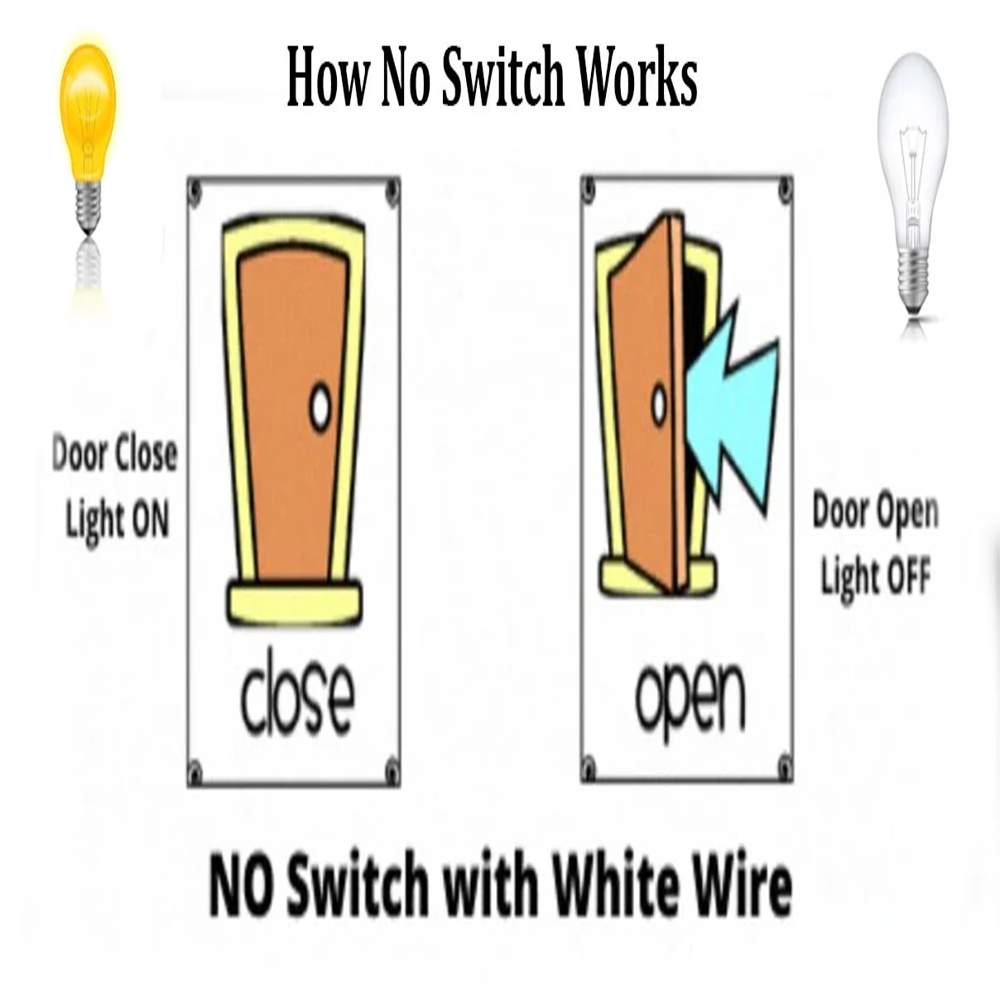

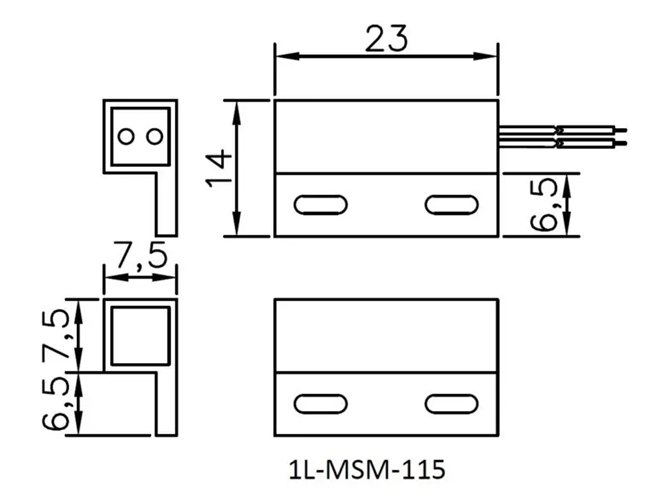

The 1L-MSM-115 is available in two distinct electrical configurationsNormally Open (NO) and Normally Closed (NC)allowing system designers to select the proper logic based on operational and safety requirements. Both versions share the same mechanical housing but differ intentionally in their operating behaviour.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Magnetic Reed Switch' category

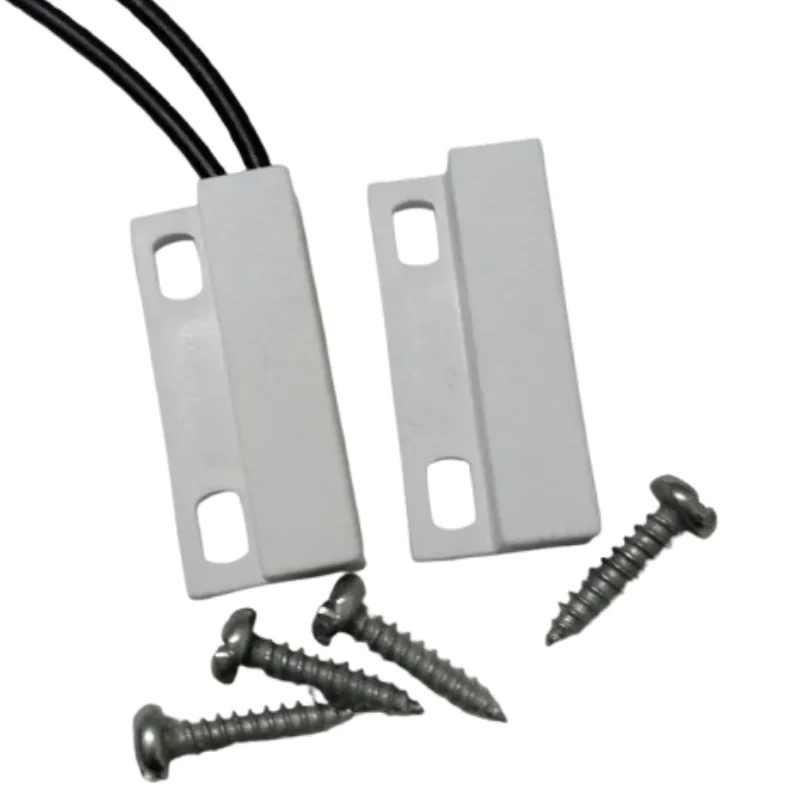

Stick-On Contact Flange NC Magnetic Reed Switch Price : 225.0 INR/Piece Minimum Order Quantity : 5 Mechanical Life : Over 10 million cycles Years Color : White Weight : 100 Grams (g) Mounting Type : Surface Mount Warranty : 1 Year Product Type : NC Max. Voltage : 60 VDC Volt (V) No Of Poles : Single Pole Protection Level : IP60 Max. Current : 0.25 A Ampere (amp) Size : Medium Material : ABS Plastic Response Time : 0.1 Seconds Contact Resistance : 115 m Ohm () Cable Type : PVC Operating Temperature : 20 C to +70 C Celsius (oC) Number of Module : 1

Send Inquiry

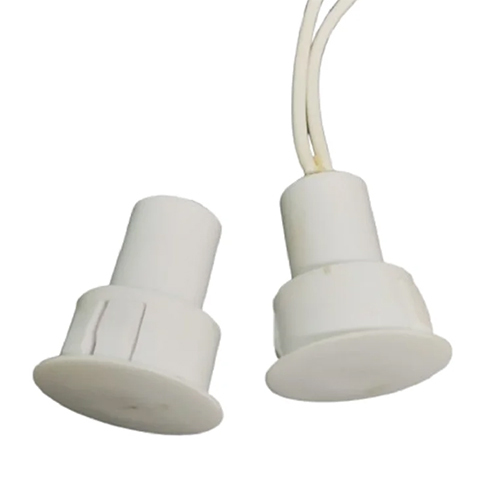

Steel door contact Magnetic Reed Switch Price : 185.0 INR/Piece Minimum Order Quantity : 5 Mechanical Life : Over 10 million cycles Years Color : White Weight : 100 Grams (g) Mounting Type : Surface Warranty : 1 Year Product Type : magnetic reed switch Max. Voltage : 200 VDC Volt (V) No Of Poles : NA Protection Level : ABS Plastic Max. Current : 0.5 Amp. Ampere (amp) Size : Medium Material : ABS Plastic Contact Resistance : 150 milli ohms Ohm () Cable Type : Wire Operating Temperature : 20 C to +70 C Celsius (oC) Insulation Resistance : 10 9 ohms

Send Inquiry

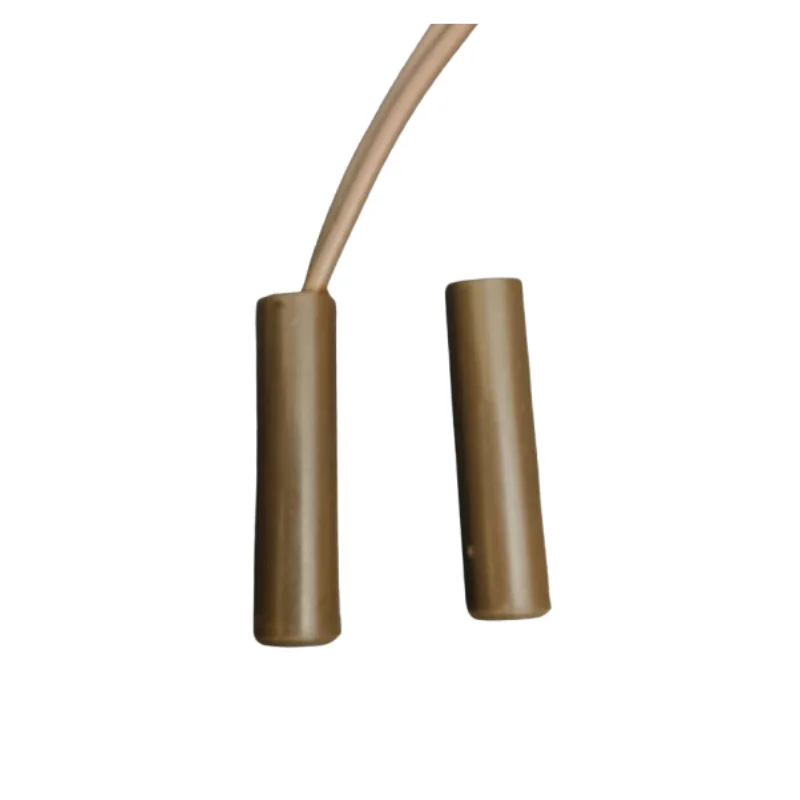

Press Fit Mini Switch Recessed Mount Magnetic Switch Price : 165.0 INR/Piece Minimum Order Quantity : 1 Mechanical Life : Over 10 million cycles Years Color : White Weight : 100 Grams (g) Mounting Type : Surface Mount Warranty : 1 Year Product Type : Magnetic Reed Switches Max. Voltage : 200 VDC Volt (V) No Of Poles : SPST Protection Level : IP60 Max. Current : 0.5 Amp. Ampere (amp) Size : Medium Material : ABS Plastic Response Time : 0.1 Seconds Contact Resistance : 150 milli ohms Ohm () Cable Type : Wired Insulation Resistance : 10 9 ohms

Send Inquiry

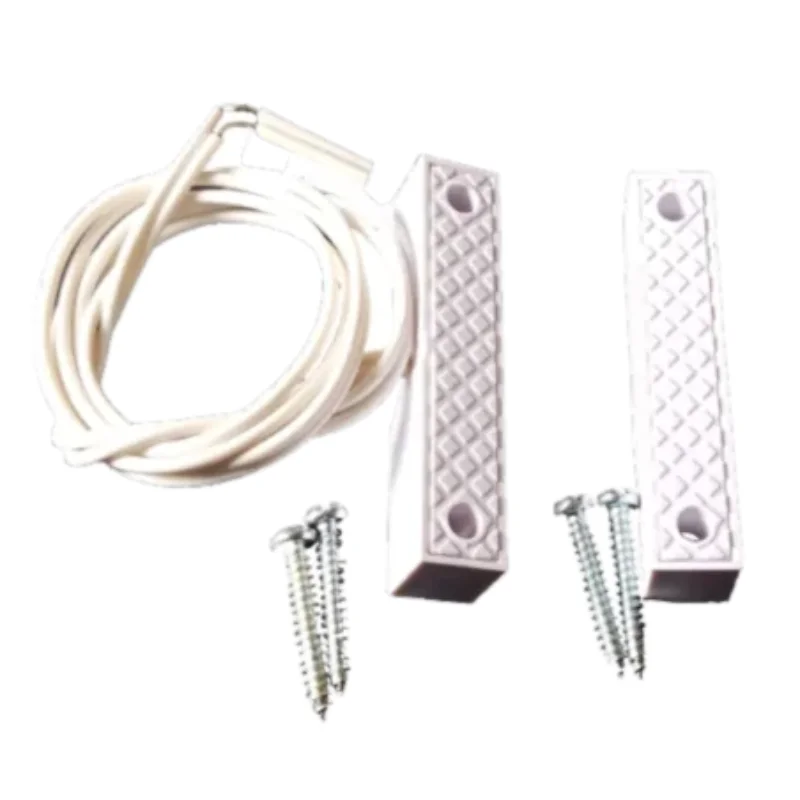

Surface Mount Magnetic Reed Switch NO Price : 150.0 INR/Piece Minimum Order Quantity : 5 Mechanical Life : Over 10 million cycles Years Color : White Weight : 100 Grams (g) Mounting Type : Surface Mount Warranty : 1 Year Product Type : Surface Mount Magnetic Reed Switch Max. Voltage : 200 VDC Volt (V) No Of Poles : Single Pole Protection Level : IP60 Max. Current : 0.5 A Ampere (amp) Size : Medium Material : ABS Plastic Response Time : 0.1 Seconds Contact Resistance : 0.1 Ohm () Cable Type : PVC Operating Temperature : 20 C to +70 C Celsius (oC) Number of Module : 1
