Recessed Mount Magnetic Contact

Name: Recessed Mount Magnetic Contact
Brand: 1 LEAP Technologies
Price: 230.0 INR
Availability: InStock

230.0 INR/Piece

Get a Price/Quote

Product Details:

Rated Voltage 10W/VA Volt (V)
Max. Current 0.5 Amp. Ampere (amp)
Mechanical Life Over 10 million cycles Years
Response Time 0.1 Seconds
Protection Level IP60
Temperature Range -40 C to +85 C Celsius (oC)
Circuit Type Normal
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Recessed Mount Magnetic Contact Price And Quantity

Price 230.0 INR/Piece
Minimum Order Quantity 1 Piece

Wire Leads Short pre-attached
Sensing Type Magnetic
Body Material Durable plastic
Current Rating 10 W/VA
Shape Cylindrical
Model Name/Number 1L-MSR-104-PF
Contact Configuration NO
Usage Door/Window alarm
Installation Drill-in ceiling, wall
Connection Type Wire leads

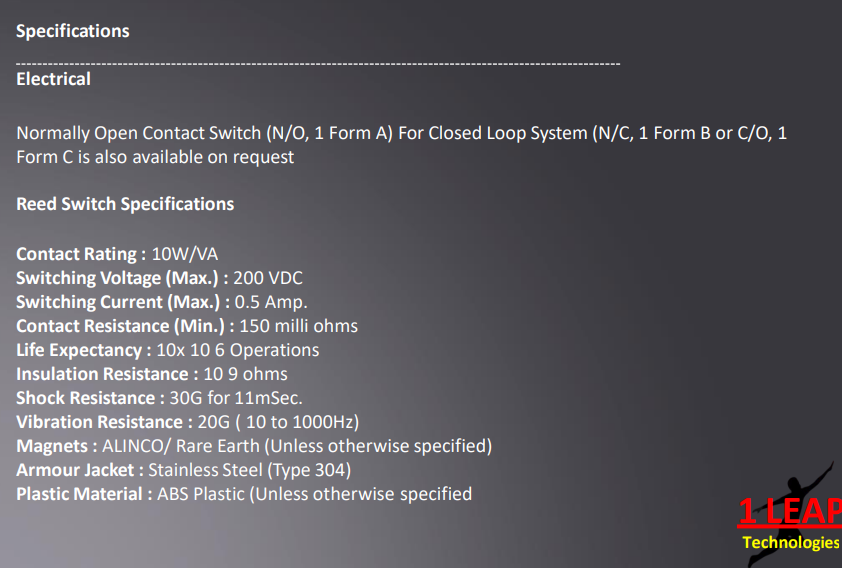

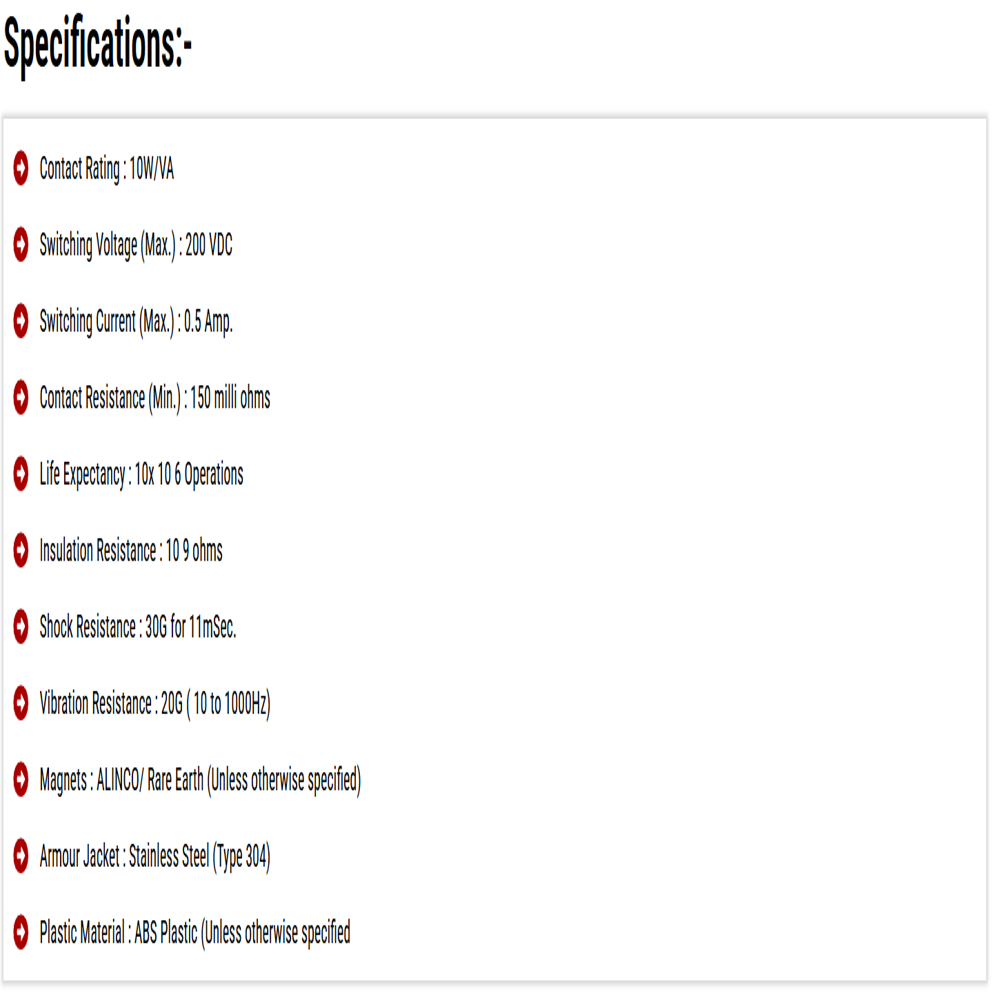

Recessed Mount Magnetic Contact Product Specifications

Weight 100 Grams (g)
Material ABS Plastic
Frequency 50 Hertz (HZ)
Max. Voltage 200 VDC Volt (V)
Operating Temperature -20 C to +70 C Celsius (oC)
Warranty 1 Year
Protection Level IP60
Size Medium
Temperature Range -40 C to +85 C Celsius (oC)
Cable Type wired
Circuit Type Normal
No Of Poles Single Pole
Insulation Resistance 10 9 ohms
Rated Current 0.5 Amp. Ampere (amp)
Color White
Product Type Magnetic Reed Switch
Rated Voltage 10W/VA Volt (V)
Mounting Type Suface Mount
Max. Current 0.5 Amp. Ampere (amp)
Contact Resistance 150 milli ohms Ohm (Ω)
Mechanical Life Over 10 million cycles Years
Response Time 0.1 Seconds

Wire Leads Short pre-attached
Sensing Type Magnetic
Body Material Durable plastic
Current Rating 10 W/VA
Shape Cylindrical
Model Name/Number 1L-MSR-104-PF
Contact Configuration NO
Usage Door/Window alarm
Installation Drill-in ceiling, wall
Connection Type Wire leads

Recessed Mount Magnetic Contact Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

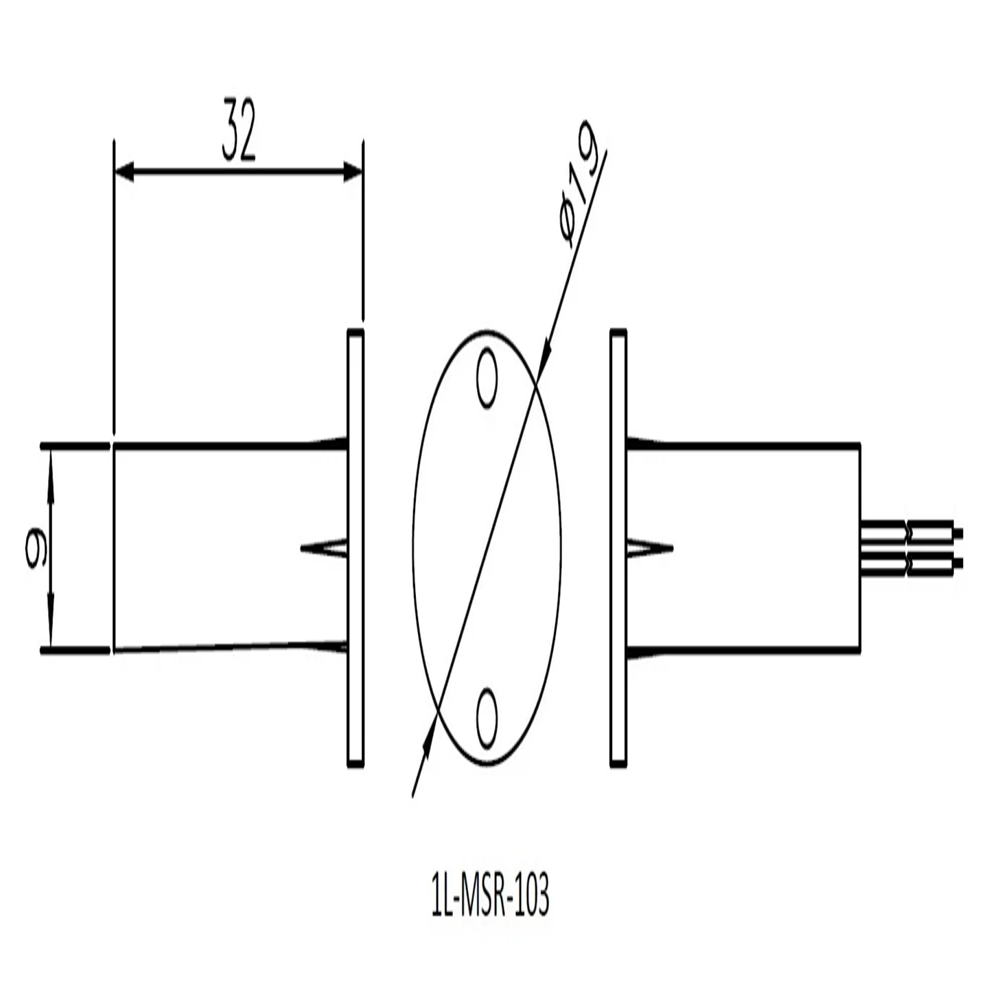

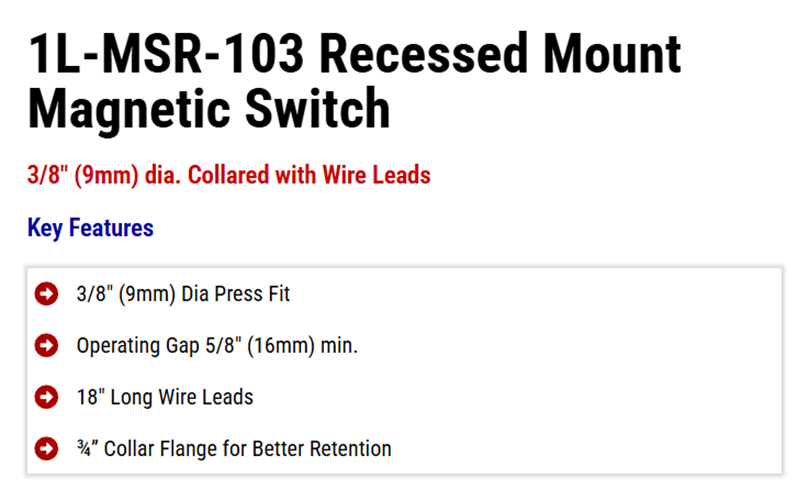

The 1L-MSR-103 Recessed Mount Magnetic Switch by 1 LEAP Technologies is a high-performance industrial magnetic switch made for accurate position sensing in fixed and heavy-duty environments. This model is specifically designed to be installed inside a drilled cavity, allowing the switch to remain flush with the mounting surface while making sure an excellent mechanical protection and long-term reliability.
