Surface Mount Design Magnetic Reed Switches NO

Name: Surface Mount Design Magnetic Reed Switches NO
Brand: 1LEAP Technologies
Price: 150.0 INR
Availability: InStock

Price 150.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

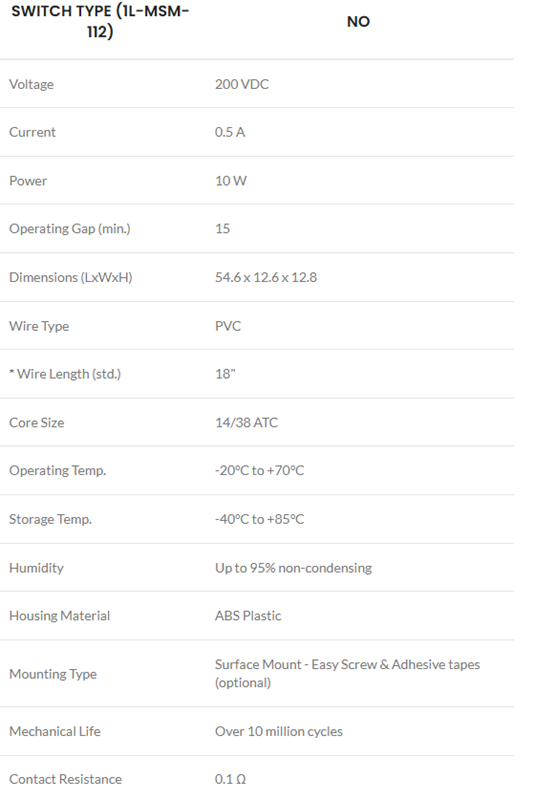

Surface Mount Design Magnetic Reed Switches NO Specification

Protection Level
ABS Plastic

Mechanical Life
Over 10 million cycles Years

Automation Grade
A

Max. Current
0.5 A Ampere (amp)

Rated Voltage
200VDC Volt (V)

Temperature Range
-40 C to +85 C Celsius (oC)

Finish Type
Complete

Circuit Type
Normal

Response Time
1 Seconds

Power Rating
0.5 A

Product Type
Magnetic Reed Switch

Insulation Resistance
10 9 ohms

Contact Resistance
0.1 Ohm ()

Max. Voltage
200 VDC Volt (V)

Warranty
1 Year

Usage & Applications
The Security systems, Door and window monitoring, Industrial automation, Access control devices

Size
Medium

Color
White

Cable Type
Wire

Operating Temperature
-20 C to +70 C Celsius (oC)

Weight
100 Grams (g)

Display Type
Normal

Features
Surface mount design with screw mounting and optional adhesive tape

Material
ABS Plastic

Rated Current
0.5 A Ampere (amp)

Conductor
Yes

Mounting Type
Surface Mount

Current Rating
0.5 A

Surface Mount Design Magnetic Reed Switches NO Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
4 Days

About Surface Mount Design Magnetic Reed Switches NO

The 1L-MSM-112 Surface Mount Magnetic Reed Switch from 1 LEAP Technologies is an accurate-engineered magnetic sensing solution designed for dependable, non-contact switching in security, automation, and access-control systems. This model is specifically developed for surface-mounted installations where consistent magnetic actuation, mechanical durability, and long operational life are needed. Unlike miniature or PCB-level reed switches used in electronic devices, the 1L-MSM-112 is customized for physical mounting on doors, panels, enclosures, and industrial structures, making it ideal for field installations and wired sensing applications.

Outstanding Durability and Performance

The magnetic reed switch stands out with a mechanical life exceeding 10 million cycles, ensuring long-lasting performance in continuous or repetitive usage scenarios. Its ABS plastic construction offers strength, reliable insulation, and protection, making it ideal for harsh industrial or security environments. With a robust insulation resistance and a low contact resistance, signal integrity and device safety are maintained throughout its operational life.

Versatile Mounting and Application

Engineered for convenience, the switch supports surface mounting using screws or optional adhesive tape, allowing for quick and secure installations on doors, windows, or equipment panels. Its adaptability makes it suitable for integration into security systems, industrial automation, and access control applications, enabling seamless monitoring and reliable actuation wherever discrete, maintenance-free sensing is needed.

Safety, Efficiency, and Peace of Mind

Capable of handling up to 200 VDC and a maximum current of 0.5A with a fast 1-second response time, this magnetic reed switch offers dependable switching and monitoring. Its design supports temperature extremes (-40C to +85C), while providing the assurance of a 1-year warranty. Users benefit from reliable protection, easy installation, and robust performance, maximizing system safety and operational efficiency.

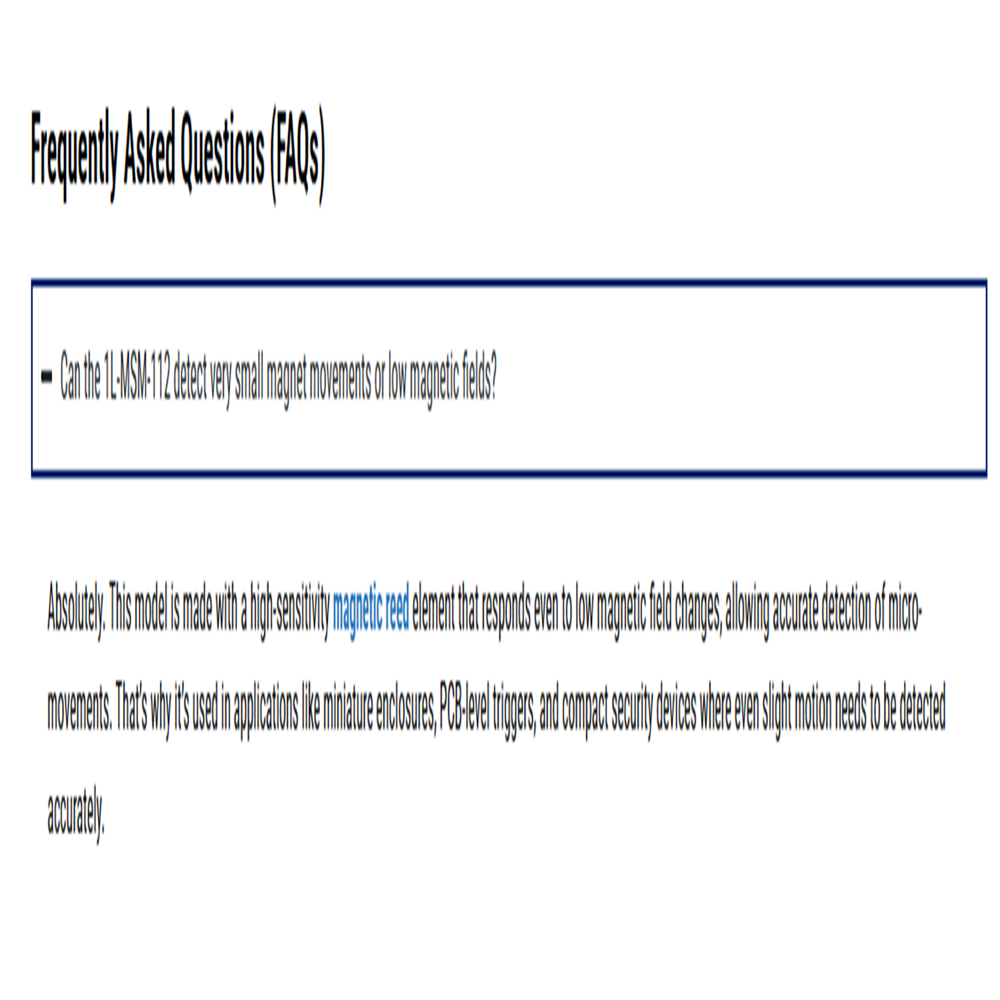

FAQ's of Surface Mount Design Magnetic Reed Switches NO:

Q: How do I install the Surface Mount Design Magnetic Reed Switch?

A: Installation is straightforward: the switch is designed for surface mounting and can be secured using screws or the optional adhesive tape supplied. This flexibility allows quick attachment to doors, windows, panels, or other flat surfaces in residential, industrial, or commercial applications.

Q: What are the primary uses for this magnetic reed switch?

A: This reed switch is particularly suited for security systems (such as door and window monitoring), industrial automation processes, and access control devices, offering reliable and discreet monitoring capabilities in a variety of environments.

Q: Where can the magnetic reed switch be effectively deployed?

A: Thanks to its wide temperature range (-40C to +85C) and robust ABS plastic housing, this switch can be installed both indoors and outdoors, including harsh industrial settings, commercial premises, and residential properties requiring security or automation.

Q: What benefits does the high mechanical life provide?

A: With an operational life exceeding 10 million cycles, the switch ensures minimal maintenance and long-term reliability, reducing downtime and replacement costs in demanding applications that require frequent actuation.

Q: What is the process for connecting the reed switch in a circuit?

A: To connect, integrate the wire leads into your low-voltage control circuit, adhering to the rated voltage (200VDC) and current (0.5A). Ensure the monitored device or surface contains a suitable magnet for reliable activation.

Q: What makes this reed switch suitable for safety systems?

A: Its quick response time (1 second), low contact resistance, high insulation, and rated protection level contribute to accurate and safe operation, which are essential attributes for dependable alarm, monitoring, and automation systems.
