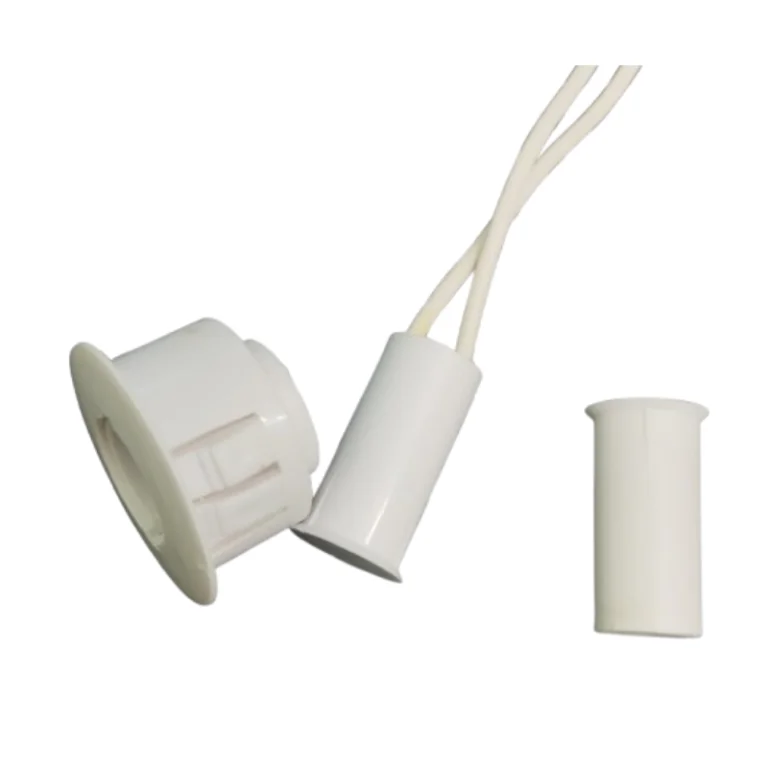

3/8 Dia with Adaptor Holder Recessed Mount Magnetic Switch

3/8 Dia with Adaptor Holder Recessed Mount Magnetic Switch

Name: Magnetic Door Switch
Brand: 1 LEAP Technologies
Price: 120 INR
Availability: InStock

225.0 INR/Piece

Get a Price/Quote

Product Details:

Mechanical Life Over 10 million cycles Years
Number of Module Single
Max. Current 0.5 A Ampere (amp)
Protection Level IP40
Product Type Magnetic Door Switch
Insulation Resistance 10 9 ohms
Contact Resistance 150 milli ohms Ohm ()
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

3/8 Dia with Adaptor Holder Recessed Mount Magnetic Switch Price And Quantity

Price 225.0 INR/Piece
Minimum Order Quantity 10 Piece

Switch Type Reed
Contact Form NO
Usage/Application Security, Industrial
Operate Distance 20 mm
Mounting Options Double side tape
Switch Configuration SPST
Housing Material ABS
Application Scope Home/Industry
Use Case Door/Window Sensor
Protection Class IP40
Suitable For Shutter/Cylinder
Model Number 1L-910MS
Cable Length 0.5 m

3/8 Dia with Adaptor Holder Recessed Mount Magnetic Switch Product Specifications

Weight 100 Grams (g)
No Of Poles Single Pole
Mounting Type Surface mount
Product Type Magnetic Door Switch
Mechanical Life Over 10 million cycles Years
Color White
Cable Type Wired
Size Compact
Max. Current 0.5 A Ampere (amp)
Max. Voltage 200 VDC Volt (V)
Number of Module Single
Frequency 50 Hertz (HZ)
Material ABS Plastic
Contact Resistance 150 milli ohms Ohm ()
Protection Level IP40
Insulation Resistance 10 9 ohms

Switch Type Reed
Contact Form NO
Usage/Application Security, Industrial
Operate Distance 20 mm
Mounting Options Double side tape
Switch Configuration SPST
Housing Material ABS
Application Scope Home/Industry
Use Case Door/Window Sensor
Protection Class IP40
Suitable For Shutter/Cylinder
Model Number 1L-910MS
Cable Length 0.5 m

3/8 Dia with Adaptor Holder Recessed Mount Magnetic Switch Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

The 1L-MSR-104H Recessed Mount Magnetic Switch is a specially engineered magnetic reed switch sensor manufactured by 1 LEAP Technologies, a recognized sensor and reed manufacturer for industrial, architectural, and marine applications. This model has been developed for installations where surface mounting is not practical, where mechanical protection is essential, and where a wide and forgiving operating gap is required for consistent performance.
