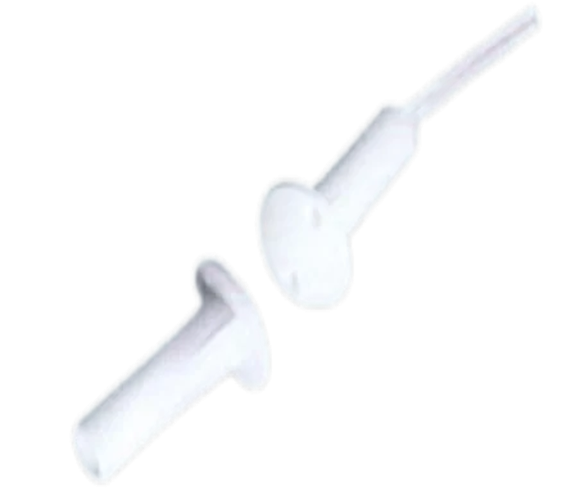

Collar Flange Recessed Mount Magnetic Reed Switch

Collar Flange Recessed Mount Magnetic Reed Switch

Name: Collar Flange Recessed Mount Magnetic Reed Switch
Brand: 1 LEAP Technologies
Price: 230.0 INR
Availability: InStock

230.0 INR/Piece

Get a Price/Quote

Product Details:

Max. Current 0.5 Amp. Ampere (amp)
Circuit Type NO
Mechanical Life Over 10 million cycles Years
Number of Module 1
Protection Level IP60
Response Time 0.1 Seconds
Product Type Magnetic Reed Switches
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Collar Flange Recessed Mount Magnetic Reed Switch Price And Quantity

Minimum Order Quantity 5 Piece
Price 230.0 INR/Piece

Color Brown
Wired Yes
Door Type Wooden/Metal Compatible
Compact Design Yes
Actuation Distance 10-15mm
Switch Type SPST
Application Door Security
Current Rating 10W/VA
Cable Length Approx. 30cm
Model Name/Number 1L-MSM-116 BR NO
Contact Form SPST

Collar Flange Recessed Mount Magnetic Reed Switch Product Specifications

Product Type Magnetic Reed Switches
Color White
Warranty 1 Year
Contact Resistance 150 milli ohms Ohm ()
Mounting Type Surface Mount
Response Time 0.1 Seconds
Max. Voltage 200 VDC Volt (V)
Size Medium
Material ABS Plastic
No Of Poles Single Pole
Protection Level IP60
Number of Module 1
Weight 100 Grams (g)
Insulation Resistance 10 9 ohms
Mechanical Life Over 10 million cycles Years
Circuit Type NO
Cable Type wired
Frequency 50 Hertz (HZ)
Max. Current 0.5 Amp. Ampere (amp)

Color Brown
Wired Yes
Door Type Wooden/Metal Compatible
Compact Design Yes
Actuation Distance 10-15mm
Switch Type SPST
Application Door Security
Current Rating 10W/VA
Cable Length Approx. 30cm
Model Name/Number 1L-MSM-116 BR NO
Contact Form SPST

Collar Flange Recessed Mount Magnetic Reed Switch Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 3 Days
Main Domestic Market All India

Product Description

The 1L-MSR-103 Recessed Mount Magnetic Switch by 1 LEAP Technologies is a high-performance industrial magnetic switch made for accurate position sensing in fixed and heavy-duty environments. This model is specifically designed to be installed inside a drilled cavity, allowing the switch to remain flush with the mounting surface while making sure an excellent mechanical protection and long-term reliability.
