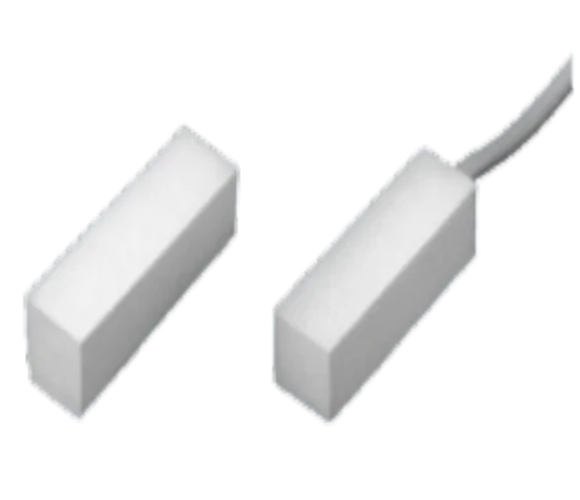

surface-mount contacts Magnetic Reed Switches

surface-mount contacts Magnetic Reed Switches

Name: Lift Elevator Reed Switch
Brand: 1 LEAP Technologies
Price: 120 INR
Availability: InStock

550.0 INR/Piece

Get a Price/Quote

Product Details:

Number of Module 1
Protection Level IP60
Max. Current 0.5 Amp Ampere (amp)
Mechanical Life Over 10 million cycles Seconds
Product Type Magnetic Reed Switches
Material ABS Plastic
Insulation Resistance 10 9 ohms
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

surface-mount contacts Magnetic Reed Switches Price And Quantity

Price 550.0 INR/Piece
Minimum Order Quantity 5 Piece

Model Name/Number 1L-MSM-116 BR
Switching current 0.5 A
Tube length 14 mm
Operate distance 15 mm
Lead type Straight leads
Contact material Rhodium

surface-mount contacts Magnetic Reed Switches Product Specifications

Cable Type Wired
Size Medium
Material ABS Plastic
Weight 100 Grams (g)
Max. Voltage 200 VDC Volt (V)
Mechanical Life Over 10 million cycles Seconds
Protection Level IP60
Warranty 1 Year
Contact Resistance 150 milli ohms Ohm (Ω)
Max. Current 0.5 Amp Ampere (amp)
Number of Module 1
Product Type Magnetic Reed Switches
No Of Poles Single Pole
Color White
Insulation Resistance 10 9 ohms
Mounting Type Surface Mount

Model Name/Number 1L-MSM-116 BR
Switching current 0.5 A
Tube length 14 mm
Operate distance 15 mm
Lead type Straight leads
Contact material Rhodium

surface-mount contacts Magnetic Reed Switches Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

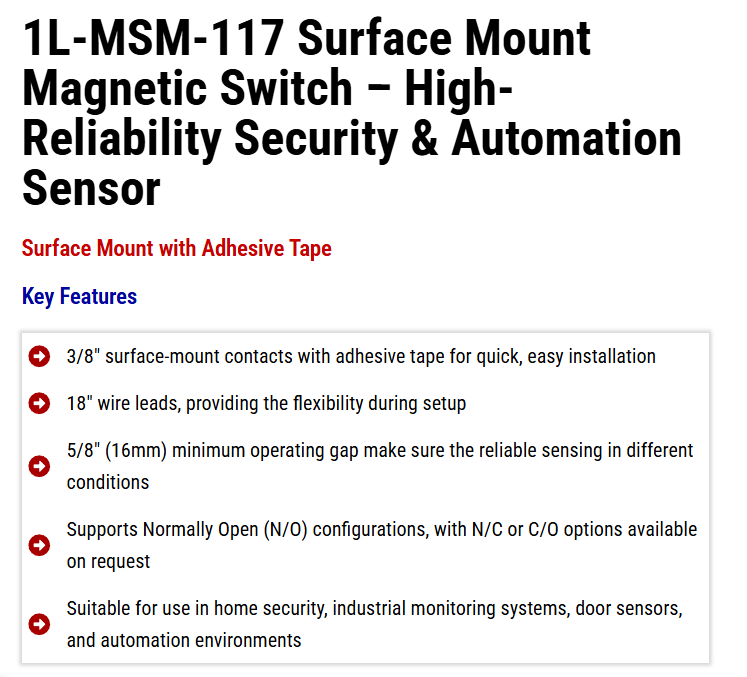

The 1L-MSM-117 Surface Mount Magnetic Switch from 1 LEAP Technologies is customized for high-quality security, monitoring, and automation applications. Made by the use of high-quality materials such as ABS plastic and stainless steel, this magnetic contact switch provides the long-term durability, excellent electrical characteristics, and dependable activation performance. Whether youre building a new security management system, increasing a security panel, or rebuilding the legacy hardware, the 1L-MSM-117 provides accuracy and reliability. It is also a preferred option for installers searching for competitive magnetic switch price options without compromising on quality.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Magnetic Reed Switch' category

Epoxy Coated Magnet Recessed Mount Magnetic Switch Price : 230.0 INR/Piece Minimum Order Quantity : 5 Contact Resistance : 150 milli ohms Ohm (Ω) Warranty : 1 Year Protection Level : IP60 Color : White No Of Poles : Single Pole Max. Current : 0.5 Amp. Ampere (amp) Mechanical Life : Over 10 million cycles Years Material : ABS Mounting Type : Surface Max. Voltage : 200 VDC Volt (V) Size : Medium Product Type : Magnetic Reed Switches Response Time : 0.1 Seconds Cable Type : Wired Number of Module : 1 Weight : 100 Grams (g) Insulation Resistance : 10 9 ohms Features : Compact size, easy installation Frequency : 50 Hertz (HZ)

Send Inquiry

Surface Mount Design Magnetic Reed Switches NO Price : 150.0 INR/Piece Minimum Order Quantity : 1 Contact Resistance : 0.1 Ohm (Ω) Warranty : 1 Year Protection Level : ABS Plastic Color : White Max. Current : 0.5 A Ampere (amp) Mechanical Life : Over 10 million cycles Years Material : ABS Plastic Mounting Type : Surface Mount Max. Voltage : 200 VDC Volt (V) Size : Medium Product Type : Magnetic Switch Response Time : 1 Seconds Operating Temperature : 20 C to +70 C Celsius (oC) Cable Type : Wire Weight : 100 Grams (g) Temperature Range : 40 C to +85 C Celsius (oC) Rated Voltage : 200VDC Volt (V) Insulation Resistance : 10 9 ohms Circuit Type : Normal Power Rating : 0.5 A Features : Surface mount design with screw mounting and optional adhesive tape

Send Inquiry

Big Flange Mount Contact Magnetic Reed Switch NO Price : 130.0 INR/Piece Minimum Order Quantity : 1 Contact Resistance : 0.1 Ohm (Ω) Warranty : 1 Year Protection Level : IP60 Color : White No Of Poles : Single Pole Max. Current : 0.5 A Ampere (amp) Mechanical Life : Over 10 million cycles Seconds Material : ABS Plastic Mounting Type : Surface Mount Max. Voltage : 200 VDC Volt (V) Size : Medium Product Type : Wired Magnetic Switch Door Sensor Response Time : 0.1 Seconds Operating Temperature : 20 C to +70 C Celsius (oC) Cable Type : Wired Number of Module : 1 Weight : 100 Grams (g) Temperature Range : 40 C to +85 C Celsius (oC) Rated Voltage : 200 VDC Volt (V) Frequency : 50 Hertz (HZ)

Send Inquiry

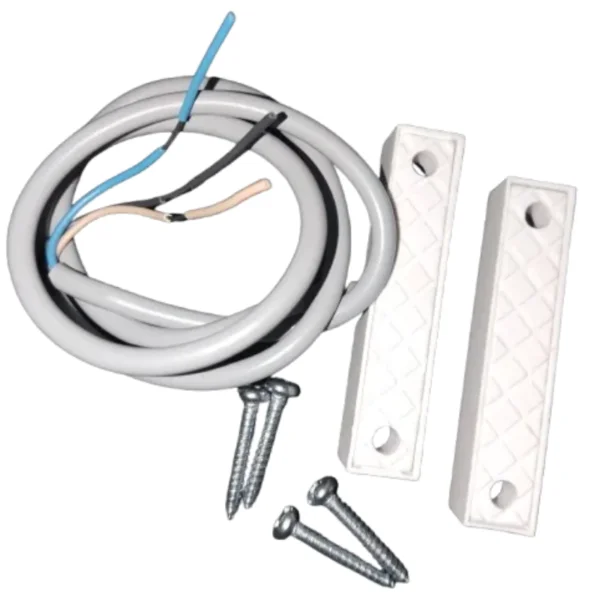

Magnetic Reed Switches NO/NC Price : 280.0 INR/Piece Minimum Order Quantity : 5 Contact Resistance : 115 m Ohm (Ω) Warranty : 1 Year Protection Level : IP60 Color : white, Grey Wire No Of Poles : Single Pole Max. Current : 0.25 A Ampere (amp) Mechanical Life : Over 10 million cycles Years Material : ABS Plastic Mounting Type : Surface Mount Max. Voltage : 60 VDC Volt (V) Size : Medium Product Type : NO/NC Response Time : 0.1 Seconds Operating Temperature : 20 C to +70 C Celsius (oC) Cable Type : PVC Number of Module : 1 Weight : 100 Grams (g) Circuit Type : NO/NC Power Rating : 4 W
