Magnetic Reed Switches NO/NC

280.0 INR/Piece

Get a Price/Quote

Product Details:

Protection Level IP60
Circuit Type NO/NC
Max. Current 0.25 A Ampere (amp)
Response Time 0.1 Seconds
Mechanical Life Over 10 million cycles Years
Number of Module 1
Product Type NO/NC
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Magnetic Reed Switches NO/NC Price And Quantity

Minimum Order Quantity 5 Piece
Price 280.0 INR/Piece

Magnetic Reed Switches NO/NC Product Specifications

Protection Level IP60
Product Type NO/NC
Circuit Type NO/NC
Max. Voltage 60 VDC Volt (V)
Power Rating 4 W
Size Medium
Max. Current 0.25 A Ampere (amp)
Response Time 0.1 Seconds
Mounting Type Surface Mount
Warranty 1 Year
Operating Temperature -20 C to +70 C Celsius (oC)
Color white, Grey Wire
Material ABS Plastic
Mechanical Life Over 10 million cycles Years
Contact Resistance 115 m Ohm ()
No Of Poles Single Pole
Weight 100 Grams (g)
Number of Module 1
Cable Type PVC

Magnetic Reed Switches NO/NC Trade Information

Delivery Time 3 Days

Product Description

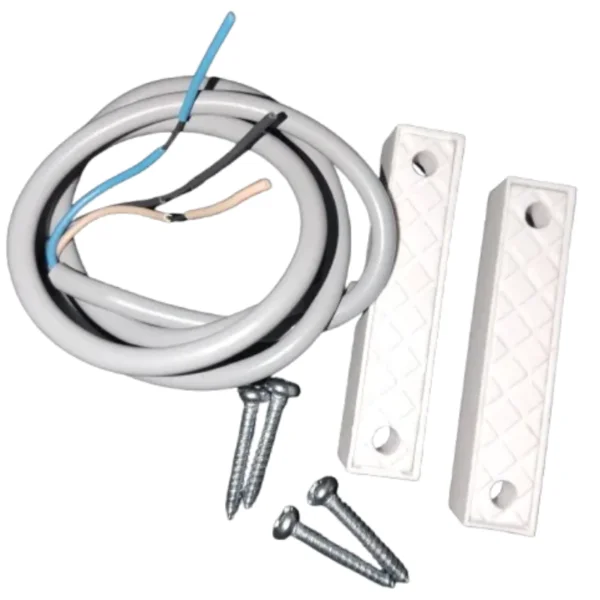

This model is manufactured with a strong ABS plastic housing and comes with pre-attached PVC-insulated lead wires, activating quick and secure electrical connections. The surface-mount different form factor allows easy installation on doors, panels, cabinets, and enclosures without altering the structure of the mounting surface.
