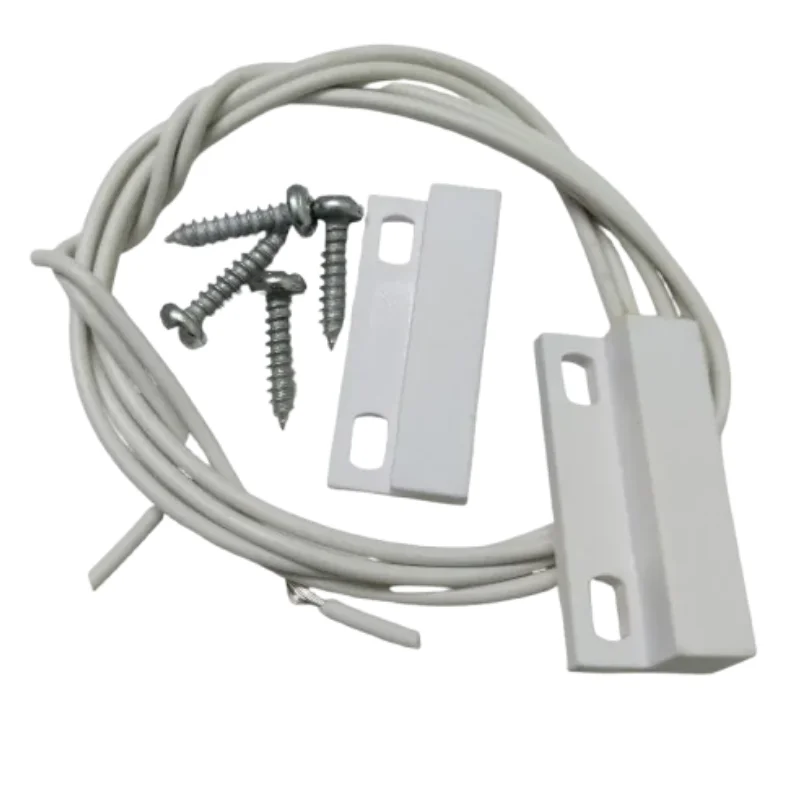

Stick-On Contact Flange NO Magnetic Reed Switch

Stick-On Contact Flange NO Magnetic Reed Switch

125.0 INR/Piece

Get a Price/Quote

Product Details:

Mechanical Life Over 10 million cycles Years
Max. Current 0.5 A Ampere (amp)
Response Time 0.1 Seconds
Protection Level IP60
Product Type NO
Material ABS Plastic
Contact Resistance 0.1 Ohm (Ω)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Stick-On Contact Flange NO Magnetic Reed Switch Price And Quantity

Price 125.0 INR/Piece
Minimum Order Quantity 5 Piece

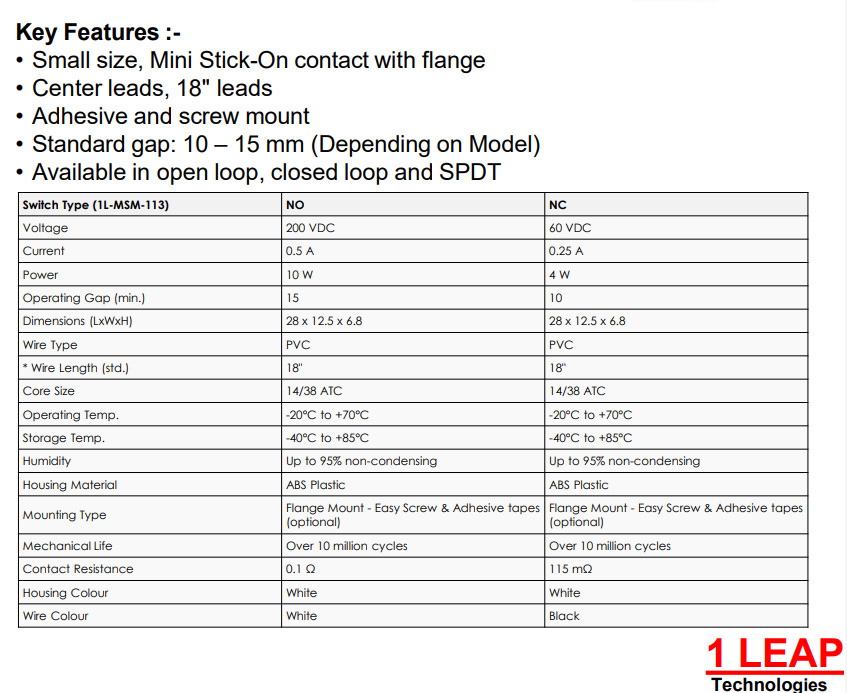

Stick-On Contact Flange NO Magnetic Reed Switch Product Specifications

Color White
Response Time 0.1 Seconds
Protection Level IP60
Max. Voltage 200 VDC Volt (V)
Product Type NO
Mounting Type Surface Mount
Max. Current 0.5 A Ampere (amp)
Operating Temperature -20 C to +70 C Celsius (oC)
Mechanical Life Over 10 million cycles Years
Contact Resistance 0.1 Ohm (Ω)
Weight 100 Grams (g)
Cable Type PVC
Warranty 1 Year
Material ABS Plastic
No Of Poles Single Pole
Size Medium

Stick-On Contact Flange NO Magnetic Reed Switch Trade Information

Delivery Time 3 Days

Product Description

The 1L-MSM-113 Surface Mount Magnetic Reed Switch by 1 LEAP Technologies is a specially custom magnetic sensing device designed for controlled, low-voltage DC switching applications.
