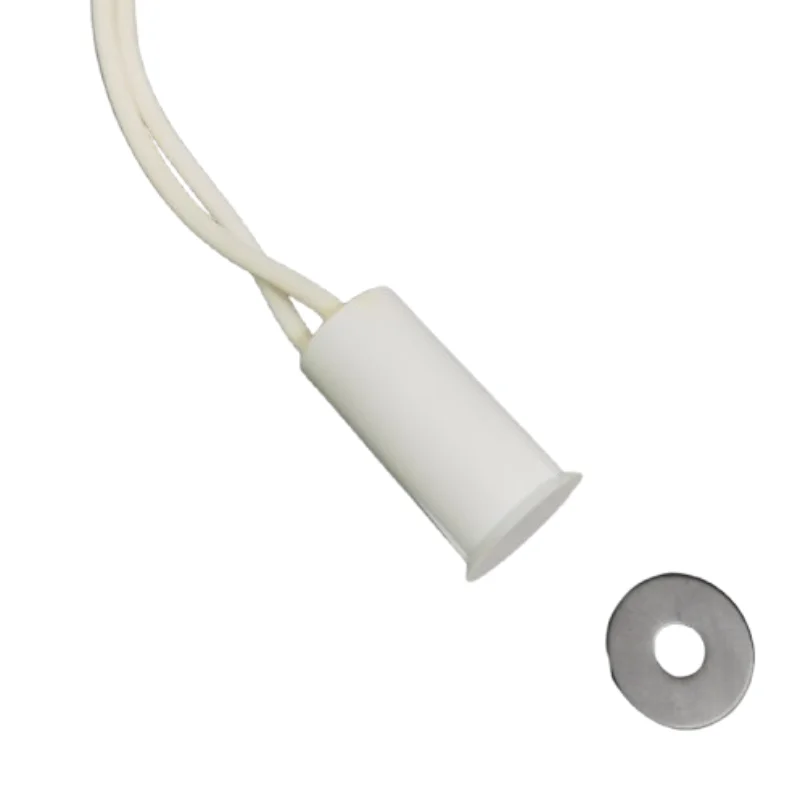

Epoxy Coated Recessed Mount Magnetic Switch

Epoxy Coated Recessed Mount Magnetic Switch

Name: Epoxy Coated Recessed Mount Magnetic Switch
Brand: 1 LEAP Technologies
Price: 230.0 INR
Availability: InStock

230.0 INR/Piece

Get a Price/Quote

Product Details:

Number of Module Single Module
Response Time 0.1 Seconds
Max. Current 0.5 Amp. Ampere (amp)
Temperature Range -40 C to +85 C Celsius (oC)
Protection Level IP60
Rated Voltage 10W/VA Volt (V)
Circuit Type Normal
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Epoxy Coated Recessed Mount Magnetic Switch Price And Quantity

Price 230.0 INR/Piece
Minimum Order Quantity 1 Piece

Control Type Reed Switch
Current Rating 10 W/VA
Model Number 1L-MSR-104-PF
Rated Voltage 200 VDC
Use Door/Window Security
Sensing Type Magnetic
Wire Type 3-Wire
Location Indoor
Body Shape Cylindrical
Finish Smooth Surface
Installation Press Fit Recessed
Contact Configuration NO (Normally Open)

Epoxy Coated Recessed Mount Magnetic Switch Product Specifications

Mounting Type Surface
Temperature Range -40 C to +85 C Celsius (oC)
Weight 100 Grams (g)
Response Time 0.1 Seconds
Contact Resistance 150 milli ohms Ohm ()
No Of Poles Single Pole
Rated Current 0.5 Ampere (amp)
Max. Current 0.5 Amp. Ampere (amp)
Current Rating 0.5 A
Number of Module Single Module
Material ABS Plastic
Mechanical Life Over 10 million cycles Years
Frequency 50 Hertz (HZ)
Operating Temperature -20 C to +70 C Celsius (oC)
Cable Type Wired
Warranty 1 Year
Circuit Type Normal
Rated Voltage 10W/VA Volt (V)
Max. Voltage 200 VDC Volt (V)
Insulation Resistance 10 9 ohms
Size Medium
Color White
Protection Level IP60
Product Type Magnetic Reed Switches

Control Type Reed Switch
Current Rating 10 W/VA
Model Number 1L-MSR-104-PF
Rated Voltage 200 VDC
Use Door/Window Security
Sensing Type Magnetic
Wire Type 3-Wire
Location Indoor
Body Shape Cylindrical
Finish Smooth Surface
Installation Press Fit Recessed
Contact Configuration NO (Normally Open)

Epoxy Coated Recessed Mount Magnetic Switch Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 3 Days
Main Domestic Market All India

Product Description

The 1L-MSR-104PF magnetic switch sensor features a 3/8 inch diameter press-fit body, enabling quick and secure installation without the need for screws, brackets, or surface fixtures. Once inserted into the pre-drilled hole, the switch holds firmly in place, reducing movement and minimizing installation time. This press-fit recessed design is especially valuable in projects where multiple sensors must be installed efficiently while maintaining consistent alignment.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Magnetic Reed Switch' category

Dia with Adaptor Holder Magnetic Reed Switch Price : 225.0 INR/Piece Minimum Order Quantity : 5 Mounting Type : Panel Mount Weight : 100 Grams (g) Response Time : 1 ms Seconds No Of Poles : Single Pole Max. Current : 0.5 Amp. Ampere (amp) Material : ABS Plastic Mechanical Life : 1,000,000 operations min. Years Warranty : 1 YEAR Max. Voltage : 200 VDC Volt (V) Size : 44mm x 10mm x 6mm (approx.) Color : White Protection Level : IP67 Product Type : Magnetic Reed Switch Contact Resistance : 150 milli ohms Ohm () Number of Module : 1 Cable Type : Wire Operating Temperature : 20 C to +70 C Celsius (oC) Circuit Type : Normally Open (NO) Insulation Resistance : 10 9 ohms Temperature Range : 40 C to +85 C Celsius (oC) Current Rating : 0.5A Max Frequency : 20G ( 10 to 1000Hz) Hertz (HZ) Rated Voltage : 200 VDC Volt (V) Finish Type : Matte Rated Current : 200 VDC Volt (v) Power Rating : 200 VDC

Send Inquiry

Recessed Mount Magnetic Contact Price : 230.0 INR/Piece Minimum Order Quantity : 1 Mounting Type : Recessed (Bottom Mount) Weight : 100 Grams (g) Response Time : 0.1 Seconds No Of Poles : Single Pole Max. Current : 0.5 Amp. Ampere (amp) Material : ABS Plastic Mechanical Life : Over 10 million cycles Years Warranty : 1 Year Max. Voltage : 200 VDC Volt (V) Size : Medium Color : White Protection Level : IP60 Product Type : Magnetic Contact Contact Resistance : 150 milli ohms Ohm () Cable Type : wired Operating Temperature : 20 C to +70 C Celsius (oC) Circuit Type : Normal Insulation Resistance : 10 9 ohms Temperature Range : 40 C to +85 C Celsius (oC) Frequency : 50 Hertz (HZ) Rated Voltage : 10W/VA Volt (V) Rated Current : 0.5 Amp. Ampere (amp)

Send Inquiry

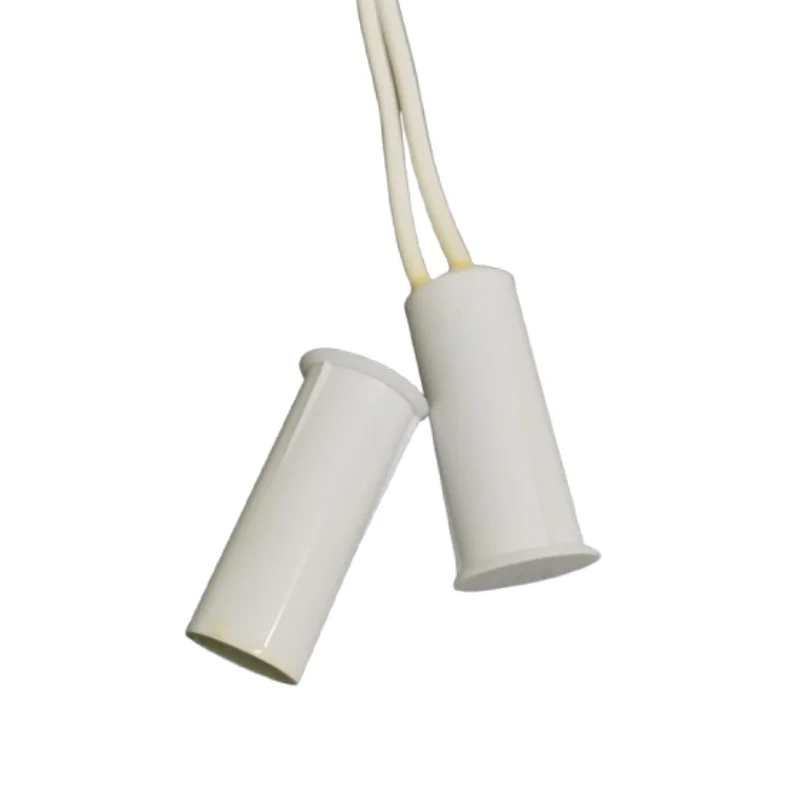

Long Wire Leads Recessed Mount Magnetic Switch Price : 235.0 INR/Piece Minimum Order Quantity : 5 Mounting Type : Surface mount Weight : 100 Grams (g) Response Time : 0.1 Seconds No Of Poles : SPST Max. Current : 0.5 A Ampere (amp) Material : ABS Plastic Mechanical Life : Over 10 million cycles Seconds Warranty : 1 Year Max. Voltage : 200 VDC Volt (V) Size : Standard, compact Color : White Protection Level : IP40 Product Type : Non Contact Magnetic Safety Switch Contact Resistance : 150 milli ohms Ohm () Number of Module : 1 Cable Type : Wired Circuit Type : NO (Normally Open) Insulation Resistance : 10 9 ohms Current Rating : 10W/VA Frequency : 50 Hertz (HZ) Rated Voltage : 200 VDC Volt (V) Finish Type : Smooth ABS finish
