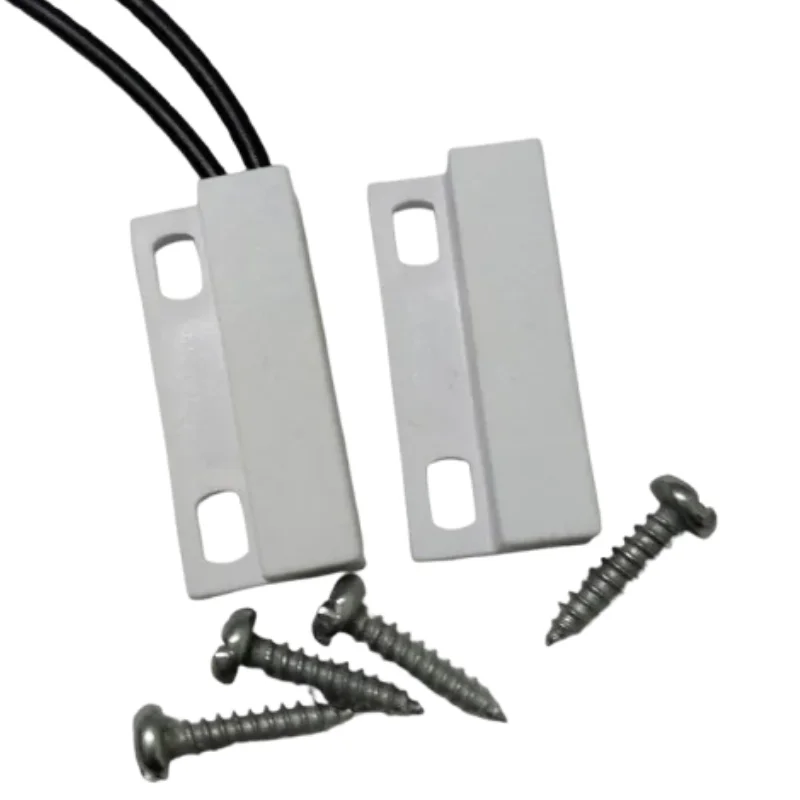

Stick-On Contact Flange NC Magnetic Reed Switch

Stick-On Contact Flange NC Magnetic Reed Switch

225.0 INR/Piece

Get a Price/Quote

Product Details:

Response Time 0.1 Seconds
Number of Module 1
Protection Level IP60
Mechanical Life Over 10 million cycles Years
Max. Current 0.25 A Ampere (amp)
Product Type NC
Contact Resistance 115 m Ohm (Ω)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Stick-On Contact Flange NC Magnetic Reed Switch Price And Quantity

Price 225.0 INR/Piece
Minimum Order Quantity 5 Piece

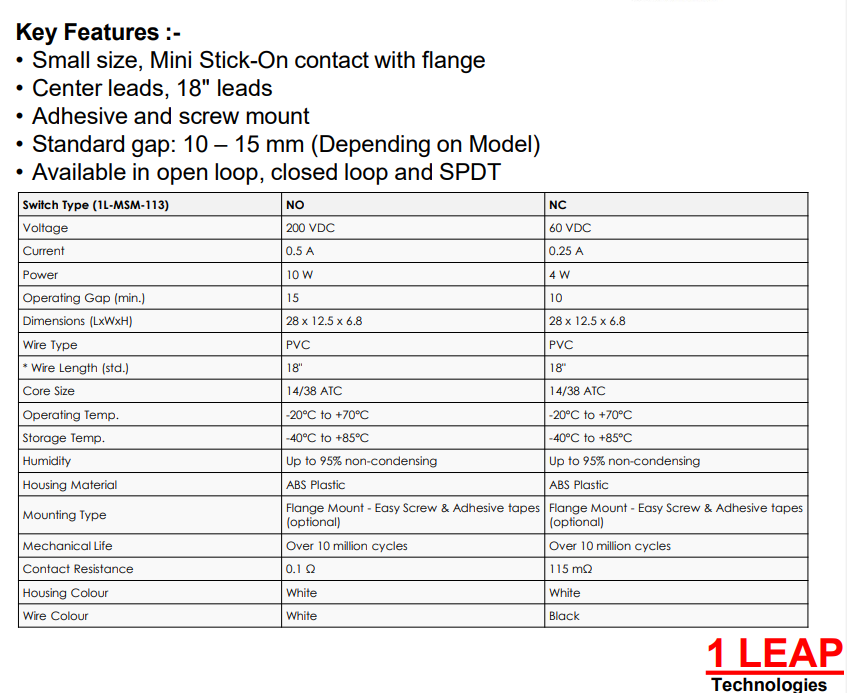

Stick-On Contact Flange NC Magnetic Reed Switch Product Specifications

Current Rating 0.25 A
Warranty 1 Year
No Of Poles Single Pole
Color White
Max. Current 0.25 A Ampere (amp)
Weight 100 Grams (g)
Mounting Type Surface Mount
Product Type NC
Mechanical Life Over 10 million cycles Years
Operating Temperature -20 C to +70 C Celsius (oC)
Number of Module 1
Max. Voltage 60 VDC Volt (V)
Material ABS Plastic
Protection Level IP60
Cable Type PVC
Contact Resistance 115 m Ohm (Ω)
Response Time 0.1 Seconds
Size Medium

Stick-On Contact Flange NC Magnetic Reed Switch Trade Information

Delivery Time 3 Days

Product Description

Unlike generic magnetic reed switches, the 1L-MSM-113 is developed with a clearly defined electrical and mechanical operating range, makes sure the dependable switching behavior without compromising contact life or system safety. The product is available in both Normally Open (NO) and Normally Closed (NC) configurations, allowing flexibility in system design based on application logic.
