Dia with Adaptor Holder Magnetic Reed Switch

Send Inquiry

Request To Call Back

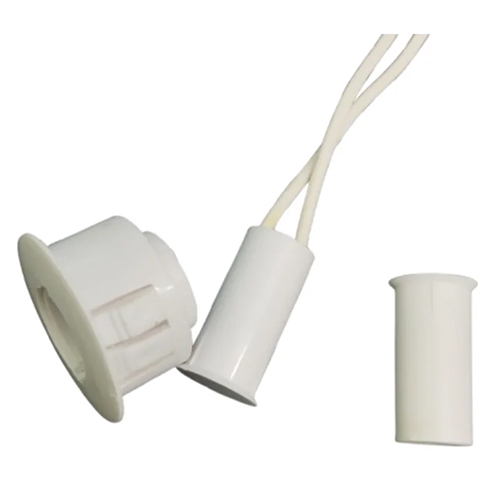

Dia with Adaptor Holder Magnetic Reed Switch

Name: Dia with Adaptor Holder Magnetic Reed Switch
Brand: 1 LEAP Technologies
Price: 225.0 INR
Availability: InStock

Price 225.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

Dia with Adaptor Holder Magnetic Reed Switch Specification

Rated Voltage
200 VDC Volt (V)

Protection Level
IP67

Max. Current
0.5 Amp. Ampere (amp)

Finish Type
Matte

Number of Module
1

Temperature Range
-40 C to +85 C Celsius (oC)

Automation Grade
Automatic

Response Time
1 ms Seconds

Circuit Type
Normally Open (NO)

Mechanical Life
1,000,000 operations min. Years

Power Rating
200 VDC

Product Type
Magnetic Reed Switch

Insulation Resistance
10 9 ohms

Contact Resistance
150 milli ohms Ohm ()

Max. Voltage
200 VDC Volt (V)

Warranty
1 YEAR

Stoke
10~20mm

Size
44mm x 10mm x 6mm (approx.)

Usage & Applications
Industrial Structural Monitoring

Cable Type
Wire

Color
White

Operating Temperature
-20 C to +70 C Celsius (oC)

Weight
100 Grams (g)

Display Type
Simple

Phase
Normal

Frequency
20G ( 10 to 1000Hz) Hertz (HZ)

Material
ABS Plastic

Rated Current
200 VDC Volt (v)

Conductor
NA

Features
Exclusive

Mounting Type
Panel Mount

Current Rating
0.5A Max

No Of Poles
Single Pole

Shock Resistance
30G min.

Insulation Class
Class A

Switching Voltage
100V DC/AC Max

Switching Power
10W Max

Lead Wire Length
300mm

Housing Material
Thermoplastic ABS

Vibration Resistance
10~55Hz, 1.5mm amplitude

Contact Form
SPST (Single Pole Single Throw)

Magnet Type
Permanent Magnet (Included)

Dia with Adaptor Holder Magnetic Reed Switch Trade Information

Minimum Order Quantity
5 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
4 Days

About Dia with Adaptor Holder Magnetic Reed Switch

The 1L-MSR-104H Recessed Mount Magnetic Switch is a specially engineered magnetic reed switch sensor manufactured by 1 LEAP Technologies, a recognized sensor and reed manufacturer for industrial, architectural, and marine applications. This model has been developed for installations where surface mounting is not practical, where mechanical protection is essential, and where a wide and forgiving operating gap is required for consistent performance.

Durable Design and Superior Performance

Engineered with a thermoplastic ABS housing, this reed switch is crafted for both durability and reliable operation in harsh industrial environments. It features a magnetic actuator, comes with a 300mm lead wire, and can withstand mechanical shocks up to 30G and vibrations from 10 to 55Hz. Its IP67 ingress protection rating ensures it can resist dust and water, making it ideal for outdoor or demanding monitoring setups.

Versatile Applications in Industrial Monitoring

With its precise and fast 1 ms response time, this magnetic reed switch is perfectly suited for industrial structural monitoring. The device's normally open SPST contact form makes it highly adaptable for integration into automated systems. Common uses include safety interlock sensing, position detection, and automation feedback circuits where reliability and longevity are required.

FAQ's of Dia with Adaptor Holder Magnetic Reed Switch :

Q: How does the magnetic reed switch with adaptor holder operate?

A: This switch uses a permanent magnet and a reed element to detect changes in position or proximity. When the magnet approaches the reed, the contacts close, creating an electrical connection. It operates as a single pole single throw (SPST), normally open circuit, closing the circuit when activated.

Q: What are the recommended usage environments for this reed switch?

A: The switch supports operation in ambient humidity between 35% and 85% RH and within a temperature range of -40C to +85C. Its IP67 protection rating allows for use in outdoor, industrial, and moist or dusty settings without performance degradation.

Q: Where can this reed switch be mounted, and what is its primary application?

A: It is designed for panel mounting, making it suitable for control cabinets, machinery housings, and other industrial monitoring setups. Its primary applications are in industrial structural monitoring, safety interlocks, and position sensing.

Q: What benefits does this reed switch offer over conventional switches?

A: This device provides rapid response (1 ms), high reliability (over 1,000,000 operations), and robust resistance to vibration and shocks (up to 30G). The IP67 rating offers exceptional environmental protection, and the included permanent magnet simplifies installation.

Q: How does the switch ensure electrical safety and reliability?

A: The switch features Class A insulation, an insulation resistance of 109 ohms, and a contact resistance of only 150 milli-ohms, which collectively help to prevent electrical faults and ensure stable, long-term performance in demanding environments.

Q: What are the power and current handling capabilities of this reed switch?

A: It is rated for a switching power of up to 10W, with a maximum voltage of 200V DC and maximum current of 0.5A. This makes it suitable for a variety of industrial low-voltage signaling applications.

Q: What warranty is included with this product?

A: The magnetic reed switch comes with a 1-year manufacturer's warranty, providing assurance of quality and after-sales support from the supplier in India.
