Steel door contact Recessed Mount Magnetic Switch

Steel door contact Recessed Mount Magnetic Switch

225.0 INR/Piece

Get a Price/Quote

Product Details:

Max. Current 0.5 Amp. Ampere (amp)
Protection Level IP60
Mechanical Life Over 10 million cycles Years
Number of Module 1
Product Type Magnetic Switch
Material ABS Plastic
Insulation Resistance 10 9 ohms
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Steel door contact Recessed Mount Magnetic Switch Price And Quantity

Price 225.0 INR/Piece
Minimum Order Quantity 1 Piece

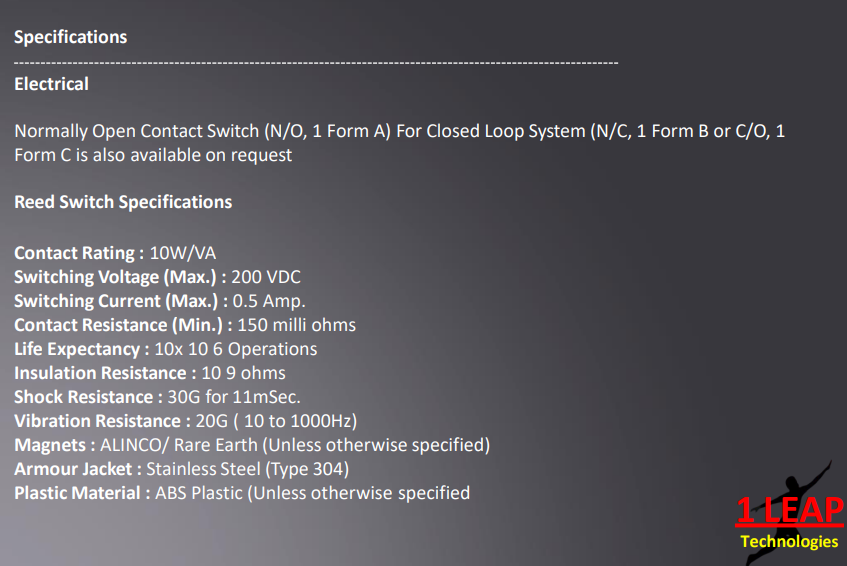

Steel door contact Recessed Mount Magnetic Switch Product Specifications

Color White
Mounting Type Recessed Mount
Max. Current 0.5 Amp. Ampere (amp)
Warranty 1 Year
Protection Level IP60
Mechanical Life Over 10 million cycles Years
Weight 100 Grams (g)
Number of Module 1
Contact Resistance 150 milli ohms Ohm (Ω)
No Of Poles Single Pole
Insulation Resistance 10 9 ohms
Material ABS Plastic
Product Type Magnetic Switch
Max. Voltage 200 VDC Volt (V)
Size Medium

Steel door contact Recessed Mount Magnetic Switch Trade Information

Delivery Time 3 Days

Product Description

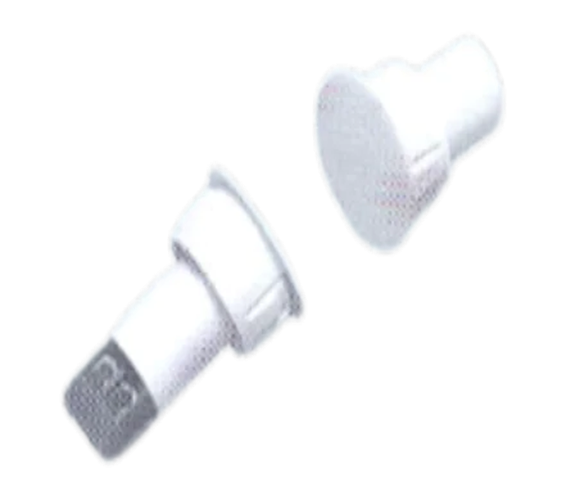

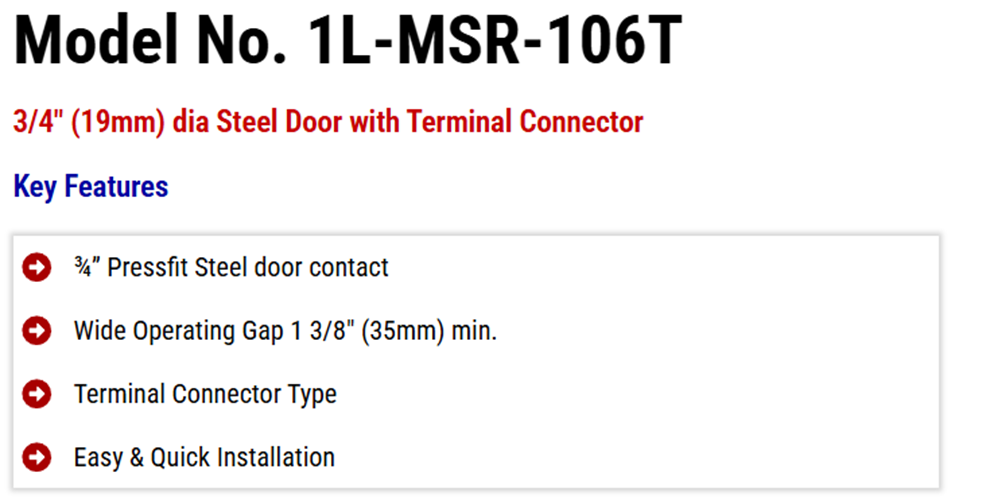

The 1L-MSR-106T is a recessed mount magnetic switch specifically engineered for industrial steel door applications and architectural installations. Designed with a press fit steel door contact, this model installs flush within the mounting surface, providing a concealed, secure, and tamper-resistant solution.
