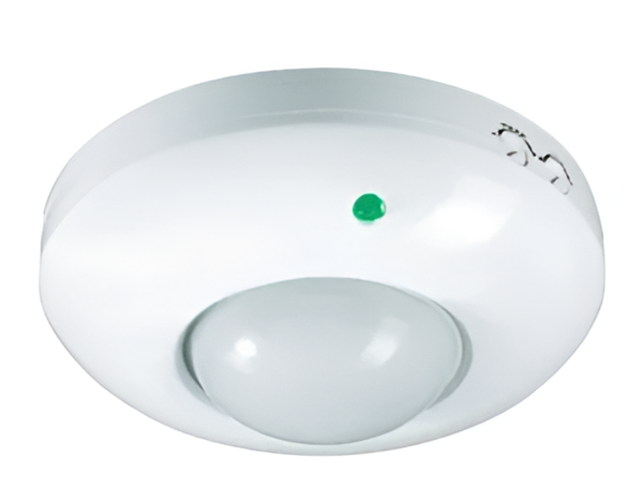

Ceiling Mount Pir Sensor 360

Price 450.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

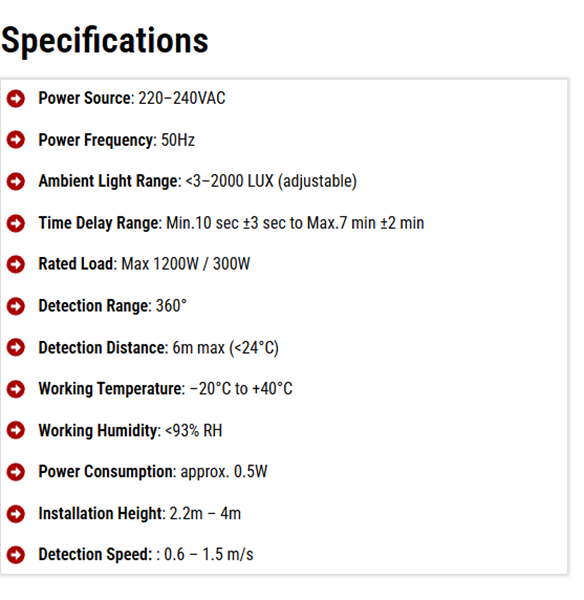

Ceiling Mount Pir Sensor 360 Specification

Sensitivity
Adjustable

Signal Type
Digital

Response Time
<1 second Seconds

Sensor Type
Passive Infrared (PIR)

Application
Home, office, corridor, security

IP Rating
IP44

Wireless
No

Measurement Range
Up to 10 meters

Power Consumption
0.5W Watt (W)

Cable Length
18 Inch (in)

Mounting Type
Wall or ceiling mount

Interface
Wired

Operating Temperature
-20C to +50C Celsius (oC)

Features
Adjustable detection angle, time delay

Product Type
Motion Sensor

Material
ABS Plastic Material

Input
220V AC, 50Hz

Output
240VAC

Function
Detects motion and triggers output

Usage
Indoor automatic lighting, security systems

Accuracy
Maximum Accuracy %

Resolution
Adjustable sensitivity

Voltage
220 240VAC Volt (v)

Rated Voltage
0.5W Watt (W)

Weight
250 Grams (g)

Cable Type
Wired

Warranty
1 Year

Frequency
50 Hertz (HZ)

Humidity Tolerance
<93% RH, non-condensing

Installation Height
2.2-4m recommended

Detection Angle
120 degrees

Dimensions
Approx. 86mm x 86mm x 53mm

Color
White

Load Capacity
Maximum 1200W incandescent, 300W fluorescent

Light Control
3 to 2000 Lux adjustable

Time Delay Adjustment
10 seconds to 7 minutes

Ceiling Mount Pir Sensor 360 Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
3 Days

About Ceiling Mount Pir Sensor 360

The 1L-PS01 360Ceiling Mount PIR Motion Sensor is a high clarity lighting automation device engineered for effective motion detection and energy management. Designed by a trusted Sensor Manufacturer, this model combines a modern sensitivity detector with a dependable united circuit system to provide the perfect blend of ease, safety, automation, and energy savings. The 1L-PS01 operates on passive infrared (PIR) detection technology. PIR Motion Sensors identify changes in infrared radiation reduces by the human body. When a person moves within the sensing field, the variation in infrared energy triggers the sensor and activates the load immediately.
