Send InquiryThe 1L-PS10 PIR Motion Sensor Detector is a high-quality automation device designed for save energy and increases safety. Using modern infrared technology, this sensor detects human body movement and instantly activates connected loads such as lights, alarms, or automation systems. Whether for residential, commercial, or industrial environments, the 1L-PS10 combines stable performance with huge usability, making it a reliable option for modern automation setups. This Pir Sensor adopts a high-sensitivity detector and merged with the circuit to provide automatic switching based on human motion. By identifying infrared energy emitted by the human body, the device activates lighting or connected devices immediately upon motion detection. It also differentiates between day and night through adjustable LUX settings, ensuring smart operation and maximum energy efficiency.

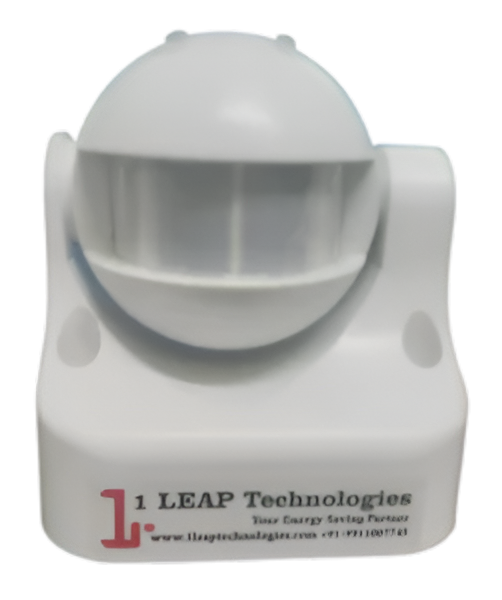

Wall Mount PIR Motion Sensor 180
Price 450.0 INR/ Piece
MOQ : 1 Piece

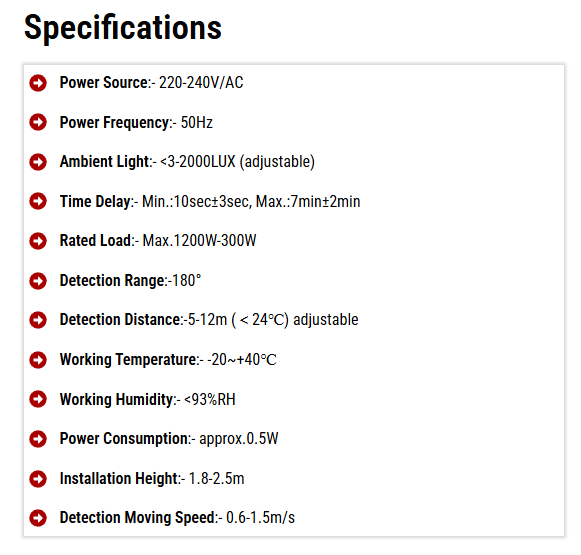

Wall Mount PIR Motion Sensor 180 Specification
- Sensor Type
- Passive Infrared (PIR)
- Cable Length
- 18 Inch (in)
- Wireless
- No
- Application
- Residential, Commercial, Office, Hallway
- Operating Temperature
- -20~+40 Celsius (oC)
- Measurement Range
- Up to 12 meters
- Mounting Type
- Wall Mount
- Features
- Adjustable Time Delay, Ambient Light Override, Energy Saving
- Signal Type
- Digital
- Response Time
- <1 sec Seconds
- Sensitivity
- Adjustable
- Power Consumption
- 0.5W Watt (W)
- IP Rating
- IP44
- Interface
- Terminal Block
- Product Type
- PIR Sensor
- Material
- ABS Plastic Housing
- Input
- 220-240V AC,
- Output
- 240VAC
- Function
- Motion Detection
- Usage
- Automatic Lighting Control
- Accuracy
- High Precision Detection %
- Resolution
- Infrared Sensing
- Voltage
- 220-240V AC Volt (v)
- Rated Voltage
- 220-240V AC Volt (V)
- Weight
- 200 Grams (g)
- Warranty
- 1 Year
- Cable Type
- Wired
- Frequency
- 50 Hertz (HZ)
- Time Delay Setting
- 10 seconds to 7 minutes (adjustable)
- Relay Contact Rating
- 6A @ 230V AC
- Installation Height
- 2.2-4 meters recommended
- Life Expectancy
- >100,000 operations
- Color
- White
- Detection Angle
- Up to 360 (Ceiling Mount), 120 (Wall Mount)
- Dimensions
- 105mm x 53mm (approx.)
- Humidity Range
- <93% RH (non-condensing)
Wall Mount PIR Motion Sensor 180 Trade Information
- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 1000 Pieces Per Month
- Delivery Time
- 3 Days
About Wall Mount PIR Motion Sensor 180
