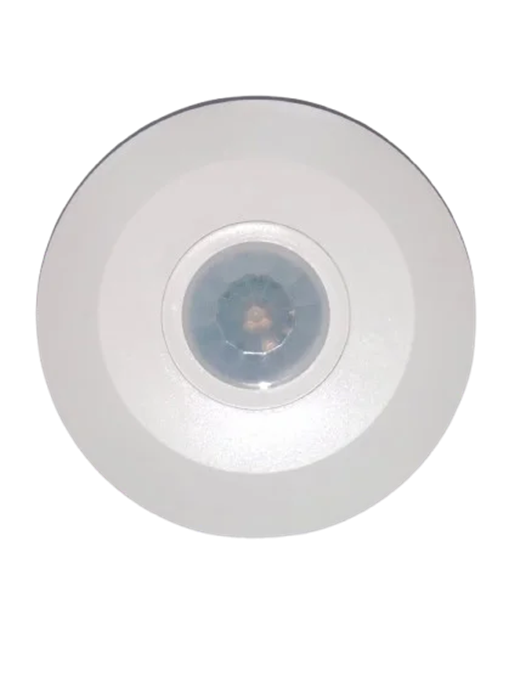

Ceiling Mount PIR Sensor

Name: 1 LEAP Ceiling Mount Occupancy Sensor
Brand: 1 LEAP Technologies
Price: 1450 INR
Availability: InStock

479.0 INR/Piece

Get a Price/Quote

Product Details:

Mounting Type Ceiling
Power Consumption 0.5W Watt (W)
Application Commercial Buildings
Wireless Yes
Operating Temperature -20 to +40 Deg C Celsius (oC)
Signal Type Other
Response Time 0.1 Seconds
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Ceiling Mount PIR Sensor Price And Quantity

Minimum Order Quantity 1 Unit
Price 479.0 INR/Piece

Model 1L-PS04
Time Delay 10 sec-30 min
Ambient Light 30-200 Lux
Detection Distance 20 meter
Rated Load 2000 W
Detection Angle 360 Degree
Detection Range 20 m
Mounting Height 1.5-4 m

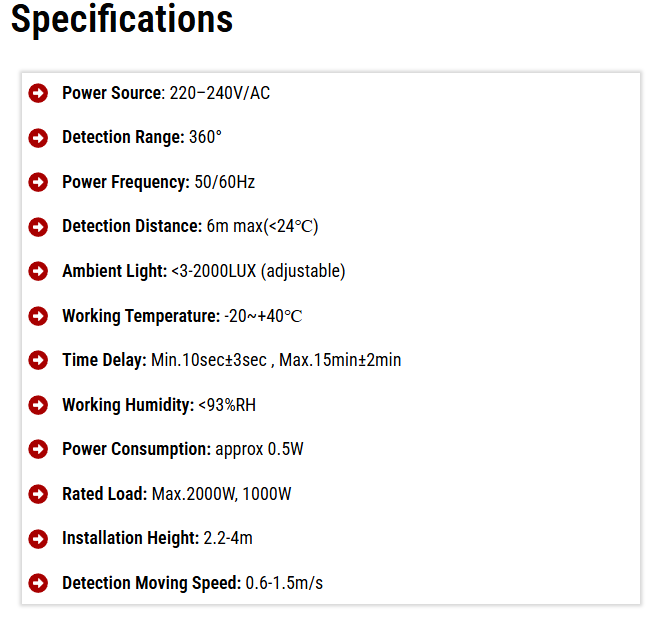

Ceiling Mount PIR Sensor Product Specifications

Output 220 V AC
Power Consumption 0.5W Watt (W)
Input 220 240V/AC
Mounting Type Ceiling
Product Type Motion Sensor
Weight 100 Grams (g)
Voltage 220-240 V AC Volt (v)
Signal Type Other
Material ABS Plastic
Operating Temperature -20 to +40 Deg C Celsius (oC)
Sensor Type PIR & Microwave
Response Time 0.1 Seconds
Warranty 1 Year
Function Can identify day and night: The consumer can adjust working state in different ambient light.
Accuracy 100 %
Application Commercial Buildings
Wireless Yes

Model 1L-PS04
Time Delay 10 sec-30 min
Ambient Light 30-200 Lux
Detection Distance 20 meter
Rated Load 2000 W
Detection Angle 360 Degree
Detection Range 20 m
Mounting Height 1.5-4 m

Ceiling Mount PIR Sensor Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Unit Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely.
