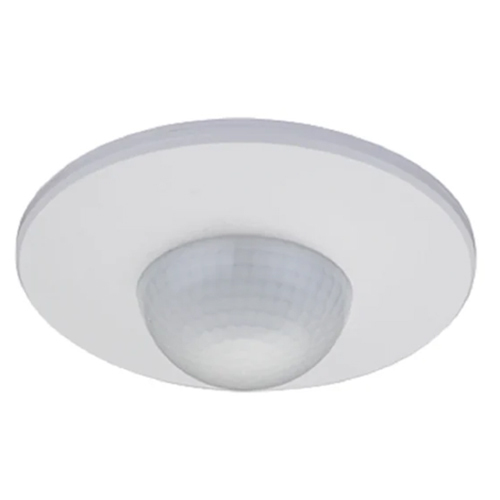

Occupancy Sensor

Name: Occupancy Sensor
Brand: 1 LEAP Technologies
Price: 1400.0 INR
Availability: InStock

1400.0 INR/Set

Get a Price/Quote

Product Details:

Interface Wired Connection
Cable Length Not included
Signal Type Digital Relay Signal
Features Adjustable time delay, Lux control, Compact Size
Response Time <1 second
Power Consumption <0.5W (standby)
Measurement Range Up to 6 meters (360 coverage)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Occupancy Sensor Price And Quantity

Price 1400.0 INR/Set
Minimum Order Quantity 5 Set

Lifecycle Operations Up to 100,000 operations
Color White
Maximum Switching Capacity 800W (Incandescent), 400W (Fluorescent)
Time Delay Adjustment 10 seconds to 7 minutes
Detection Angle 360 degrees
Humidity Tolerance <93% RH, non-condensing
Ambient Light Sensitivity 3-2000 LUX adjustable
Manufacturer Model Number 1L-PS041
Dimensional Size Approx. 110mm diameter x 60mm height

Occupancy Sensor Product Specifications

Response Time <1 second
Power Consumption <0.5W (standby)
Interface Wired Connection
Cable Length Not included
Signal Type Digital Relay Signal
Function Detection of movement to control lighting automation
Features Adjustable time delay, Lux control, Compact Size
Usage Indoor, Wall/Ceiling mount
Mounting Type Ceiling or Wall mount
Accuracy Highly accurate movement detection within specified range
Sensitivity Adjustable
Sensor Type PIR (Passive Infrared Sensor)
Application Light control for offices, corridors, bathrooms, and homes
Product Type Occupancy Sensor
Operating Temperature -20C to +40C
Material ABS Plastic Housing
Input AC 220V-240V, 50/60Hz
IP Rating IP20
Wireless No
Measurement Range Up to 6 meters (360 coverage)
Voltage 220V-240V AC
Output Relay Output, Max 800W (incandescent), 400W (fluorescent)
Weight Approx. 120 g

Lifecycle Operations Up to 100,000 operations
Color White
Maximum Switching Capacity 800W (Incandescent), 400W (Fluorescent)
Time Delay Adjustment 10 seconds to 7 minutes
Detection Angle 360 degrees
Humidity Tolerance <93% RH, non-condensing
Ambient Light Sensitivity 3-2000 LUX adjustable
Manufacturer Model Number 1L-PS041
Dimensional Size Approx. 110mm diameter x 60mm height

Occupancy Sensor Trade Information

Supply Ability 1000 Set Per Month
Delivery Time 7 Days

Product Description

Ending soon - claim the popular 1L-PS041 Occupancy Sensor, a crowning innovation for intelligent lighting control. This formidable, valorous device boasts a full 360 detection angle and adjustable ambient light sensitivity (3-2000 LUX). Fine-tune the time delay from 10 seconds up to 7 minutes for ultimate personalization. Its compact, robust ABS housing ensures durability while the highly accurate PIR sensor maximizes automation with minimal power (<0.5W standby). Suitable for up to 100,000 operations, this deal is ideal for offices, corridors, bathrooms, and homes. Don't miss the chance to elevate your lighting efficiency with this digital relay signal sensor, engineered for wall or ceiling mounts and seamless indoor integration.

Versatile Application and Easy Integration

The 1L-PS041 Occupancy Sensor is engineered for effortless wall or ceiling mounting, making it perfect for varied indoor environments. To apply, simply install the compact unit at your desired site-office, corridor, bathroom, or home interior. Its vast 6-meter detection range and crowning 360 coverage offer broad application areas, guaranteeing complete surveillance for both large and confined spaces. This formidable sensor seamlessly integrates into lighting systems, automating control and boosting both safety and efficiency.

Global Shipping, Reliable Arrival, and Secure Packaging

With secure FOB shipping from India, the 1L-PS041 Occupancy Sensor arrives swiftly to your location, ready to deploy. Each unit is packaged with robust protection to ensure undamaged arrival and safe handling. Whether offering to local or international markets, this popular sensor is sought after across Asia, the Middle East, Africa, and worldwide export destinations. Benefit from a deal that combines quality, value, and reliable logistics, no matter where your business is located.

FAQ's of 1L-PS041 Occupancy Sensor:

Q: How do I install the 1L-PS041 Occupancy Sensor?

A: The sensor can be easily mounted on walls or ceilings with appropriate screws and wiring. Follow the included installation guide for proper connection to your lighting system.

Q: What areas are ideal for using the 1L-PS041 sensor?

A: It is perfect for use in offices, corridors, bathrooms, and various home interiors, thanks to its broad 360-degree detection and up to 6-meter coverage.

Q: When should I adjust the time delay setting?

A: Adjust the timer between 10 seconds and 7 minutes to match the occupancy needs of your space, allowing for personalized lighting automation.

Q: Where is the best place on the ceiling to mount the sensor?

A: Install the sensor centrally within the room to maximize its 360-degree detection range and ensure comprehensive coverage of the monitored area.

Q: What are the benefits of the adjustable ambient light sensitivity?

A: Adjusting the LUX setting (3-2000 LUX) allows the sensor to activate lights only when necessary, saving energy and enhancing user comfort.

Q: How reliable is the sensor's operation over time?

A: The sensor is designed for up to 100,000 operational cycles, offering durable, consistent performance for long-term applications.
