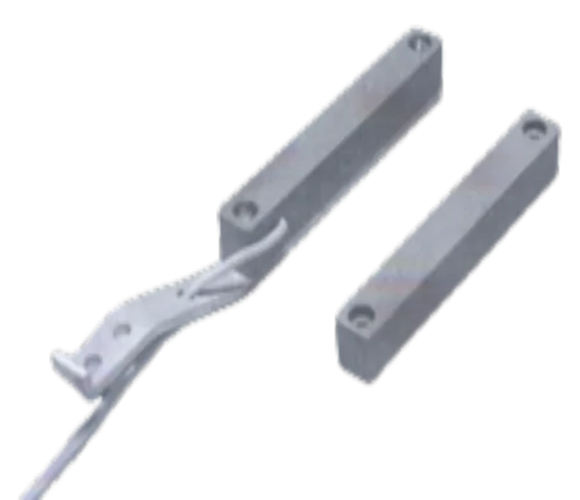

Switch Mounted on Z Bracket Overhead Mount Magnetic Reed Switch

Switch Mounted on Z Bracket Overhead Mount Magnetic Reed Switch

300.0 INR/Piece

Get a Price/Quote

Product Details:

Max. Current 0.5 Amp. Ampere (amp)
Protection Level IP60
Response Time 0.1 Seconds
Mechanical Life Over 10 million cycles Years
Product Type Overhead Mount Z Bracket
Material ABS Plastic (Unless otherwise specified)
Insulation Resistance 10 9 ohms
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Switch Mounted on Z Bracket Overhead Mount Magnetic Reed Switch Price And Quantity

Price 300.0 INR/Piece
Minimum Order Quantity 1 Piece

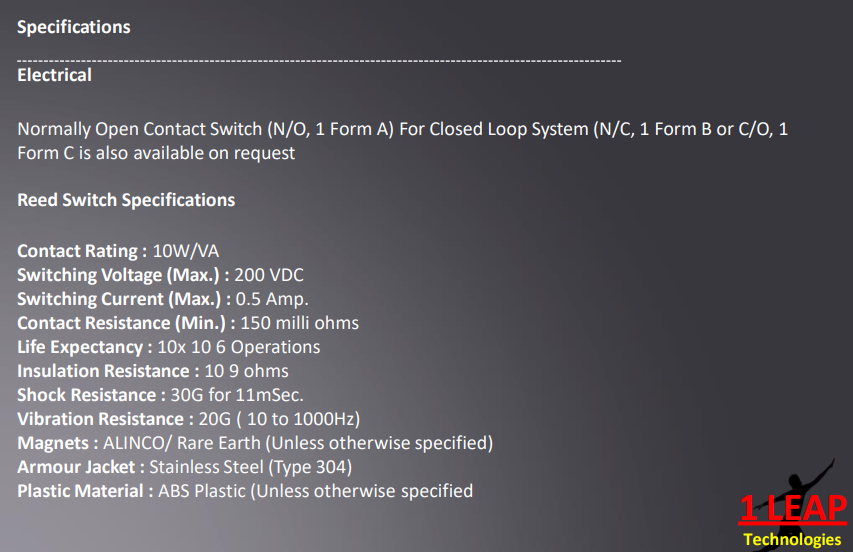

Switch Mounted on Z Bracket Overhead Mount Magnetic Reed Switch Product Specifications

Max. Current 0.5 Amp. Ampere (amp)
No Of Poles Single Pole
Max. Voltage 200 VDC Volt (V)
Product Type Overhead Mount Z Bracket
Material ABS Plastic (Unless otherwise specified)
Protection Level IP60
Warranty 1 Year
Insulation Resistance 10 9 ohms
Size Medium
Operating Temperature NA Celsius (oC)
Color Grey
Contact Resistance 150 milli ohms Ohm ()
Mechanical Life Over 10 million cycles Years
Mounting Type Overhead Mount
Response Time 0.1 Seconds
Weight 100 Grams (g)

Switch Mounted on Z Bracket Overhead Mount Magnetic Reed Switch Trade Information

Delivery Time 3 Days

Product Description

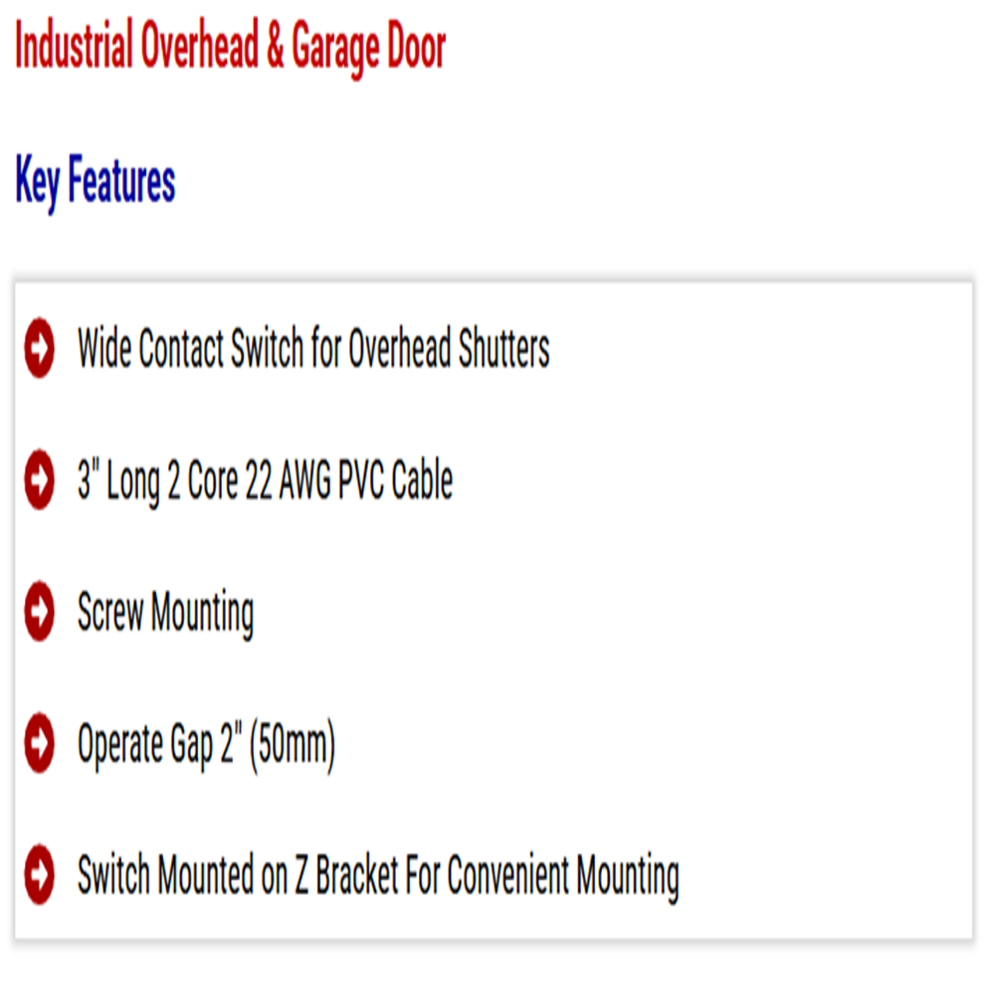

The 1L-MSM-114OH Overhead Mount Magnetic Switch offered by 1 LEAP Technologies is actually designed as a magnetic reed switch, making it specifically suited for the purposes of monitoring an overhead shutter or door. This product is designed for those applications where the gap of operation needs to be larger and where the system needs to be robust enough for an overhead mounting setup.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Magnetic Reed Switch' category

Flat Shaped with Collar Flange Recessed Mount Magnetic Reed Switch Price : 200.0 INR/Piece Minimum Order Quantity : 1 Max. Current : 0.5 Amp. Ampere (amp) Product Type : Magnetic Reed Switches Color : white Mounting Type : Wall Mount Mechanical Life : Over 10 million cycles Years Max. Voltage : 200 VDC Volt (V) Cable Type : Wired No Of Poles : Single Pole Material : ABS Plastic Size : Medium Protection Level : IP60 Insulation Resistance : 10 9 ohms Warranty : 1 Year Number of Module : 1 Weight : 100 Grams (g) Operating Temperature : 20C to 40C Response Time : 0.1 Seconds Frequency : 50 Hertz (HZ)

Send Inquiry

Big Flange Mount Magnetic Reed Switches NO Price : 130.0 INR/Piece Minimum Order Quantity : 6 Max. Current : 0.5 A Ampere (amp) Product Type : Magnetic Reed Switch Color : White Mounting Type : Screw Mount Mechanical Life : 1,000,000 operations Years Max. Voltage : 200 VDC Volt (V) Cable Type : Wire No Of Poles : Single Pole Material : ABS Plastic Size : 45mm x 13mm x 9mm (approx.) Protection Level : IP65 Insulation Resistance : NA Warranty : 1 Year Number of Module : 1 Contact Resistance : 0.1 Ohm () Weight : 100 Grams (g) Operating Temperature : 20 C to +70 C Celsius (oC) Response Time : 1.0 ms Seconds Rated Voltage : 200 VDC Volt (V) Temperature Range : 40 C to +85 C Celsius (oC) Circuit Type : Normally Open (NO) Current Rating : 0.5A Stoke : 10mm (typical)

Send Inquiry

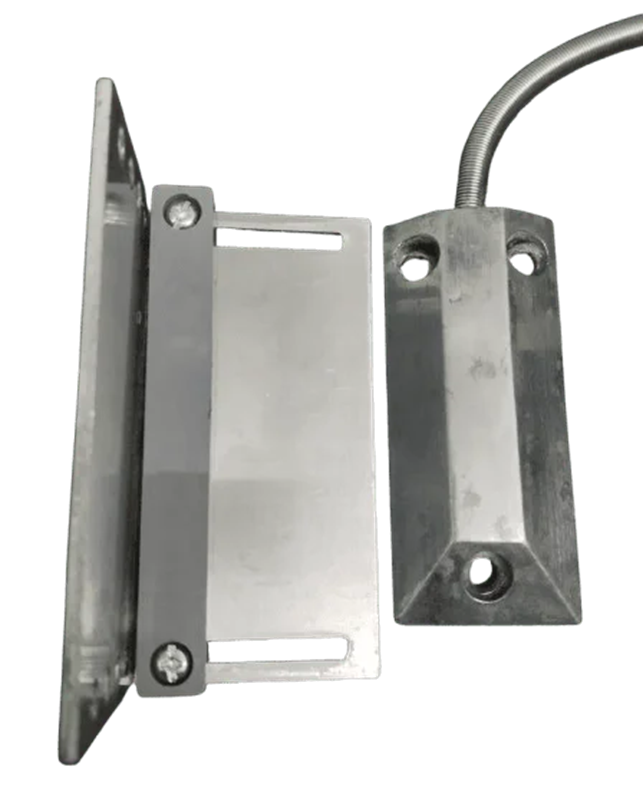

Roller Shutter With L Bracket Recessed Magnetic Reed Switch Price : 585.0 INR/Piece Minimum Order Quantity : 5 Max. Current : 0.5 Amp. Ampere (amp) Product Type : Roller Shutter Magnetic Contact Color : Grey Mounting Type : Shutter mount Mechanical Life : 10x 10 6 Operations Seconds Max. Voltage : 200 VDC Volt (V) Cable Type : Wired No Of Poles : Single Pole Material : ABS Plastic Size : Medium Protection Level : IP60 Insulation Resistance : 10 9 ohms Warranty : 1 year Number of Module : 1 Contact Resistance : 150 milli ohms Ohm () Response Time : 0.1 Seconds Rated Voltage : 200 VDC Volt (V) Circuit Type : Normal Current Rating : 0.25 A

Send Inquiry

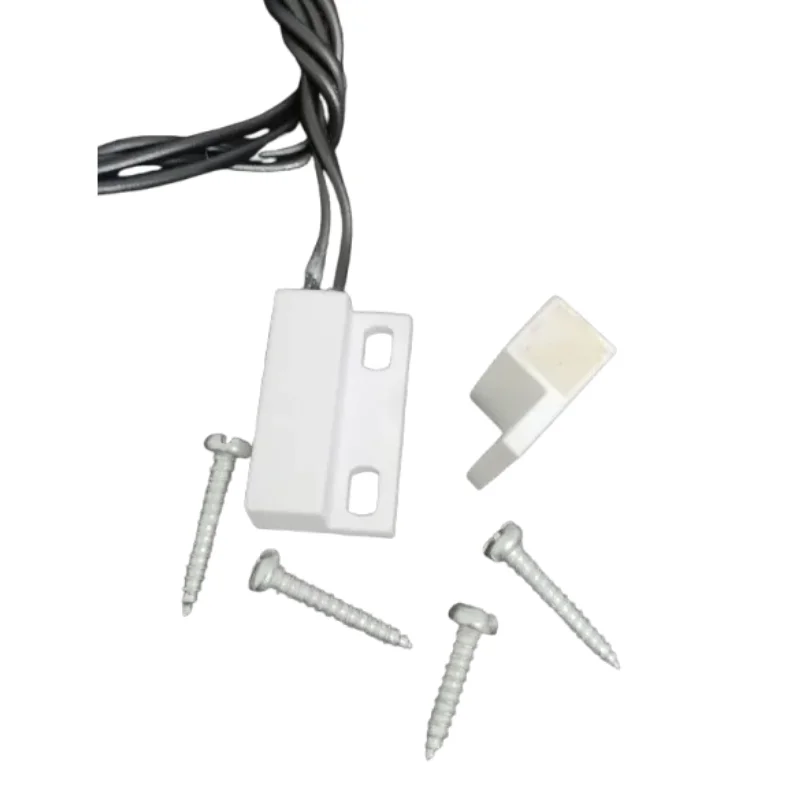

surface mount design with side leads NC Switch Price : 230.0 INR/Piece Minimum Order Quantity : 5 Max. Current : 0.25 A Ampere (amp) Product Type : NC Color : White Mounting Type : Surface Mechanical Life : Over 10 million cycles Seconds Max. Voltage : 60 VDC Volt (V) Cable Type : PVC No Of Poles : Single Pole Material : ABS Plastic Size : Medium Protection Level : IP60 Warranty : 1 Year Number of Module : 1 Contact Resistance : 115 m Ohm () Operating Temperature : 20 C to +70 C Celsius (oC) Response Time : 0.1 Seconds Rated Voltage : 4 W Watt (W) Temperature Range : 40 C to +85 C Celsius (oC) Circuit Type : NC
