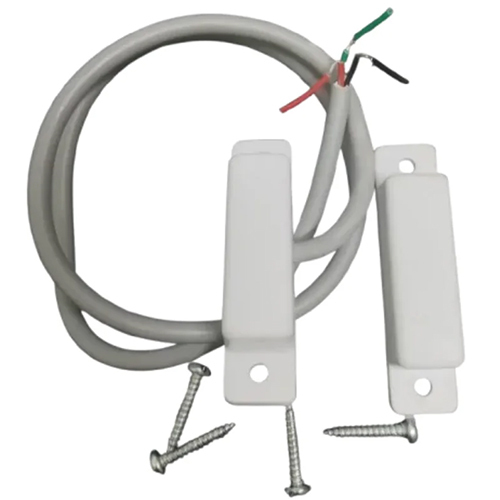

Side Flanges NO/NC Magnetic Reed Switches

Name: 1L-MSM-112 Nonc Magnetic Reed Switches
Brand: 1 LEAP Technologies

Price 280.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

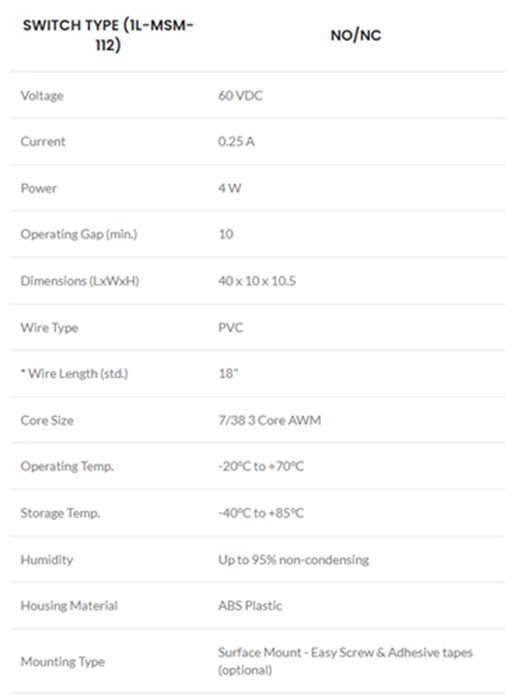

Side Flanges NO/NC Magnetic Reed Switches Specification

Number of Module
NA

Rated Voltage
0.25 A Volt (V)

Circuit Type
NA

Max. Current
0.25 A Ampere (amp)

Mechanical Life
Over 10 million cycles Years

Temperature Range
-40 C to +85 C Celsius (oC)

Automation Grade
NA

Power Rating
NA

Product Type
Magnetic Switch

Insulation Resistance
NA

Contact Resistance
115 m Ohm ()

Max. Voltage
60 VDC Volt (V)

Stoke
NA

Warranty
NA

Usage & Applications
NA

Size
Medium

Operating Temperature
-20 C to +70 C Celsius (oC)

Cable Type
Wire

Color
White

Weight
100g Kilograms (kg)

Display Type
NA

Phase
NA

Material
NA

Conductor
NA

Features
NA

Mounting Type
Surface

Current Rating
NA

No Of Poles
NA

Side Flanges NO/NC Magnetic Reed Switches Trade Information

Minimum Order Quantity
5 Pieces

Supply Ability
100 Pieces Per Month

Delivery Time
4 Days

About Side Flanges NO/NC Magnetic Reed Switches

The 1L-MSM-112 Surface Mount Magnetic Reed Switch from 1 LEAP Technologies is an accurate-engineered magnetic sensing solution designed for dependable, non-contact switching in security, automation, and access-control systems. This model is specifically developed for surface-mounted installations where consistent magnetic actuation, mechanical durability, and long operational life are needed.

Versatile Performance and Durability

Built to perform in demanding environments, these magnetic reed switches boast a wide operating and storage temperature range, ensuring functionality from chilling -40C up to +85C. With an impressive mechanical life exceeding 10 million cycles, users benefit from a robust, long-lasting solution for monitoring and control systems.

Convenient Installation and Adaptability

Thanks to their surface mounting design and lightweight 100g ABS plastic construction, these switches are easily installed on various surfaces. The medium size fits smoothly into control panels or automated assemblies, while the white finish provides a clean, professional appearance.

FAQ's of Side Flanges NO/NC Magnetic Reed Switches :

Q: How are Side Flanges NO/NC Magnetic Reed Switches typically installed?

A: These switches are designed for easy surface mounting, allowing secure attachment to flat surfaces such as panels, doors, or frames. Their practical design facilitates quick installation without specialized tools.

Q: What are the main benefits of using these magnetic reed switches?

A: The main benefits include an extended operating temperature range, long mechanical life exceeding 10 million cycles, low contact resistance, and a robust build with ABS plastic that ensures reliable operation and durability in various environments.

Q: When should I consider using a NO/NC magnetic reed switch?

A: These switches are ideal for use when you need precise position sensing or monitoring, such as in security systems, industrial automation, or door/gate detection, where both normally open (NO) and normally closed (NC) contacts are required.

Q: Where are these side flange switches commonly used?

A: They are widely used in industrial automation, manufacturing lines, access control systems, and equipment monitoring applications, especially where rugged and long-life switches are essential.

Q: What is the maximum voltage and current rating for the switch?

A: Each switch operates safely with a maximum voltage of 60VDC and can handle a current of up to 0.25A, making it suitable for low-voltage control circuits.

Q: How do I maintain the performance of these switches over time?

A: Minimal maintenance is required due to their sealed contact design, but periodic inspection for wiring integrity and physical mounting tightness is recommended to ensure consistent operation throughout their service life.

Q: What processes benefit most from integrating these reed switches?

A: Processes that require precise and reliable position detection, such as conveyor belt tracking, machine guarding, and automated counting systems, benefit significantly from integrating these robust switches.
