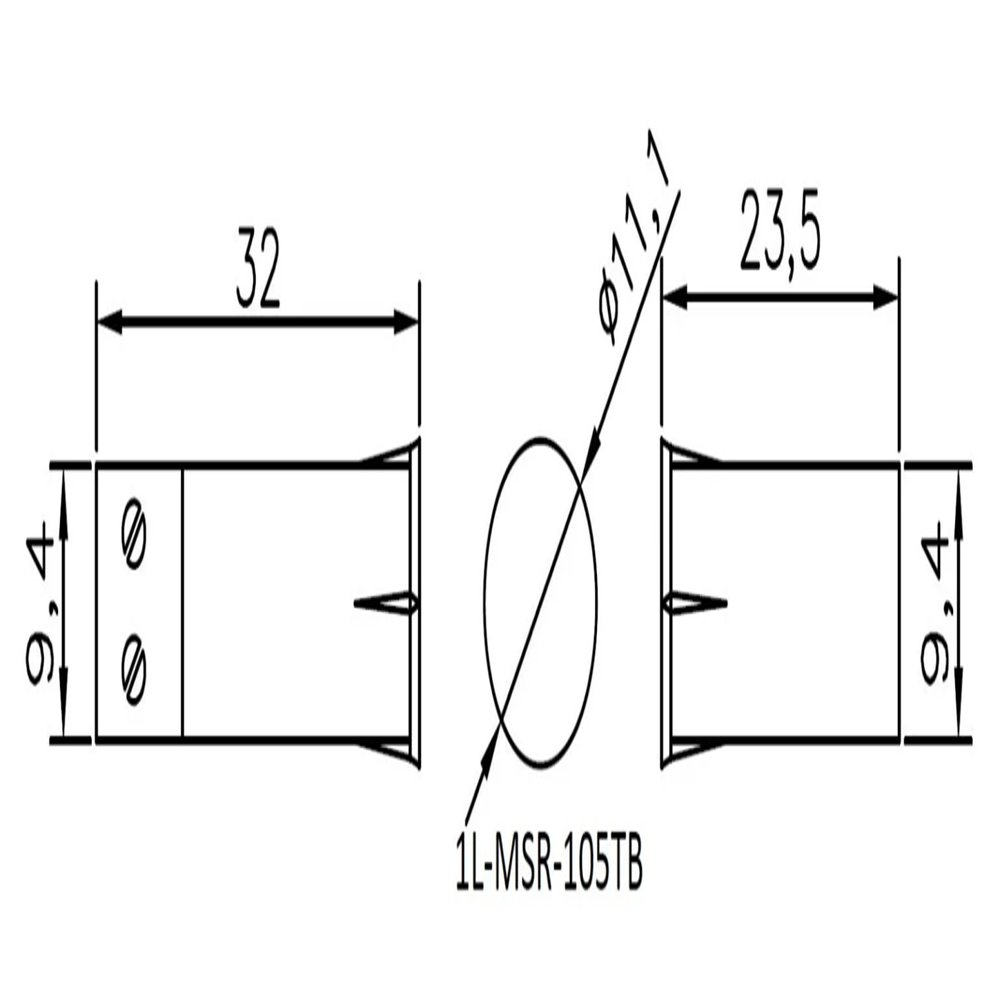

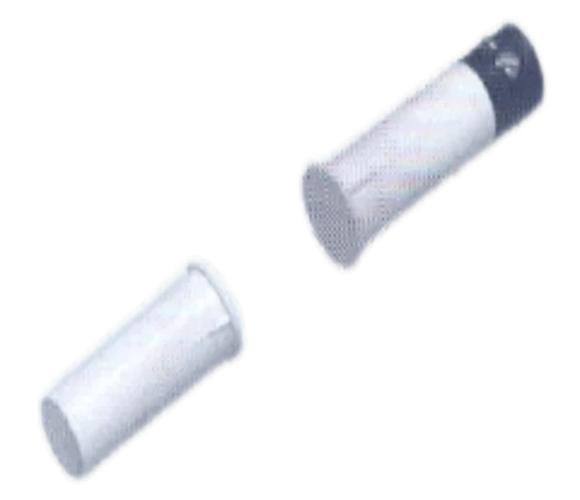

Recessed Mount Magnetic Switch 9mm dia

245.0 INR/Piece

Get a Price/Quote

Product Details:

Number of Module 1
Protection Level IP60
Max. Current 0.5 Amp. Ampere (amp)
Response Time 0.1 Seconds
Mechanical Life Over 10 million cycles Years
Material ABS Plastic
Insulation Resistance 10 9 ohms
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Recessed Mount Magnetic Switch 9mm dia Price And Quantity

Price 245.0 INR/Piece
Minimum Order Quantity 1 Piece

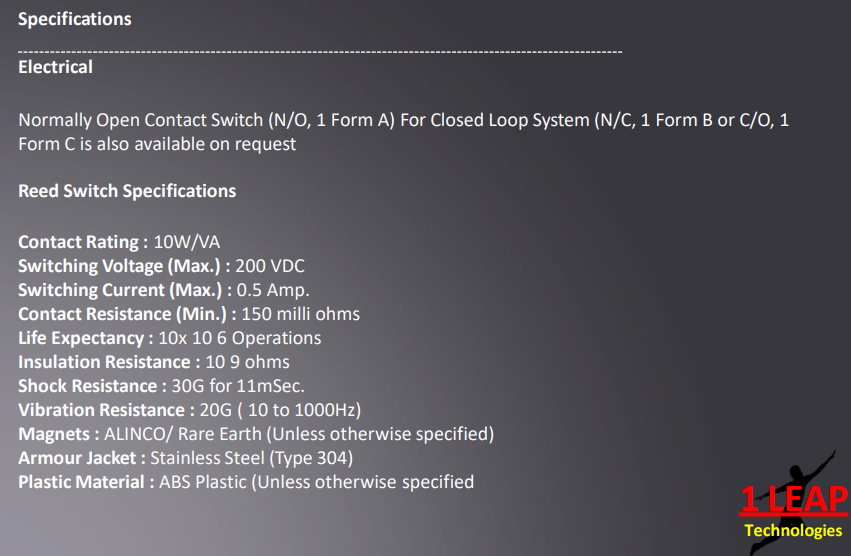

Recessed Mount Magnetic Switch 9mm dia Product Specifications

Max. Voltage 200 VDC Volt (V)
Response Time 0.1 Seconds
Color White
Mechanical Life Over 10 million cycles Years
Size Medium
Max. Current 0.5 Amp. Ampere (amp)
Material ABS Plastic
Mounting Type Recessed Mount
Number of Module 1
No Of Poles Single Pole
Warranty 1 Year
Protection Level IP60
Weight 100 Grams (g)
Insulation Resistance 10 9 ohms
Contact Resistance 150 milli ohms Ohm ()

Recessed Mount Magnetic Switch 9mm dia Trade Information

Delivery Time 3 Days

Product Description

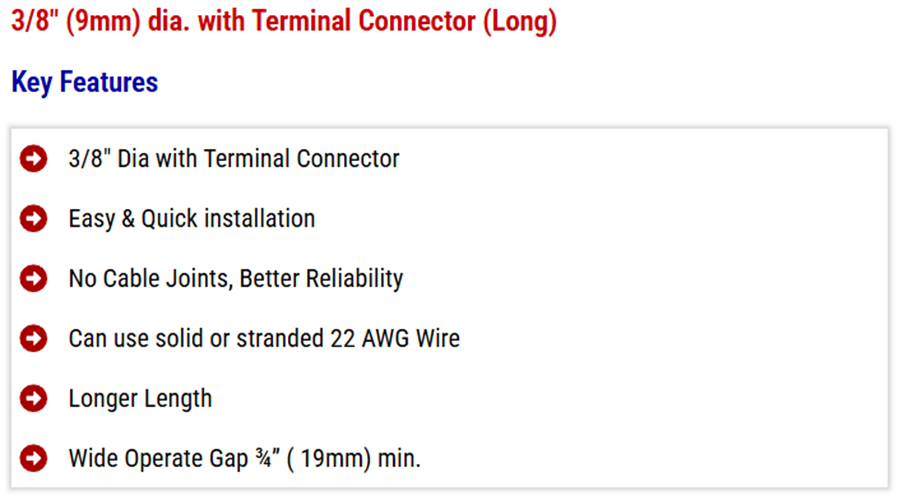

The 1L-MSR-105TB Recessed Mount Magnetic Switch from 1 LEAP Technologies is a purpose-built industrial magnetic switch designed for recessed mounting applications that demand mechanical stability, extended wiring flexibility, and reliable magnetic actuation over a wider operating gap. This model is engineered specifically for installations where flush mounting, secure terminal connections, and long-term operational reliability are essential.
