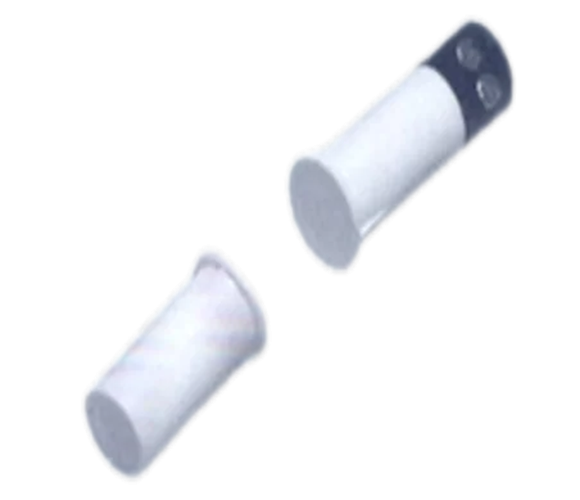

Recessed Magnetic Switch With terminal connector

Recessed Magnetic Switch With terminal connector

230.0 INR/Box

Get a Price/Quote

Product Details:

Protection Level IP60
Response Time 0.1 Seconds
Number of Module 1
Mechanical Life Over 10 million cycles Years
Max. Current 0.5 Amp. Ampere (amp)
Product Type recessed Mount Magnetic Switch
Material ABS PLastic
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Recessed Magnetic Switch With terminal connector Price And Quantity

Price 230.0 INR/Box
Minimum Order Quantity 1 Piece

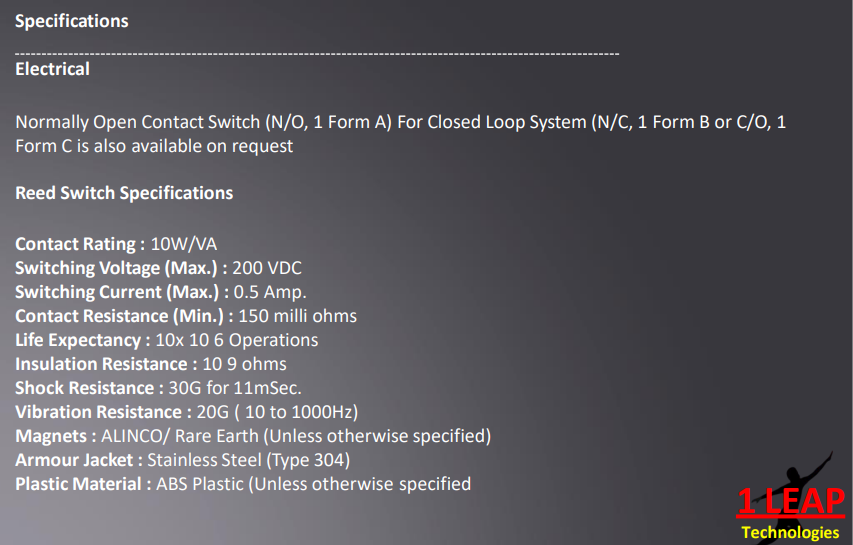

Recessed Magnetic Switch With terminal connector Product Specifications

Max. Voltage 200 VDC Volt (V)
Size medium
Response Time 0.1 Seconds
Color White
Mounting Type Recessed Mount
No Of Poles Single Pole
Weight 100 Grams (g)
Mechanical Life Over 10 million cycles Years
Max. Current 0.5 Amp. Ampere (amp)
Number of Module 1
Protection Level IP60
Product Type recessed Mount Magnetic Switch
Material ABS PLastic
Insulation Resistance 10 9 ohms
Warranty 1 Year

Recessed Magnetic Switch With terminal connector Trade Information

Delivery Time 3 Days

Product Description

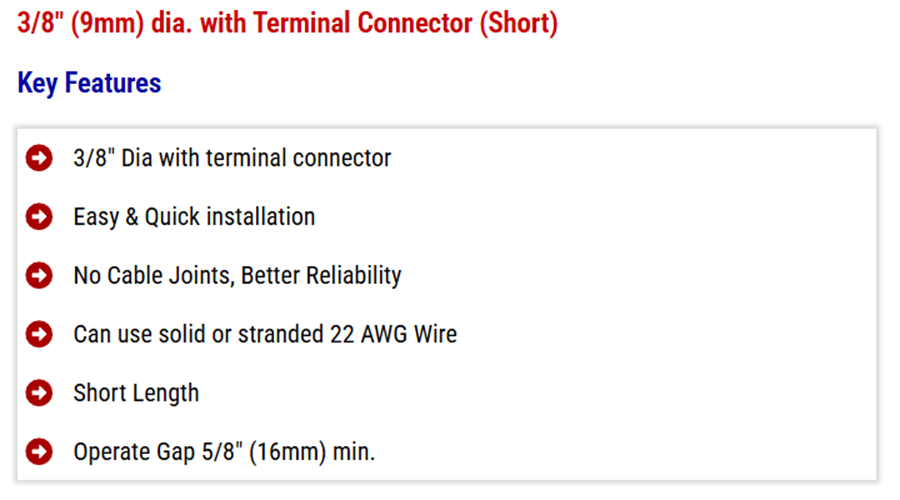

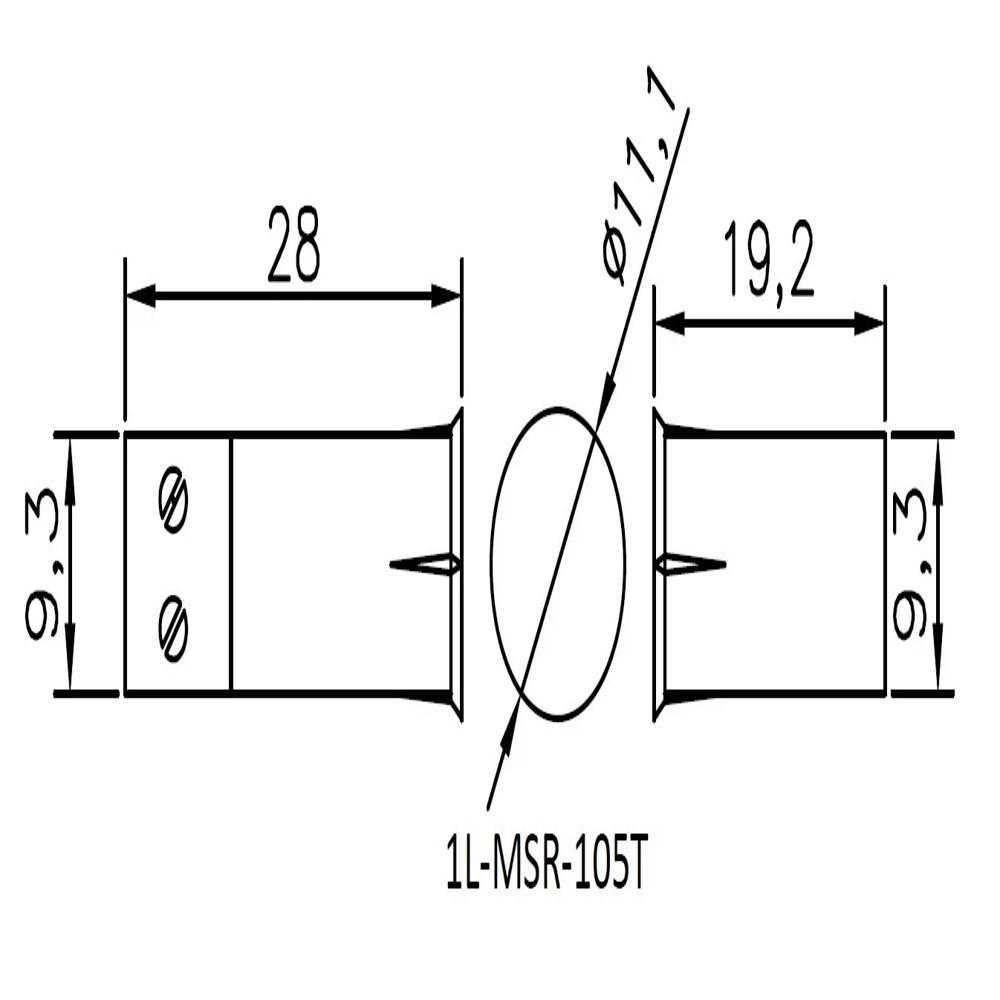

The 1L-MSR-105T Recessed Mount Magnetic Switch from 1 LEAP Technologies is a compact and robust magnetic reed switch specifically designed for applications where a clean, concealed, and mechanically secure installation is required. This model is engineered with a 3/8 diameter body and an integrated terminal connector, allowing direct electrical connection without external cable joints. I

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Magnetic Reed Switch' category

Rugged Aluminium Housing Magnetic Reed Switches Price : 390.0 INR/Piece Minimum Order Quantity : 2 Product Type : Magnetic Reed Switch Max. Voltage : 200V DC Volt (V) Size : Approx. 25mm x 6mm Mounting Type : Surface / Screw Mountable Color : White Mechanical Life : 1,000,000 operations Years No Of Poles : Single Pole Protection Level : IP67 Contact Resistance : 0.1 Ohm () Material : ABS Plastic Max. Current : 0.5A Ampere (amp) Warranty : 1 YEAR Weight : 100 Grams (g) Insulation Resistance : 1000 M (Min.) at 500V DC Cable Type : Wire Number of Module : Single Response Time : 0.2ms (Max.) Seconds Operating Temperature : 20 C to +70 C Celsius (oC) Circuit Type : Normally Open (NO) Rated Voltage : 200 VDC Volt (V) Current Rating : 0.5A Temperature Range : 40 C to +85 C Celsius (oC) Finish Type : Moulded

Send Inquiry

Long Wire Leads Recessed Mount Magnetic Switch Price : 235.0 INR/Piece Minimum Order Quantity : 5 Product Type : Non Contact Magnetic Safety Switch Max. Voltage : 200 VDC Volt (V) Size : Standard, compact Mounting Type : Surface mount Color : White Mechanical Life : Over 10 million cycles Seconds No Of Poles : SPST Protection Level : IP40 Contact Resistance : 150 milli ohms Ohm () Material : ABS Plastic Max. Current : 0.5 A Ampere (amp) Warranty : 1 Year Weight : 100 Grams (g) Insulation Resistance : 10 9 ohms Cable Type : Wired Number of Module : 1 Response Time : 0.1 Seconds Circuit Type : NO (Normally Open) Rated Voltage : 200 VDC Volt (V) Current Rating : 10W/VA Frequency : 50 Hertz (HZ) Finish Type : Smooth ABS finish

Send Inquiry

surface mount design with side leads NC Switch Price : 230.0 INR/Piece Minimum Order Quantity : 5 Product Type : NC Max. Voltage : 60 VDC Volt (V) Size : Medium Mounting Type : Surface Color : White Mechanical Life : Over 10 million cycles Seconds No Of Poles : Single Pole Protection Level : IP60 Contact Resistance : 115 m Ohm () Material : ABS Plastic Max. Current : 0.25 A Ampere (amp) Warranty : 1 Year Cable Type : PVC Number of Module : 1 Response Time : 0.1 Seconds Operating Temperature : 20 C to +70 C Celsius (oC) Circuit Type : NC Rated Voltage : 4 W Watt (W) Temperature Range : 40 C to +85 C Celsius (oC)

Send Inquiry

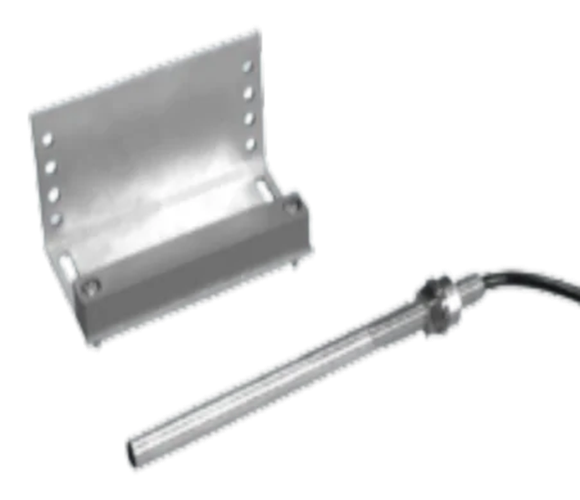

Overhead Mount Magnetic Switch Price : 650.0 INR/Piece Minimum Order Quantity : 1 Product Type : Overhead Mount Magnetic Reed Switch Max. Voltage : 200 VDC Volt (V) Size : Medium Mounting Type : Overhead Mount Color : Grey Mechanical Life : Over 10 million cycles Years No Of Poles : Single Pole Protection Level : IP60 Contact Resistance : 150 milli ohms Ohm () Material : Aluminium Max. Current : 0.5 Amp. Ampere (amp) Warranty : 1 Year Weight : 200 Grams (g) Insulation Resistance : 10 9 ohms Cable Type : Aluminium Wired Number of Module : 1
