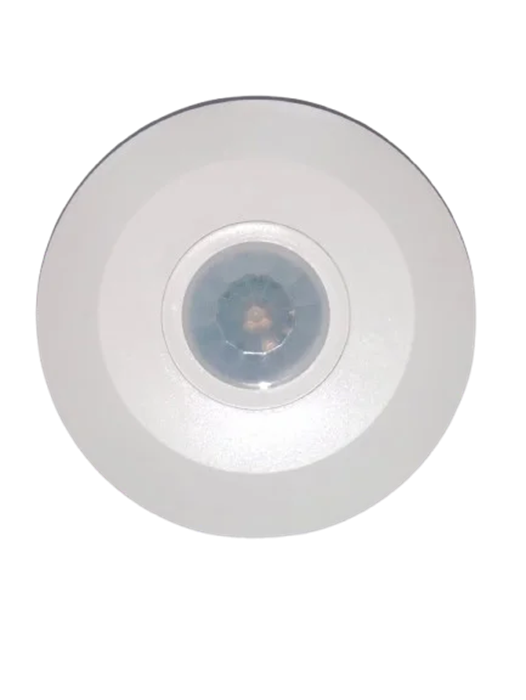

False Ceiling Mount PIR Sensor 360

484.0 INR/Piece

Get a Price/Quote

Product Details:

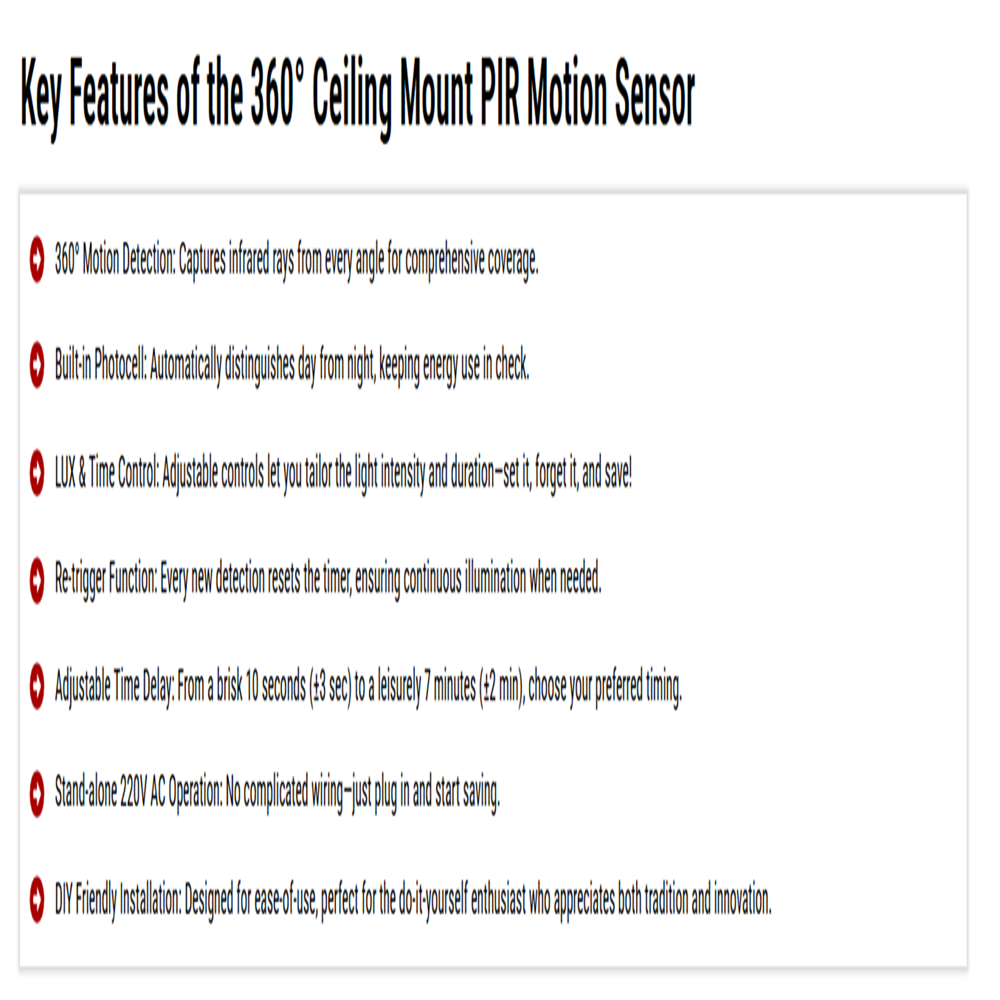

Features 360 detection, time delay, adjustable light sensor
Measurement Range 8 meter, 360 degree
Sensitivity Adjustable
Power Consumption 0.1W (static) & 0.4W (working) Watt (W)
Application Energy Saving
Wireless No
Response Time 10 sec 7 min adjustable Seconds
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

False Ceiling Mount PIR Sensor 360 Price And Quantity

Minimum Order Quantity 1 Piece
Price 484.0 INR/Piece

Detection Angle 360 degree
Shape Round
Delay 10s7min adjustable
Installation Height 2.24m
Relative Humidity <93% RH
Detection Distance 8 meter
Diameter Approx. 115 mm
Color White finish
Motion Detection Speed 0.61 m/s
Ambient Light 3-2000 lux adjustable
LED Indicator Status display
Mounting Height 1.54m
Rated Load 1200W max
Cutout Size Approx. 65 mm

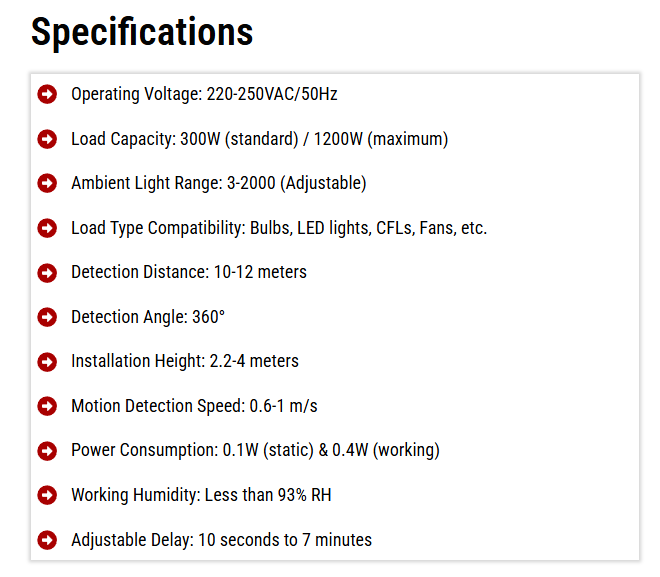

False Ceiling Mount PIR Sensor 360 Product Specifications

Power Rating 0.1W (static) & 0.4W (working)
Product Type False Ceiling Mount PIR Sensor
Operating Temperature -20 C to +40 C Celsius (oC)
Voltage 220-250VAC Volt (v)
Weight Approx. 110 grams Grams (g)
Sensor Type Passive Infrared (PIR)
Mounting Type False ceiling mount
Output Relay contact
IP Rating IP20
Cable Length NA Inch (in)
Signal Type Digital
Material High-grade plastic
Input 220-240 V AC
Function Automatic motion detection
Interface Wired connection
Resolution Motion trigger
Usage Indoor
Response Time 10 sec 7 min adjustable Seconds
Wireless No
Application Energy Saving
Accuracy High precision PIR detection %
Sensitivity Adjustable
Power Consumption 0.1W (static) & 0.4W (working) Watt (W)
Features 360 detection, time delay, adjustable light sensor
Measurement Range 8 meter, 360 degree
Warranty 1 Year

Detection Angle 360 degree
Shape Round
Delay 10s7min adjustable
Installation Height 2.24m
Relative Humidity <93% RH
Detection Distance 8 meter
Diameter Approx. 115 mm
Color White finish
Motion Detection Speed 0.61 m/s
Ambient Light 3-2000 lux adjustable
LED Indicator Status display
Mounting Height 1.54m
Rated Load 1200W max
Cutout Size Approx. 65 mm

False Ceiling Mount PIR Sensor 360 Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Introducing the 360 False Ceiling Mount PIR Sensor a fully automatic indoor light controller that seamlessly combines security with energy efficiency. Capable of managing up to 1200W, this smart switch features a highly sensitive, integrated circuit that keeps your space safe and well-lit. When night falls, its built-in passive infrared (PIR) sensor springs into action, illuminating your surroundings the moment it detects movement. Come daylight, an intuitive photocell sensor steps in to turn off the lights, ensuring that energy is saved when its not needed. Its modern technology with a timeless touchkeeping your space bright when it matters and conserving energy when it doesnt.
