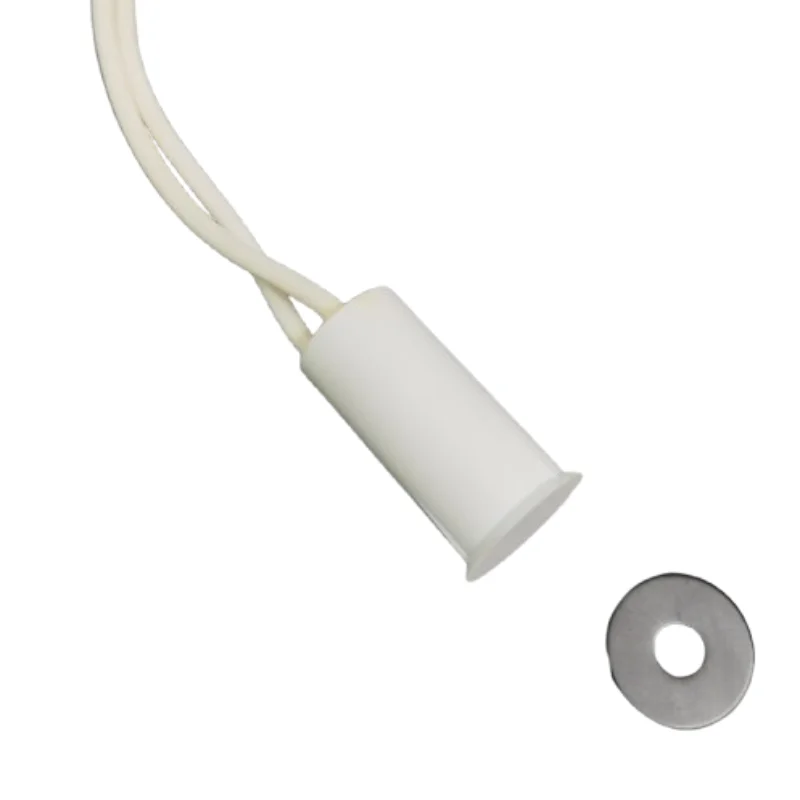

Epoxy Coated Recessed Mount Magnetic Switch

Epoxy Coated Recessed Mount Magnetic Switch

Name: Press Fit Recessed Mount Magnetic Contact
Brand: 1 LEAP Technologies
Price: 150 INR
Availability: InStock

230.0 INR/Piece

Get a Price/Quote

Product Details:

Number of Module Single Module
Rated Voltage 10W/VA Volt (V)
Temperature Range -40 C to +85 C Celsius (oC)
Max. Current 0.5 Amp. Ampere (amp)
Response Time 0.1 Seconds
Protection Level IP60
Circuit Type Normal
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Epoxy Coated Recessed Mount Magnetic Switch Price And Quantity

Minimum Order Quantity 1 Piece
Price 230.0 INR/Piece

Finish Smooth Surface
Sensing Type Magnetic
Rated Voltage 200 VDC
Contact Configuration NO (Normally Open)
Model Number 1L-MSR-104-PF
Installation Press Fit Recessed
Control Type Reed Switch
Use Door/Window Security
Wire Type 3-Wire
Location Indoor
Current Rating 10 W/VA
Body Shape Cylindrical

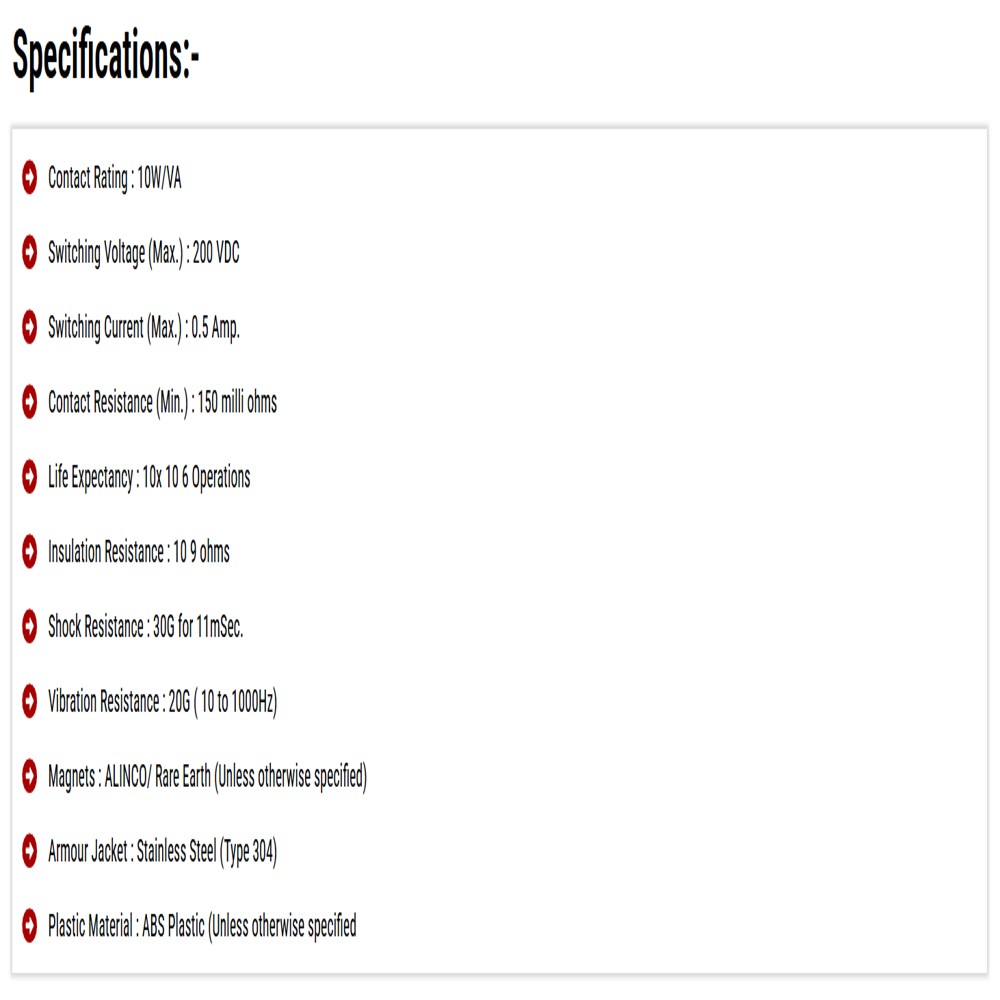

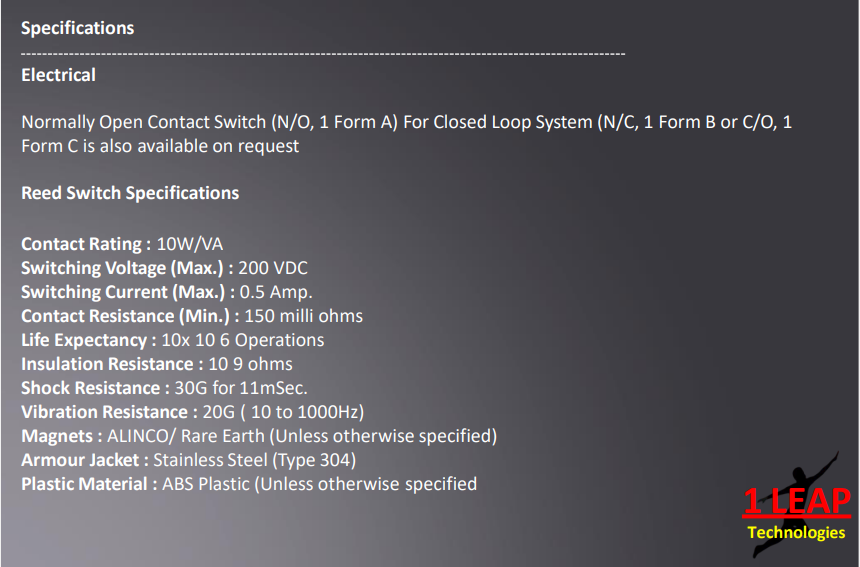

Epoxy Coated Recessed Mount Magnetic Switch Product Specifications

Color White
Max. Current 0.5 Amp. Ampere (amp)
Response Time 0.1 Seconds
Protection Level IP60
Mounting Type Surface
Contact Resistance 150 milli ohms Ohm ()
Frequency 50 Hertz (HZ)
Product Type Magnetic Reed Switches
Max. Voltage 200 VDC Volt (V)
Circuit Type Normal
Rated Current 0.5 Ampere (amp)
Mechanical Life Over 10 million cycles Years
Operating Temperature -20 C to +70 C Celsius (oC)
Size Medium
Warranty 1 Year
Cable Type Wired
Current Rating 0.5 A
No Of Poles Single Pole
Number of Module Single Module
Rated Voltage 10W/VA Volt (V)
Insulation Resistance 10 9 ohms
Weight 100 Grams (g)
Temperature Range -40 C to +85 C Celsius (oC)

Finish Smooth Surface
Sensing Type Magnetic
Rated Voltage 200 VDC
Contact Configuration NO (Normally Open)
Model Number 1L-MSR-104-PF
Installation Press Fit Recessed
Control Type Reed Switch
Use Door/Window Security
Wire Type 3-Wire
Location Indoor
Current Rating 10 W/VA
Body Shape Cylindrical

Epoxy Coated Recessed Mount Magnetic Switch Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Piece Per Month
Delivery Time 3 Days
Main Domestic Market All India

Product Description

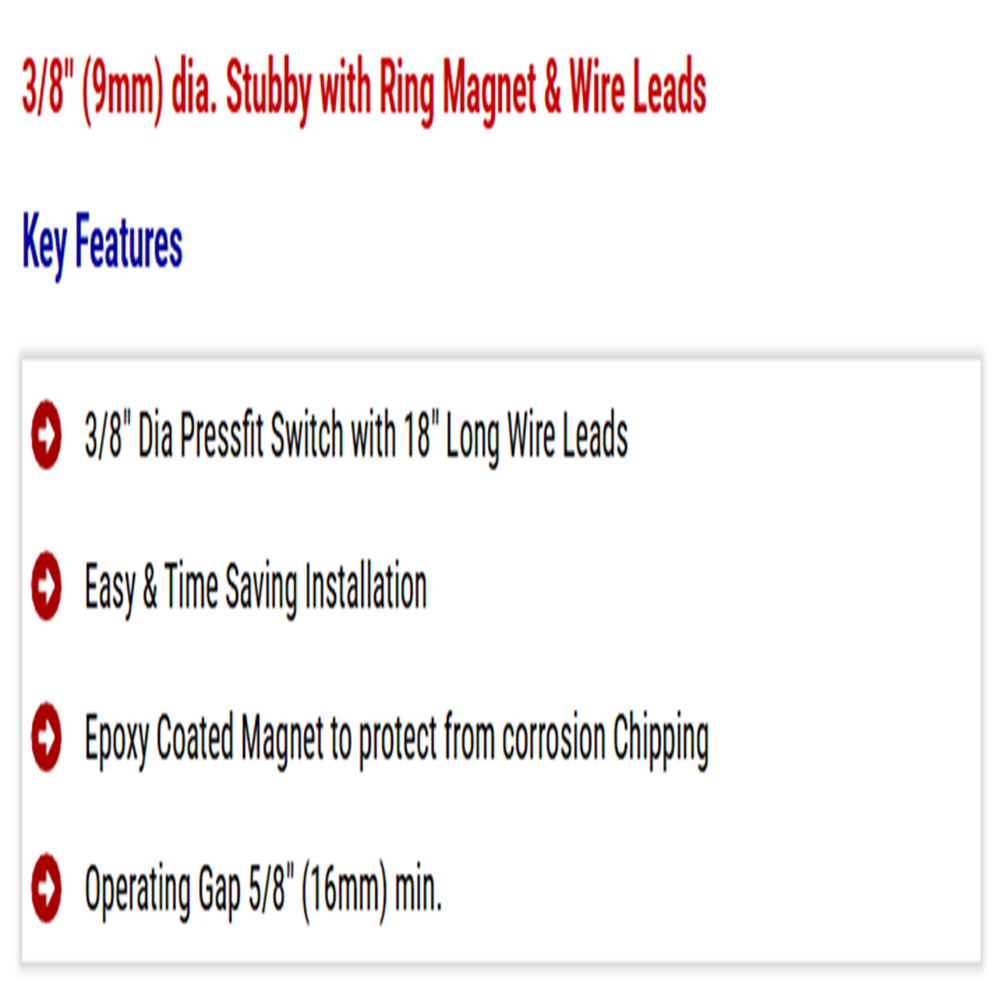

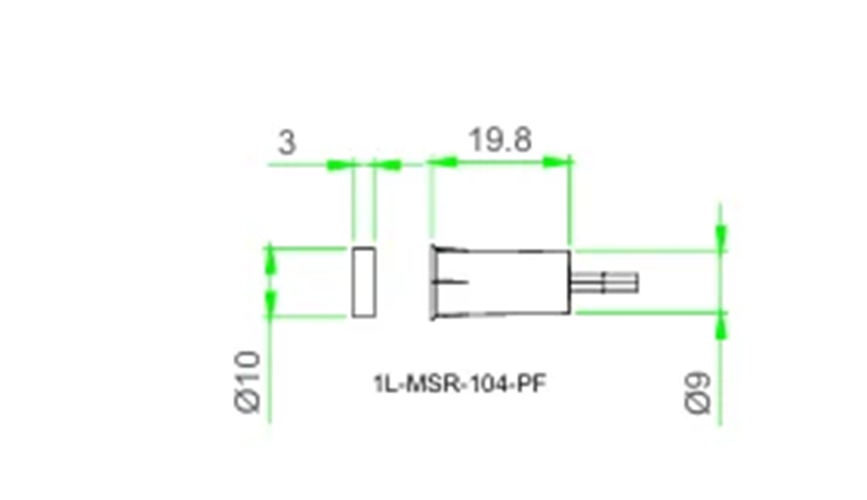

The 1L-MSR-104PF magnetic switch sensor features a 3/8 inch diameter press-fit body, enabling quick and secure installation without the need for screws, brackets, or surface fixtures. Once inserted into the pre-drilled hole, the switch holds firmly in place, reducing movement and minimizing installation time. This press-fit recessed design is especially valuable in projects where multiple sensors must be installed efficiently while maintaining consistent alignment.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Magnetic Reed Switch' category

Epoxy Coated Magnet Recessed Mount Magnetic Switch Price : 230.0 INR/Piece Minimum Order Quantity : 5 Color : White Max. Current : 0.5 Amp. Ampere (amp) Protection Level : IP60 Mounting Type : Surface Product Type : Magnetic Reed Switches Contact Resistance : 150 milli ohms Ohm () Max. Voltage : 200 VDC Volt (V) Mechanical Life : Over 10 million cycles Years Size : Medium Cable Type : Wired No Of Poles : Single Pole Number of Module : 1 Weight : 100 Grams (g) Material : ABS Response Time : 0.1 Seconds Warranty : 1 Year Frequency : 50 Hertz (HZ) Insulation Resistance : 10 9 ohms

Send Inquiry

Big Flange Mount Contact Magnetic Reed Switch NO Price : 130.0 INR/Piece Minimum Order Quantity : 1 Color : White Max. Current : 0.5 A Ampere (amp) Protection Level : IP60 Mounting Type : Surface Mount Product Type : Wired Magnetic Switch Door Sensor Contact Resistance : 0.1 Ohm () Max. Voltage : 200 VDC Volt (V) Mechanical Life : Over 10 million cycles Seconds Size : Medium Cable Type : Wired No Of Poles : Single Pole Number of Module : 1 Weight : 100 Grams (g) Material : ABS Plastic Response Time : 0.1 Seconds Warranty : 1 Year Operating Temperature : 20 C to +70 C Celsius (oC) Frequency : 50 Hertz (HZ) Temperature Range : 40 C to +85 C Celsius (oC) Rated Voltage : 200 VDC Volt (V)

Send Inquiry

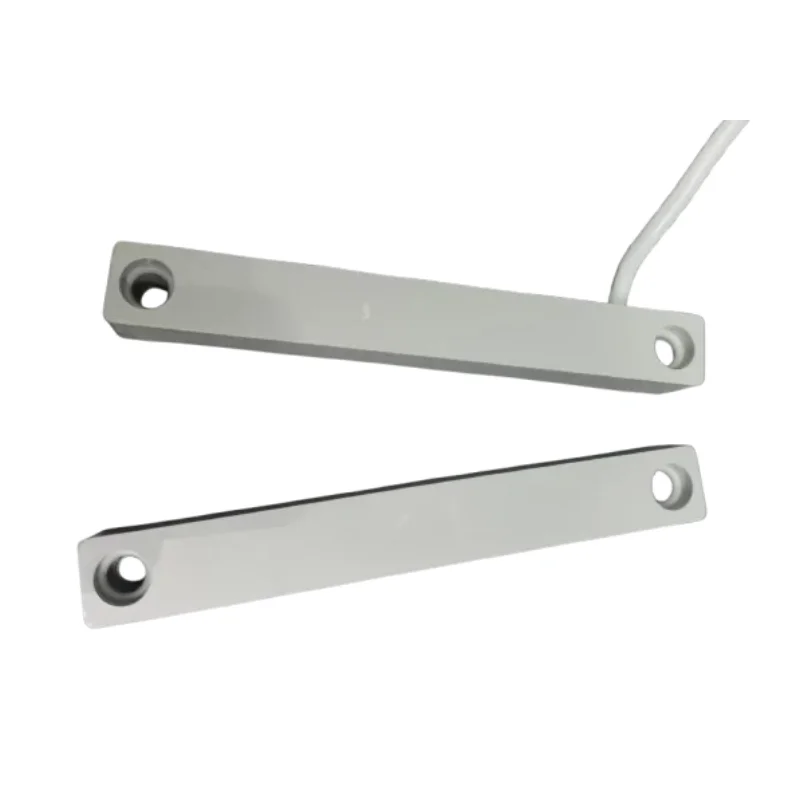

Wide Gap Surface Mount Contact Switch Price : 250.0 INR/Piece Minimum Order Quantity : 5 Color : White Max. Current : 0.5 A Ampere (amp) Protection Level : IP60 Mounting Type : Surface Mount Product Type : NO Contact Resistance : 0.1 Ohm () Max. Voltage : 200 VDC Volt (V) Mechanical Life : Over 10 million cycles Years Size : Medium Cable Type : PVC No Of Poles : Single Pole Number of Module : 1 Weight : 100 Grams (g) Response Time : 0.1 Seconds Warranty : 1 Year Operating Temperature : 20 C to +70 C Celsius (oC) Temperature Range : 40 C to +85 C Celsius (oC) Current Rating : 0.5 A Rated Voltage : 200 VDC Volt (V)

Send Inquiry

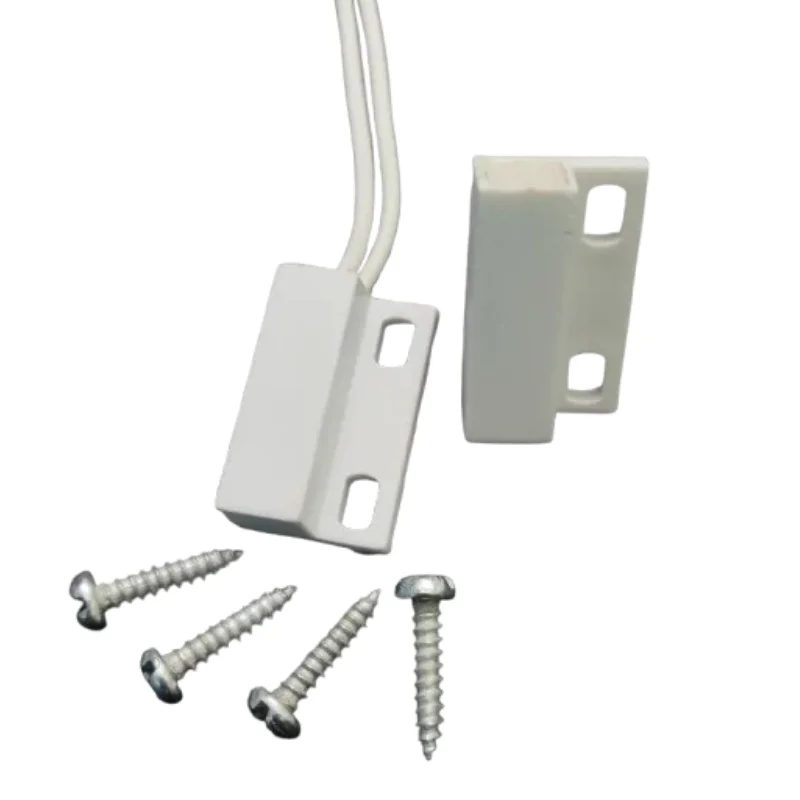

surface mount design with side leads NO Switch Price : 130.0 INR/Piece Minimum Order Quantity : 5 Color : White Max. Current : 0.5 A Ampere (amp) Protection Level : IP60 Mounting Type : Surface Product Type : NO Contact Resistance : 0.1 Ohm () Max. Voltage : 200 VDC Volt (V) Mechanical Life : Over 10 million cycles Years Size : Medium Cable Type : PVC No Of Poles : Single Pole Number of Module : 1 Weight : 100 Grams (g) Material : ABS Plastic Response Time : 0.1 Seconds Warranty : 1 Year Operating Temperature : 20 C to +70 C Celsius (oC) Temperature Range : 40 C to +85 C Celsius (oC) Current Rating : 0.5 A
