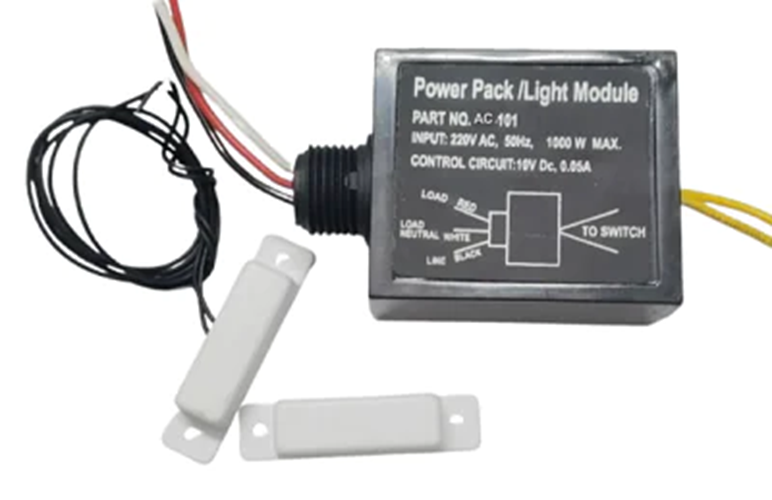

Air Curtain Door Sensor Black `

Name: Air Curtain Magnetic Door Sensor
Brand: 1 LEAP Technologies
Price: 850 INR
Availability: InStock

1000.0 INR/Piece

Get a Price/Quote

Product Details:

Mounting Type Surface Mount
Wireless No
Sensor Type Sense Entrance
Power Consumption 4 W Watt (W)
Operating Temperature -20 C to +70 C Celsius (oC)
Cable Length 18 Inch (in)
Signal Type Other
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Air Curtain Door Sensor Black ` Price And Quantity

Price 1000.0 INR/Piece
Minimum Order Quantity 1 Unit

Wiring Wired
Opening Gap 19 mm approx
Contact Type NO
Mounting Surface mount
Application Automatic ON/OFF
Country Origin India
Sensor Type Magnetic
Model 1L-AC101S
Control Use Air curtain automation
Polarity Non-polarized logic
Connectivity Type Wired
Housing Compact case

Air Curtain Door Sensor Black ` Product Specifications

IP Rating IP60
Response Time 0.1 Seconds
Frequency 50 Hertz (HZ)
Voltage 220 VAC Volt (v)
Signal Type Other
Material ABS Plastic
Output 220 VAC
Usage Retail showrooms, Offices & corporate entrances, Restaurants & food outlets
Warranty 1 Year
Rated Voltage 200 VDC Volt (V)
Product Type Air Curtain Sensor
Cable Type Wired
Mounting Type Surface Mount
Input 220 VAC
Accuracy 100 %
Operating Temperature -20 C to +70 C Celsius (oC)
Cable Length 18 Inch (in)
Power Consumption 4 W Watt (W)
Weight 200 Grams (g)
Function When someone enters door opens and when is it empty door will close
Sensor Type Sense Entrance
Wireless No

Wiring Wired
Opening Gap 19 mm approx
Contact Type NO
Mounting Surface mount
Application Automatic ON/OFF
Country Origin India
Sensor Type Magnetic
Model 1L-AC101S
Control Use Air curtain automation
Polarity Non-polarized logic
Connectivity Type Wired
Housing Compact case

Air Curtain Door Sensor Black ` Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Unit Per Month
Delivery Time 3 Days
Main Domestic Market All India

Product Description

The 1L-AC-101SB Air Curtain Door Sensor Black is a smart, high-accurate sensor designed to automate the functioning of air curtains installed in commercial, industrial, and retail environments. Engineered to detect the door movement with extraordinary accuracy, this device makes sure that the air curtain operates only when it is needed, by this it reducing power consumption and extending the life of your equipment.
